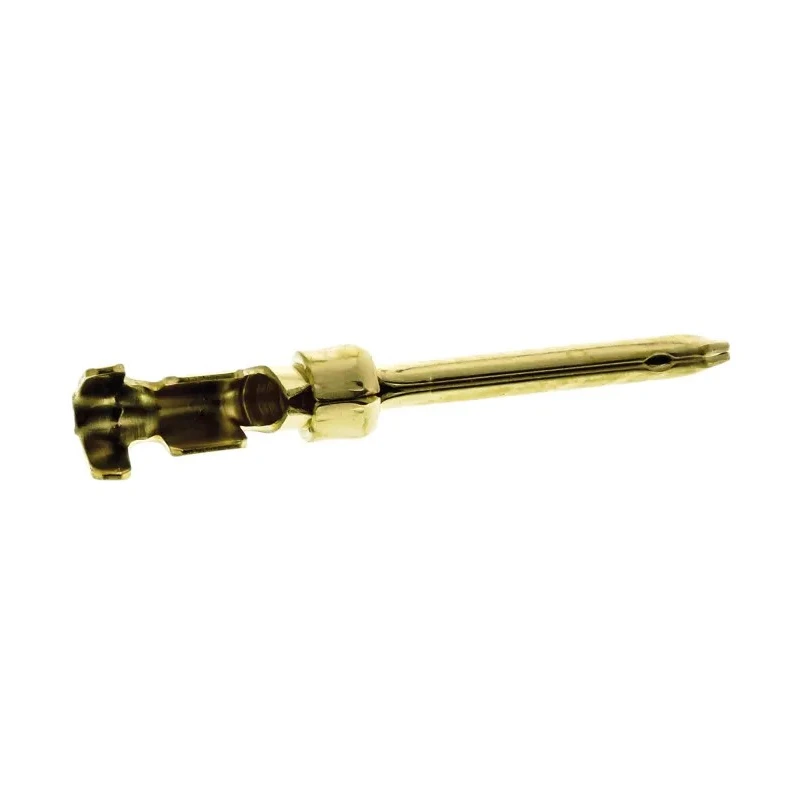

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel Signal 24 AWG 66506-9
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 2A |
| Model | 66506-9 |
| Gender | Male |
| Contact Material | Brass |
| Series | AMPLIMITE HDP-20 |
| Termination Type | Crimp |
| Contact Type | Signal |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Maximum Wire Size AWG | 24AWG |
| Contact Size | 20 |
| Maximum Contact Resistance | 15mΩ |
| • Pin diameter | 0.04 (1.02) |
Key Features
- This male contact is designed for use with AMPLIMITE HDP-20 series D-Sub connectors.
- Constructed from brass with gold plating over nickel for corrosion resistance and reliable signal transmission.
- Supports a maximum current of 2A for low-power signal applications.
- Features a contact size of 20 and crimp-type termination for secure wire connection.
- Compatible with 24 AWG wire size, ensuring precise electrical contacts.
- Pin diameter is 0.04 inches (1.02 mm) for exact mating with connectors.
- The product is manufactured in the United States, ensuring quality standards.
- Designed for industrial electronics and electrical equipment requiring secure and durable connections.
Product Description
TE Connectivity 66506-9 AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact is a high-quality connector component designed for professional electronics applications. It is part of the AMPLIMITE HDP-20 series offering reliable electrical contacts suitable for signal wiring in industrial and commercial environments.
Crafted from brass material, this contact features a gold plating over nickel which provides excellent corrosion resistance and ensures consistent electrical conductivity. The contact supports a maximum current rating of 2 amps, making it suitable for low-power signal transmission and electronic control systems.
The contact size is 20 with a pin diameter of 0.04 inches (1.02 mm), delivering a precise fit in D-Sub connectors. Its crimp termination type allows for secure attachment to 24 AWG wire, facilitating stable and efficient signal connections in wiring harness assemblies.
Manufactured in the United States, this component adheres to stringent production standards, providing dependable performance for D-Sub connector assemblies used in industrial, telecommunications, instrumentation, and computing applications.
This male contact is designed for use with AMPLIMITE HDP-20 series D-Sub connectors. Constructed from brass with gold plating over nickel for corrosion resistance and reliable signal transmission. Supports a maximum current of 2A for low-power signal applications.
Features a contact size of 20 and crimp-type termination for secure wire connection. Compatible with 24 AWG wire size, ensuring precise electrical contacts. Pin diameter is 0.04 inches (1.02 mm) for exact mating with connectors.
The product is manufactured in the United States, ensuring quality standards. Designed for industrial electronics and electrical equipment requiring secure and durable connections.
This product enhances wiring harness reliability and is ideal for use in industrial automation, electronic instrumentation, data communication, and general electronic module assembly. Its robust gold over nickel plating minimizes contact resistance and wear, ensuring long-lasting connectivity.
Explore EnvMart for a wide range of connector contacts and electronic components suitable for your industrial and laboratory requirements.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This male contact supports a maximum current of 2A, making it suitable for low-power signal applications.
It is compatible with 24 AWG wire size, ensuring precise electrical contacts for secure connections.
The pin diameter is 0.04 inches (1.02 mm), allowing for an exact fit in D-Sub connectors.
The contact is constructed from brass and features gold plating over nickel for corrosion resistance and reliable signal transmission.
This model uses a crimp termination type, providing a secure attachment to the wire.
The contact size is 20, designed specifically for use with AMPLIMITE HDP-20 series D-Sub connectors.
This contact is manufactured in the United States, adhering to stringent production standards.
The maximum contact resistance is 15mΩ, ensuring efficient signal transmission.
It is designed for use in industrial automation, electronic instrumentation, data communication, and general electronic module assembly.
The gold over nickel plating minimizes contact resistance and wear, ensuring long-lasting connectivity.
This contact is designed for signal transmission, suitable for various electronic control systems.
The minimum wire size that this contact can accommodate is 0.2 mm².
