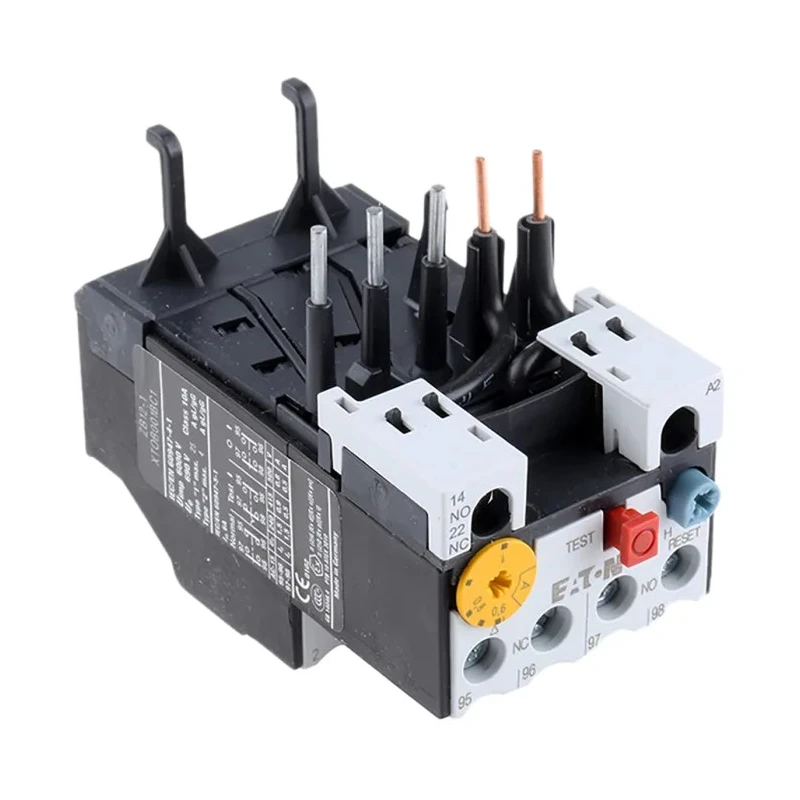

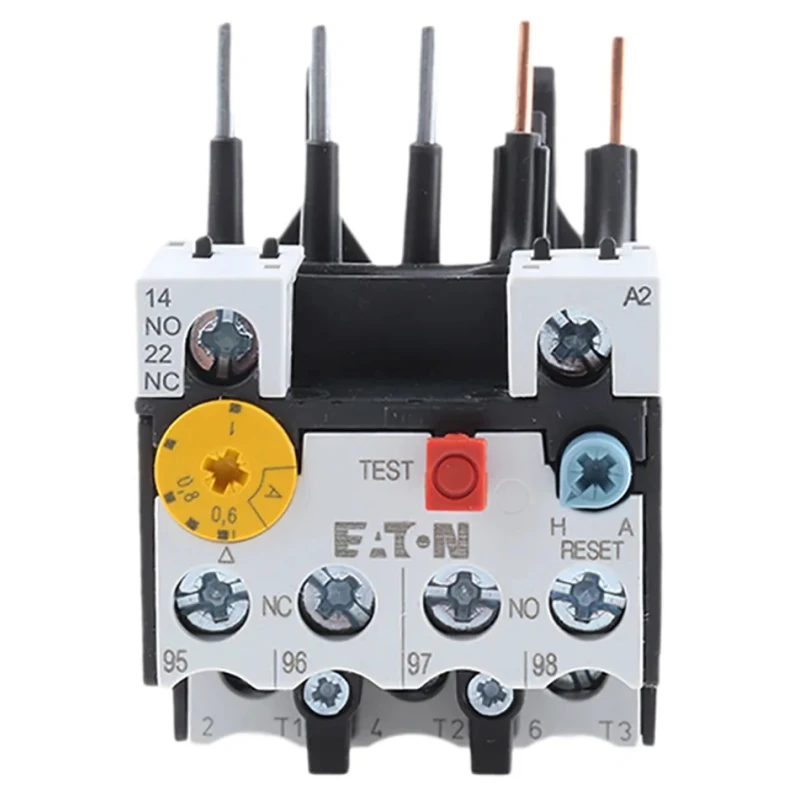

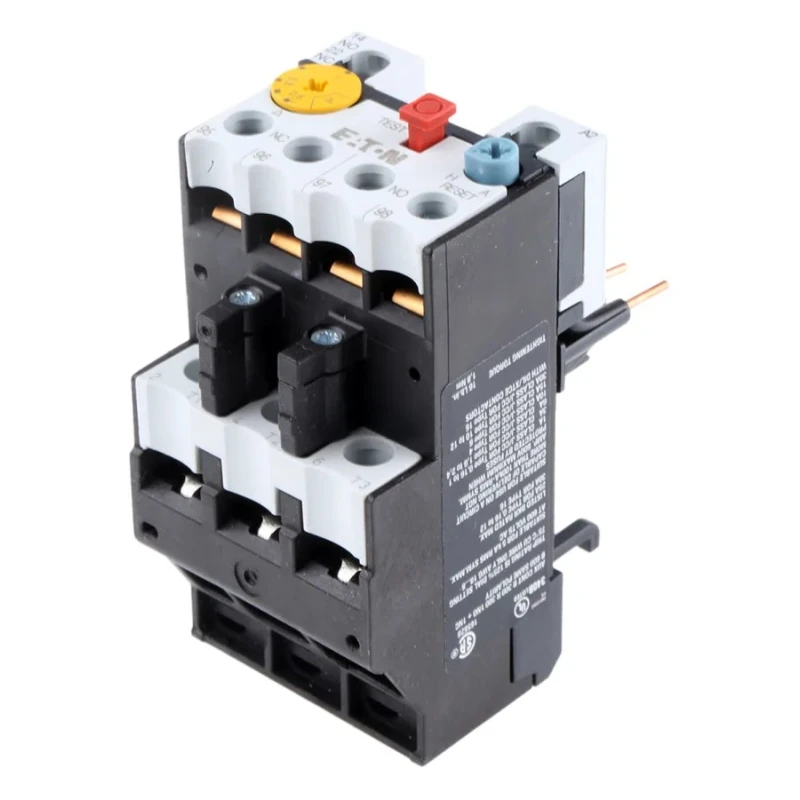

Eaton ZB Overload Relay 1 NO/1 NC, 0.6A to 1A FLC Motor Rating, 1A Contact Current, 6W Power, 500V AC Control 278435 ZB12-1
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Length | 88mm |
| Model | 278435 ZB12-1 |
| Depth | 88mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Direct |
| Series | ZB |
| Power Rating | 6W |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 1A |
| Number of Auxiliary Contacts | 2 |
| Control Voltage | 500V ac |
| FLC Motor Rating | 0.6, 1A |
| Overloadrelay,0.6-1A FLC range size 1&2Brand | Moeller |
| Cooper Bussmann 15A T Cartridge Fuse, 20 x 127mmBrand | Cooper Bussmann |
Key Features
- This overload relay features 1 normally open and 1 normally closed contact for versatile control.
- It supports automatic and manual reset methods for flexible operation.
- The relay is direct mountable and equipped with screw terminal types for secure connections.
- Operates reliably across a temperature range from -25°C to 55°C.
- Designed with an IP20 rating for protection against solid objects larger than 12mm.
- Built to industrial standards with approvals including VDE 0660, CSA, UL, IEC/EN, and CE.
- Compact dimensions of 88mm length and depth, and 45mm width facilitate easy panel integration.
- Control voltage is rated for 500V AC, suitable for various industrial applications.
Product Description
Eaton 278435 ZB12-1 is a high-quality overload relay designed for motor protection in industrial, automation, and electrical control systems. With a full load current (FLC) rating ranging from 0.6A to 1A and a contact current rating of 1A, this relay delivers reliable overload detection and protection.
It features both automatic and manual reset methods, giving operators flexibility in managing motor protection. The relay has one normally open (NO) and one normally closed (NC) contact, allowing for versatile operational configurations in control circuits.
The device supports direct mounting and is fitted with screw terminals to ensure secure and robust electrical connections. Its IP20 enclosure provides protection from solid objects greater than 12mm while being suitable for typical industrial environments. This relay operates effectively within a temperature range of -25°C to 55°C, making it reliable under diverse ambient conditions.
Compactly sized at 88mm length and depth, and 45mm width, the ZB12-1 model fits well into electrical panels and control cabinets. It is manufactured to meet stringent international standards such as VDE 0660, CSA, UL, IEC/EN, and CE approvals, ensuring performance, safety, and compliance.
Typical applications include protection of industrial motors against overload conditions, use in HVAC systems, conveyor system safety, and automation panels to avoid motor burnout and enhance operational safety.
This overload relay includes a trip-free release feature to maintain circuit integrity by preventing automatic reset during overload. It provides phase-failure sensitivity to detect and disconnect power in case of loss of phase, preventing motor damage.
Terminal capacity accommodates flexible cables with ferrules from 0.75mm² to 2.5mm² and solid conductors from 1mm² to 6mm² for adaptable installations. Overall, the Eaton 278435 ZB12-1 is engineered for dependable and efficient motor protection in diverse industrial applications.
Explore our broad range of Overload Relays and contactors at EnvMart for comprehensive solutions engineered for industrial automation and control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton ZB12-1 overload relay has a full load current (FLC) rating ranging from 0.6A to 1A.
This overload relay features 1 normally open (NO) and 1 normally closed (NC) contact, providing versatile control options.
The control voltage for this relay is rated at 500V AC, suitable for various industrial applications.
This overload relay operates effectively within a temperature range of -25°C to 55°C.
The power rating of this overload relay is 6W.
The Eaton ZB12-1 is designed for direct mounting and is equipped with screw terminals for secure connections.
This overload relay has an IP20 rating, which provides protection against solid objects larger than 12mm.
The relay supports both automatic and manual reset methods, offering flexibility in operation.
This model has compact dimensions of 88mm in length and depth, and 45mm in width.
The contact current rating for the Eaton ZB12-1 is 1A.
The Eaton ZB12-1 is manufactured to meet international standards including VDE 0660, CSA, UL, IEC/EN, and CE approvals.
The terminal capacity accommodates flexible cables with ferrules from 0.75mm² to 2.5mm² and solid conductors from 1mm² to 6mm².
