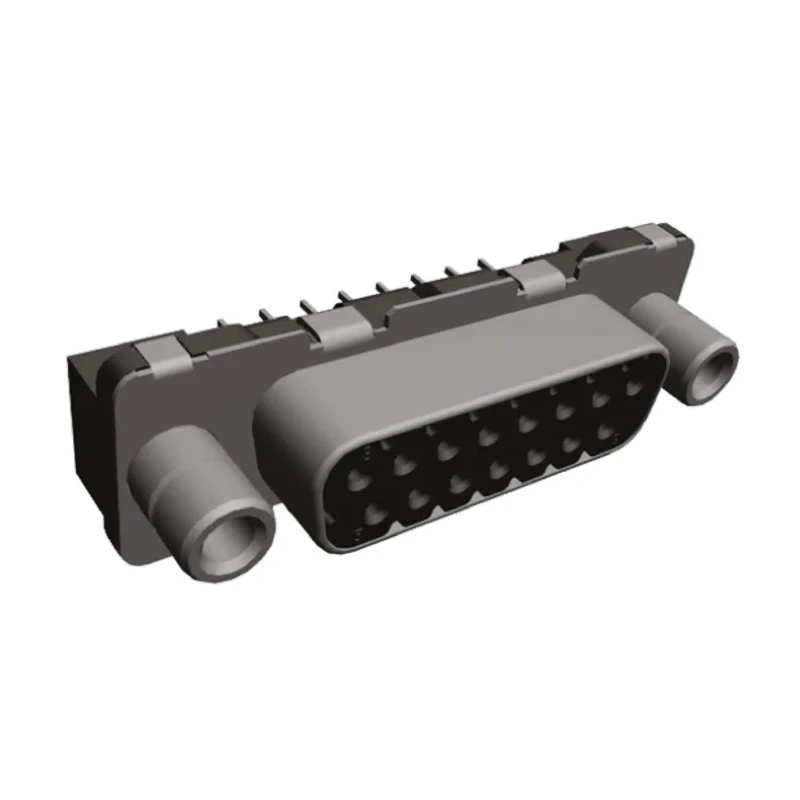

TE Connectivity AMPLIMITE HDP-20 15 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 3-338314-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HDP-20 |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- Supports 15 electrical contacts with phosphor bronze material plated gold over nickel.
- Rated for a maximum current of 6A suitable for various electrical applications.
- Features a straight orientation and through-hole mount type for PCB mounting.
- Constructed with polyethylene terephthalate housing for durability and UL 94V-0 fire resistance.
- Operates within temperature range from -55°C to 105°C for broad environmental tolerance.
- Includes 4 to 40 UNC screw lock mounting hardware for secure electrical connections.
- Termination type is solder, suitable for industrial assembly and manufacturing.
- Connector gender is female with D-Sub connector type and AMPLIMITE HDP-20 series compliance.
Product Description
TE Connectivity 3-338314-2 AMPLIMITE HDP-20 15 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector is designed for high-performance electrical interconnections in industrial and commercial applications.
This connector features 15 phosphor bronze contacts plated with gold over nickel to ensure superior electrical conductivity and corrosion resistance. The connector housing is made from black UL 94V-0 certified polyethylene terephthalate, providing flame retardant properties and mechanical durability.
It is designed for through-hole PCB mounting with a straight orientation, making it suitable for assembly in printed circuit boards requiring stable and secure connections. The connector includes 4 to 40 UNC screw lock hardware that provides a secure attachment to mating connectors, preventing accidental disconnections in rugged environments.
Operating temperature ranges from -55°C to 105°C, supporting use in a wide variety of industrial, manufacturing, instrumentation, and electronic equipment setups. Supports 15 contacts with gold plated phosphor bronze contacts for reliability.
Through-hole mounting type provides strong mechanical bonding to PCBs. Rated current of 6 amperes, suitable for moderate power applications. Durable polyethylene terephthalate housing with fire retardant rating. Solder termination type ensuring stable electrical connection.
4 to 40 UNC screw lock hardware for secure mating under vibration and stress. Supports wide operating temperature range for harsh conditions. Compatible with AMPLIMITE HDP-20 series connectors.
This D-Sub Connector is widely used in industrial automation, instrumentation, power distribution, telecommunications, and other electronics assembly applications where reliable multi-contact connections are required.
Explore more high-quality connectors and components suitable for your industrial projects and electronic assemblies at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 6A, making it suitable for moderate power applications.
It operates within a temperature range from -55°C to 105°C, allowing for use in various environmental conditions.
This model features a through-hole mount type, designed for stable and secure PCB mounting.
The housing is made from polyethylene terephthalate, while the contacts are made of phosphor bronze plated with gold over nickel for enhanced conductivity.
It supports 15 electrical contacts, providing reliable multi-contact connections for various applications.
The termination type is solder, ensuring a stable electrical connection suitable for industrial assembly.
It includes 4 to 40 UNC screw lock mounting hardware, which provides a secure attachment to mating connectors.
Yes, this connector is compatible with other connectors in the AMPLIMITE HDP-20 series.
The pitch size of the contacts is 2.74 mm, which is standard for this type of D-Sub connector.
The connector is a female D-Sub connector, designed for use with male counterparts in electrical connections.
It is suitable for industrial automation, instrumentation, power distribution, telecommunications, and other electronics assembly applications.
The housing material is UL 94V-0 certified, indicating it has fire retardant properties.
