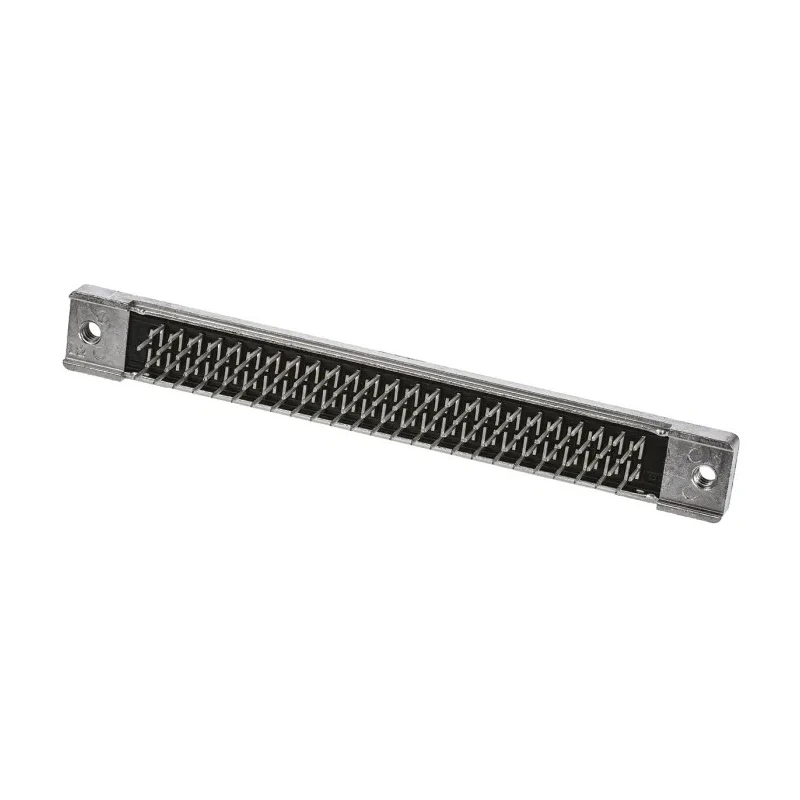

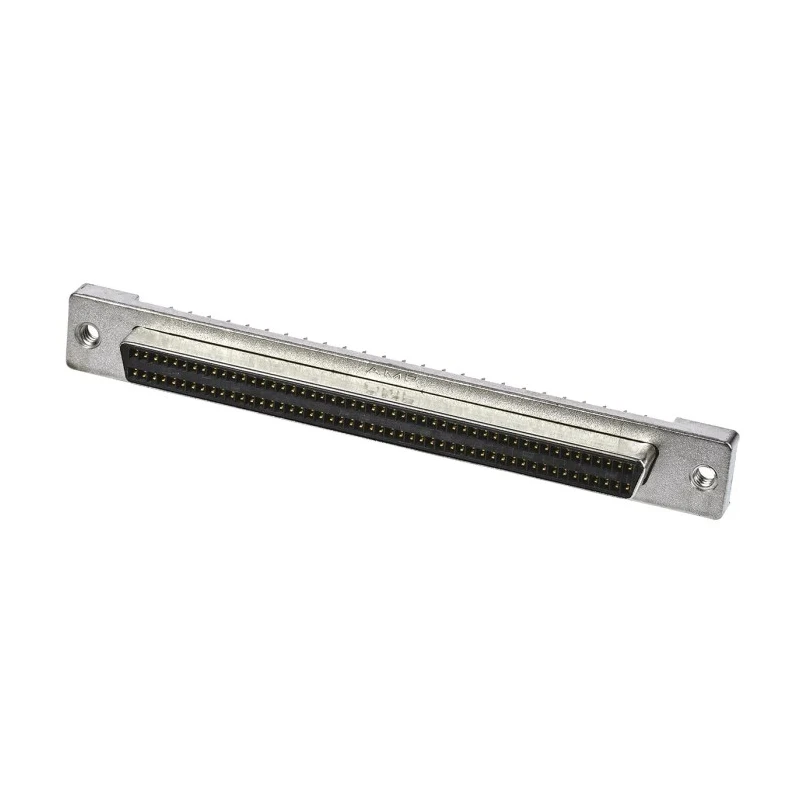

TE Connectivity AMPLIMITE .050 III 100 Way Straight 2.54 mm Pitch Through Hole D-Sub Connector Female 5749070-9

TE Connectivity 5749070-9 AMPLIMITE .050 III 100 Way Straight Through Hole D-Sub Connector Female is engineered for high density and space-saving PCB applications. This connector features a compact design with 100 contacts at a 2.54 mm pitch spacing, making it ideal for demanding electronics manufacturing environments requiring reliable data and signal transmission.

The housing is manufactured from a high temperature thermoplastic material, allowing compatibility with surface mount reflow soldering while providing durability and resistance to heat. The connector features a full metallic shield that offers excellent EMI and RFI protection, essential in industrial, telecommunications, and military settings.

The AMPLIMITE .050 Series III D-Sub Connector comes with integral board locks that secure the connection to the PCB and enable grounding, thus enhancing signal integrity. Contact materials consist of phosphor bronze alloy, plated with gold over nickel to ensure exceptional conductivity and corrosion resistance over the product lifetime.

Suitable for currents up to 1A and operating voltages of 30V, this connector arrangement supports a wide range of electronic and communication equipment applications, including local area networks, commercial and medical devices, and industrial control systems. The specified operating temperature range is from -55°C to 105°C, ensuring reliable operation under harsh environmental conditions.

The connector's solder termination type facilitates robust through-hole PCB mounting, with assured mechanical stability and long-lasting electrical contact. Compliance with multiple industrial standards such as SCSI-2 and EIA RS-232 further substantiates its application versatility.

Compact, space-saving AMPLIMITE .050 Series III design. Full EMI/RFI shielding for signal integrity. High temperature thermoplastic housing suitable for reflow soldering. Integral board locks ensure secure PCB mounting and grounding.

Phosphor bronze contacts with gold over nickel plating provide durability and conductivity. 100 contacts with 2.54 mm pitch support dense interconnections. Operating temperature range from -55°C to 105°C for harsh environments.

Rated for 1A current and 30V voltage applications. Ideal for industrial, telecommunications, military, medical, and commercial use cases. Explore the Electronics & Electricals category on EnvMart for more advanced connectors and PCB components from TE Connectivity and other leading brands.
