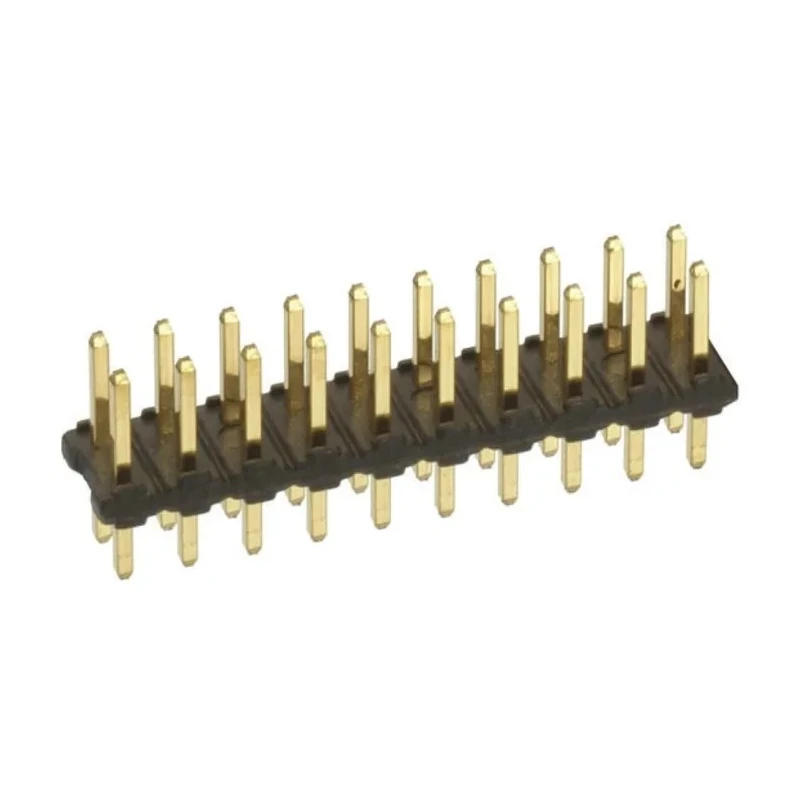

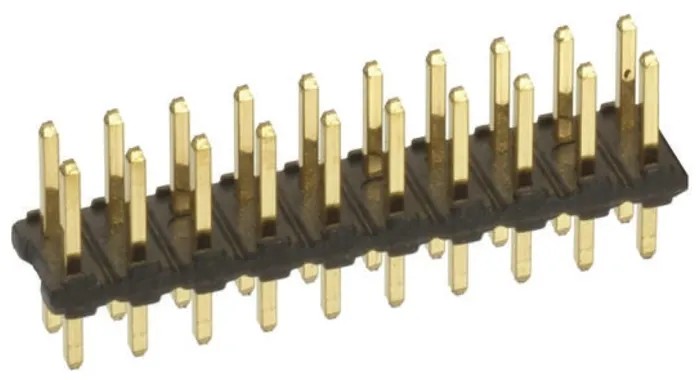

Amphenol Communications Solutions Bergstik Series Straight Through Hole Pin Header, 12 Contacts, 2.54 mm 77313-101-12LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1.5kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | 77313-101-12LF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | CHINA RoHS, EU RoHS, REACH/SvHC |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.41mm |
| Mating Pin Length | 5.84mm |
Key Features
- The pin header supports up to 3A current, suitable for various electronic applications.
- Constructed with thermoplastic housing compatible with reflow solder processes.
- Unshrouded straight orientation enables versatile board-to-board and wire-to-board connections.
- Features solder termination type with male contact gender and tail pin length of 2.41mm.
- Operates reliably between -65°C and 130°C operating temperature range.
- Complies with CHINA RoHS, EU RoHS, and REACH/SvHC standards for environmental safety.
- Designed and manufactured in France to high industrial quality standards.
- The product is versatile, allowing cutting to length for customized PCB designs.
Product Description
Amphenol Communications Solutions 77313-101-12LF Bergstik Series Straight Through Hole Pin Header is engineered for high-quality PCB connection solutions with 12 contacts spaced at a 2.54 mm pitch arranged over 2 rows. This component uses gold plated phosphor bronze contacts that ensure excellent conductivity and corrosion resistance.
The header is housed in a thermoplastic casing compatible with reflow soldering, enabling efficient and durable mounting. Its unshrouded and straight orientation makes it adaptable for both board-to-board and wire-to-board applications in industrial, electronic manufacturing, and communications equipment.
With a current rating of 3A and a voltage rating of 1.5kV, this pin header supports demanding operational conditions with a broad temperature range from -65°C to 130°C. The male contacts feature a tail pin length of 2.41mm, designed for through-hole mounting.
This Bergstik pin header series complies with CHINA RoHS, EU RoHS, and REACH/SvHC standards, ensuring environmental compliance and safety in various production environments. Manufactured in France, it reflects stringent quality control and reliability.
Applications for this component include industrial electronics, communication systems, control modules, and various PCB assemblies requiring robust and precise header connections. The product is versatile, allowing cutting to length for customized PCB designs.
The housing material withstands high-temperature soldering without degradation. Stand offs help minimize solder contamination ensuring clean assembly processes. The header mates with an extensive range of female connectors such as Dubox series receptacles and Quickie IDC connectors.
Its cost-effective duplex plating offers an economical solution without compromising performance.
Choose Amphenol Communications Solutions Bergstik 77313-101-12LF for superior PCB connectivity engineered to meet strict industrial standards. Explore more components in PCB Headers to complete your electronic assemblies at EnvMart.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A, making it suitable for various electronic applications.
The pin header has a voltage rating of 1.5kV, allowing it to operate effectively in demanding conditions.
It operates reliably within a temperature range of -65°C to 130°C.
This unit features a solder termination type, designed for through-hole mounting.
The contacts are made of gold plated phosphor bronze, while the housing is constructed from thermoplastic material.
This model has 12 contacts arranged over 2 rows with a pitch of 2.54 mm.
The tail pin length is 2.41 mm, designed for secure mounting in PCBs.
Yes, it complies with CHINA RoHS, EU RoHS, and REACH/SvHC standards for environmental safety.
It is designed for both board-to-board and wire-to-board connections, making it versatile for various applications.
This model is designed and manufactured in France, adhering to high industrial quality standards.
The pin header features a straight orientation, which allows for flexible installation options.
It is suitable for industrial electronics, communication systems, control modules, and various PCB assemblies.
