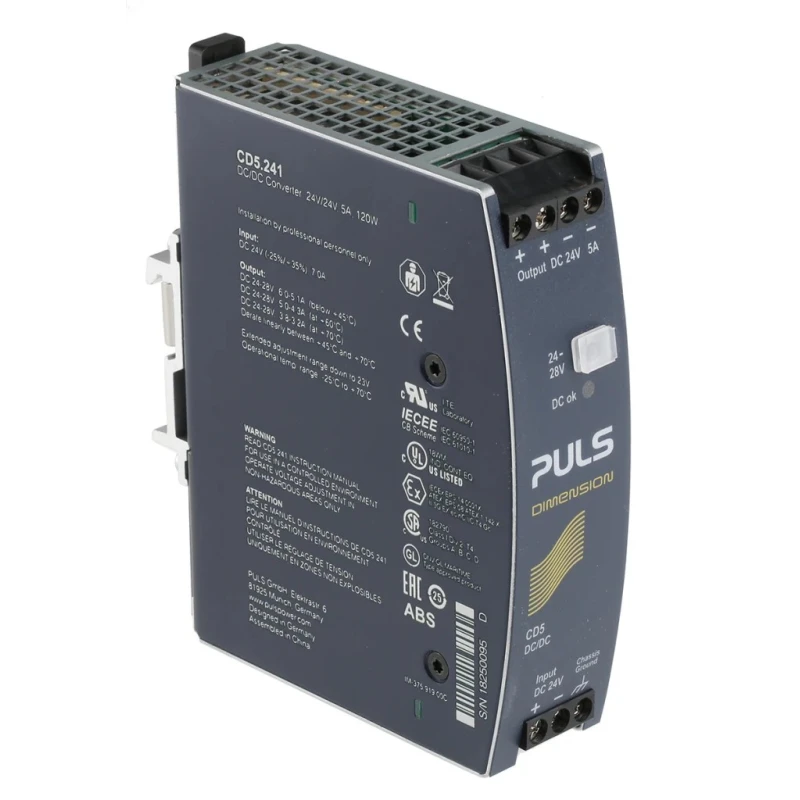

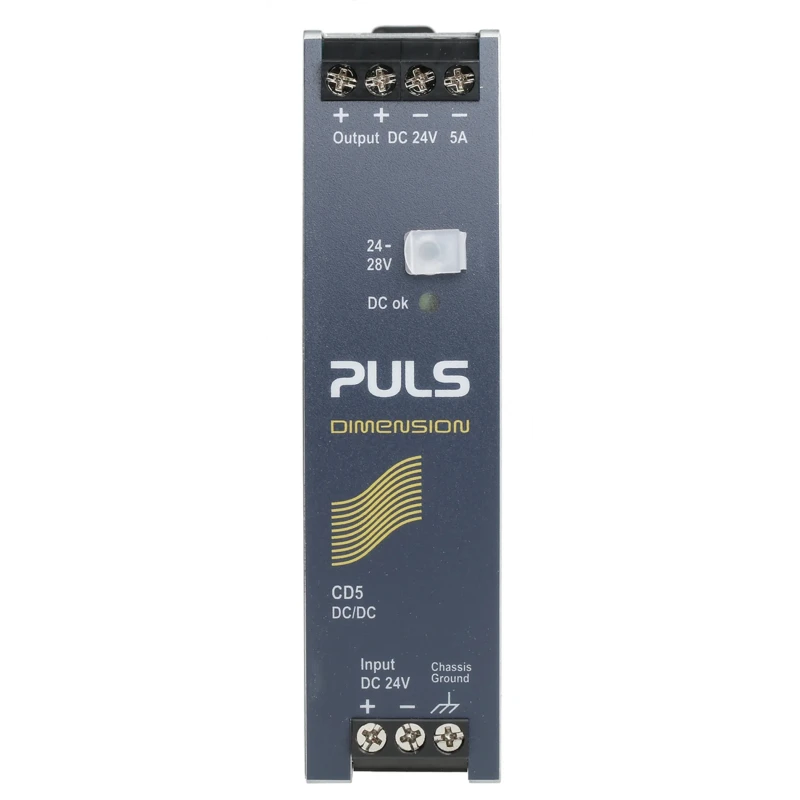

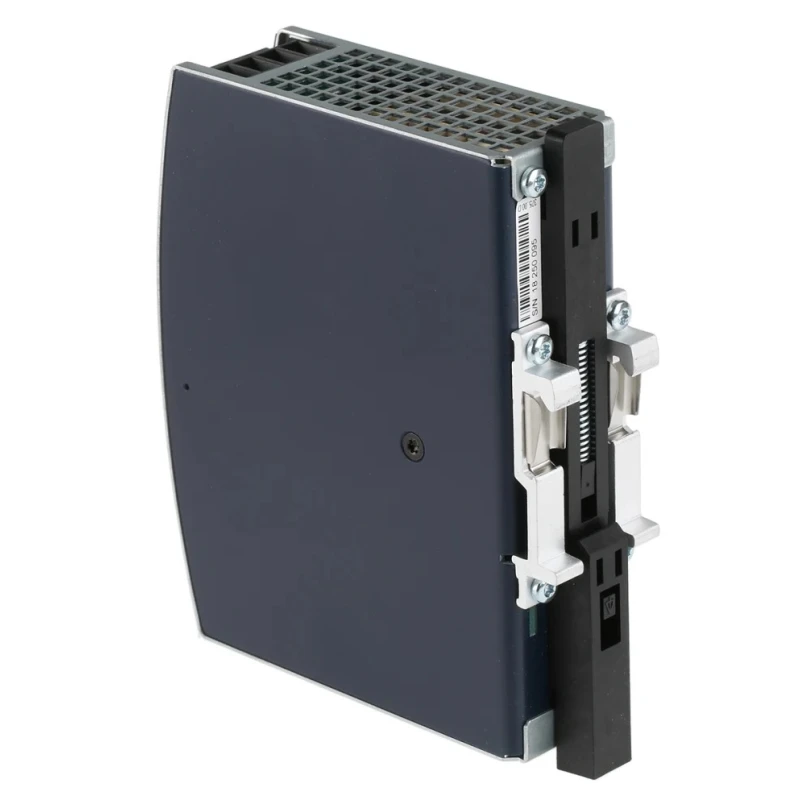

PULS DIMENSION-CD DC/DC Converter, 24V DC Output 5 A, 32.4V DC Input, DIN Rail Mount, 120 W, Max Temp 70 °C CD5.241

PULS CD5.241 DC/DC Converter delivers 24V DC output at 5 A with a maximum power capacity of 120 W. Built for industrial applications, this converter supports a stable input voltage range from 24 to 32.4 V DC and is designed to be mounted easily on a DIN rail for integration in electrical panels.

Featuring a high efficiency of 90.5%, the device minimizes energy losses and heat generation. The output is galvanically isolated from the input with a 500V DC isolation voltage, offering enhanced safety and reduced interference.

The converter maintains low ripple and noise levels (50mV Pk-Pk) to ensure consistent power quality. Its output voltage can be adjusted between 24 and 28 volts to suit specific system requirements. The unit is rated for operation in ambient temperatures up to 70 °C, supporting use in harsh industrial environments.

Compact and robust, it measures 124mm in length, 32mm in width, and 102mm in depth, with a gross weight of 425g. Compliant with RoHS environmental regulations, this product is manufactured in the Czech Republic under the DIMENSION-CD series.

Output power of 120W with 5A current capacity. Input voltage flexibility between 24V and 32.4V DC. DIN Rail mounting for easy installation. High conversion efficiency at 90.5%. 500V DC isolation voltage for safety. Low ripple output ensuring stable performance.

Adjustable output voltage range from 24 to 28 V. Operating temperature rating up to 70°C. Compact size with low weight for panel integration. RoHS compliant for environmental safety.

This DC/DC Converter is suitable for multiple industrial applications including automotive systems, machine building, material handling, and building automation. Its robust design and reliable performance make it ideal for power supply solutions requiring efficient and safe DC voltage conversion. Explore more PULS dimension series power supplies at EnvMart for comprehensive industrial power management.
