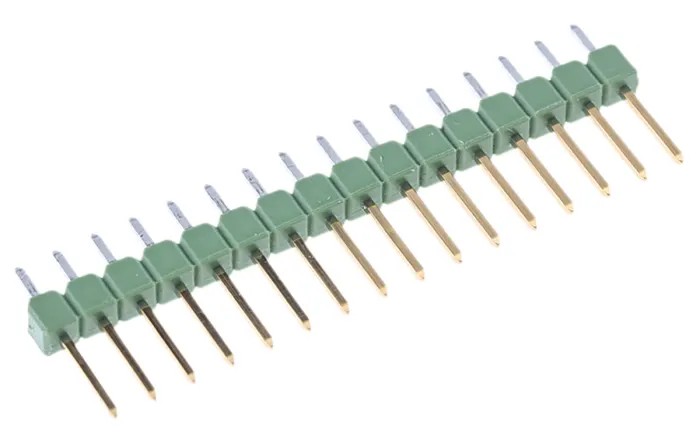

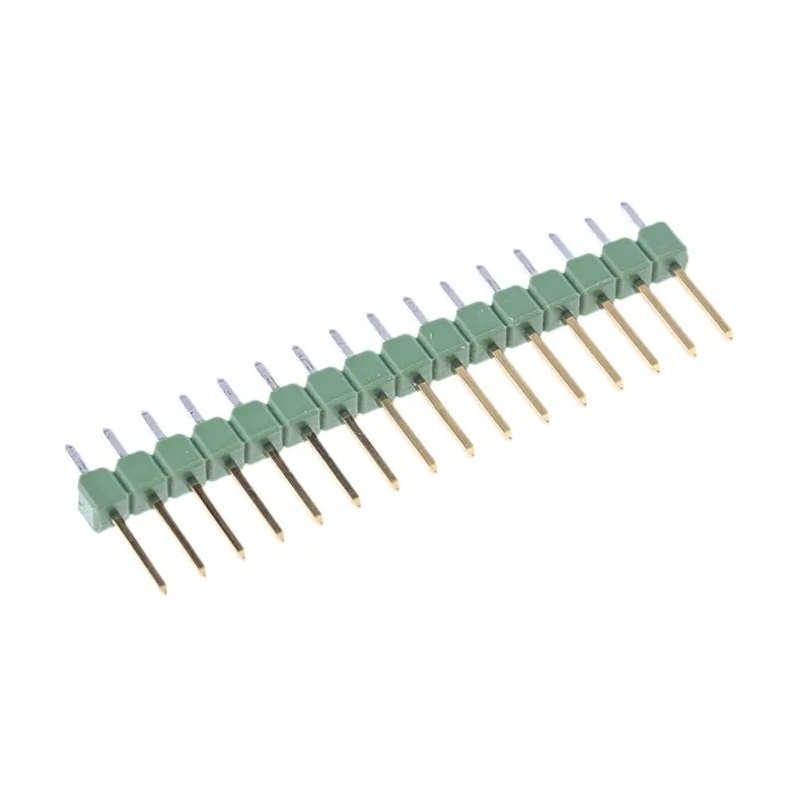

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header 16 Contacts 2.54 mm Pitch 1 Row Unshrouded 1-826629-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- This pin header features a straight orientation, ideal for board-to-board and wire-to-board connections.
- The contacts are made of brass and plated with gold for reliable conductivity.
- Its polyester housing ensures durability under various operating conditions.
- Suitable for applications with current ratings up to 3A and voltage ratings up to 750V.
- Designed to operate reliably between -65°C and 105°C.
- Through hole mount type facilitates secure soldering on PCBs.
- Contact configuration is male with tail pin length of 3.2 mm and mating pin length of 6.7 mm.
Product Description
TE Connectivity 1-826629-6 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality electrical connector designed for PCB applications requiring a compact and efficient interconnect solution. This pin header features 16 male contacts arranged in a single row with a 2.54 mm pitch, fulfilling versatile application requirements.
The unshrouded design allows easy access for soldering and facilitates use in board-to-board as well as wire-to-board connector systems. Constructed with a durable polyester housing and brass contact material plated with gold, the product guarantees excellent electrical performance and corrosion resistance.
Rated for 3A current and 750V voltage, it supports demanding industrial, automotive, telecommunications, and medical instrumentation applications. Operating temperature ranges from -65°C to 105°C, making it suitable for a wide range of environments and conditions.
The through hole mount type ensures robust mechanical stability and ease of assembly on printed circuit boards. Each pin header can be broken down to the desired size, providing flexibility and time-saving installation by allowing all solder posts to be installed simultaneously.
This pin header has a straight orientation with 16 contacts for reliable electrical connections. Gold-plated brass contacts ensure superior conductivity and durability. Polyester housing provides insulation and mechanical strength.
Supports currents up to 3A and voltages up to 750V. Wide operating temperature range from -65°C to 105°C for diverse applications. Designed for through hole solder termination enabling secure mounting on PCBs. Applicable in automotive, industrial, test equipment, computing, telecommunications, medical instruments, and appliance industries.
The AMPMODU Interconnect System, to which this product belongs, is renowned for reliable signal standard solutions in automation and control systems. It includes board-to-board, wire-to-board, and wire-to-wire connectors with compact design, suitable for varied industrial use cases, enhancing system integration and manufacturing efficiency.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header has a voltage rating of 750V.
It supports a current rating of up to 3A.
The pitch size of the contacts is 2.54 mm.
The contacts are made of brass and are plated with gold, while the housing is constructed from polyester.
It operates reliably between -65°C and 105°C.
This model features 16 male contacts arranged in a single row.
It uses a through hole mount type for secure soldering on PCBs.
The tail pin length is 3.2 mm.
The mating pin length is 6.7 mm.
It is suitable for automotive, industrial, telecommunications, medical instrumentation, and appliance applications.
This pin header is unshrouded, allowing easy access for soldering.
It supports board-to-board and wire-to-board connector systems.
