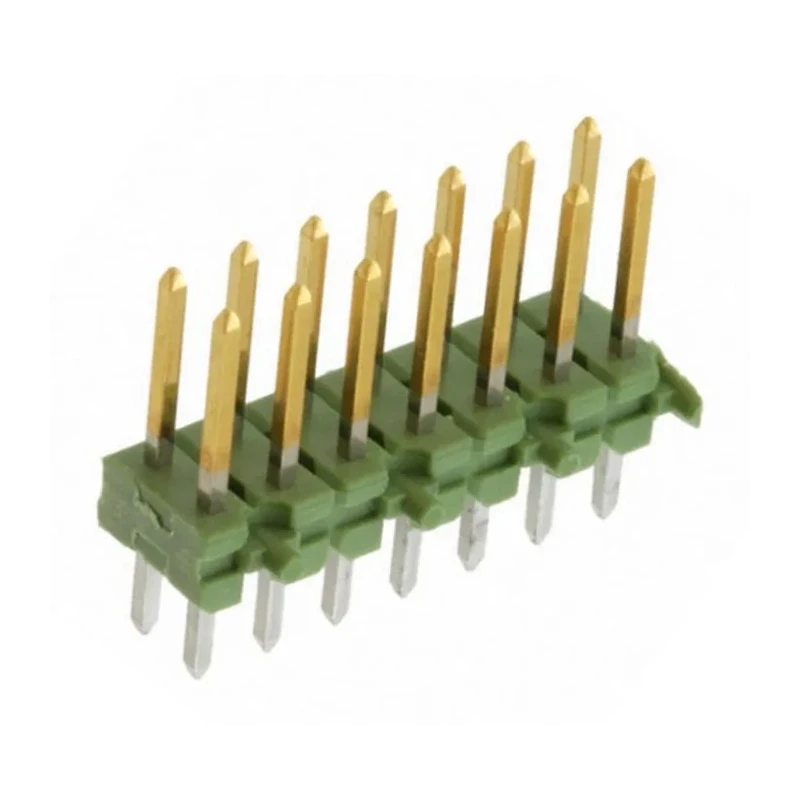

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header 14 Contact, 2.54 mm Pitch, 2 Row, Unshrouded 825440-7
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 825440-7 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- The connector features a straight orientation for through-hole mounting.
- Constructed of polybutylene terephthalate housing material for durability.
- Brass contacts plated with gold ensure reliable electrical performance.
- Suitable for operation between -65°C and 105°C temperature range.
- Supports maximum voltage of 750 V and current rating of 3 A.
- Mating pin length is 6.7 mm with tail pin length of 3.2 mm.
- Unshrouded design facilitates board-to-board and wire-to-board connector systems.
- Versatile breakaway pin header can be sized as required to suit different applications.
Product Description
TE Connectivity 825440-7 AMPMODU MOD II Series Straight Through Hole Pin Header delivers 14 contacts in a 2-row, 2.54 mm pitch configuration constructed for reliable electrical connections in demanding industrial, automotive, and telecommunication applications. This unshrouded male pin header provides straightforward installation with its through-hole mount and solder termination type, ensuring strong mechanical and electrical bond to the PCB.
Crafted with a polybutylene terephthalate housing, the header offers robust insulation while its brass contacts plated with gold guarantee low contact resistance and corrosion resistance, crucial for long-term performance. The component is capable of handling currents up to 3 A and voltages as high as 750 V, performing reliably in environments ranging from -65°C to 105°C.
Designed as a versatile breakaway header, it can be separated to the desired number of pins, saving assembly time and increasing design flexibility. Its straight orientation suits both board-to-board and wire-to-board connector systems making it adaptable for diverse electronic assemblies.
Typical applications for this pin header include automotive control modules, industrial test equipment, telecommunications gear, medical devices, and data storage units where dependable interconnectivity is paramount.
The connector features a straight orientation for through-hole mounting. Brass contacts plated with gold enhance conductivity and reliability. Polybutylene terephthalate housing provides durable insulation. Supports operating temperatures from -65°C to 105°C.
Maximum voltage rating of 750 V for safe operation under load. Current carrying capacity of 3 A. Tail pin length of 3.2 mm and mating pin length of 6.7 mm. Unshrouded, breakaway design allows flexible sizing. Suitable for board-to-board and wire-to-board connection systems.
Ideal for industrial, automotive, medical, and telecommunication applications. Explore more PCB connectors at EnvMart for your industrial and electronic assembly needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 750 V, ensuring safe operation under load.
This model has a current carrying capacity of 3 A, making it suitable for various applications.
It operates within a temperature range of -65°C to 105°C, allowing for use in diverse environments.
This pin header features 14 contacts arranged in 2 rows, providing multiple connection points.
The housing is made of polybutylene terephthalate, while the contacts are brass plated with gold for enhanced conductivity.
The pitch size of this pin header is 2.54 mm, which is standard for many electronic applications.
This connector uses a through-hole mounting type, facilitating easy installation on PCBs.
The mating pin length is 6.7 mm, while the tail pin length is 3.2 mm, allowing for secure connections.
This model uses a solder termination type, ensuring a strong mechanical and electrical bond to the PCB.
Yes, it is designed for both board-to-board and wire-to-board connector systems, providing versatility in applications.
This pin header belongs to the AMPMODU MOD II series, known for reliable electrical connections in various applications.
The country of origin for this pin header is India, indicating its manufacturing location.
