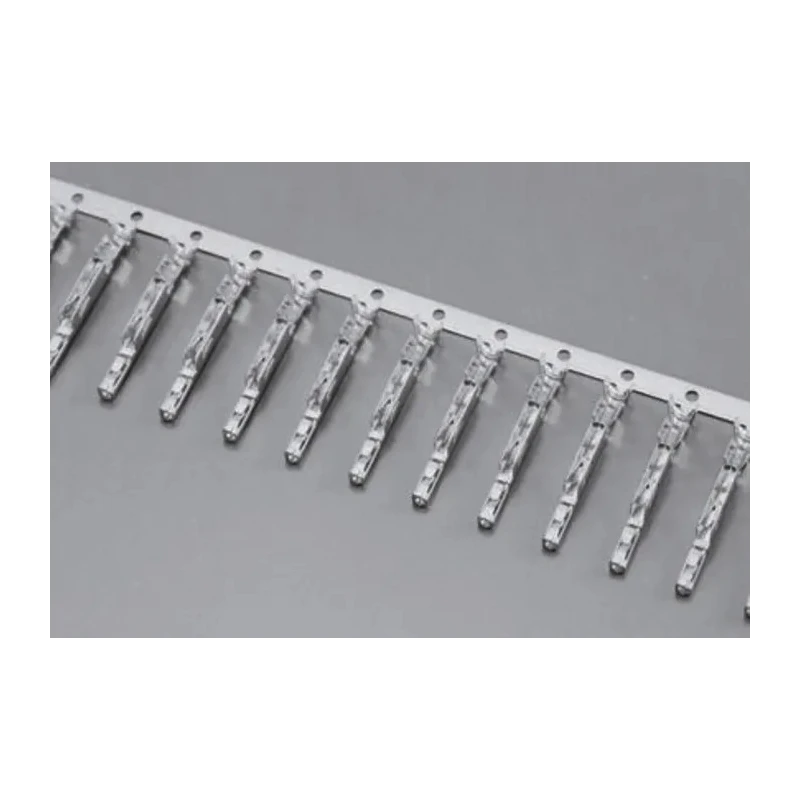

JAE Female Crimp Terminal for IL-AG5 Connector Housing, 22 AWG Min, 18 AWG Max, 11A Current, Tin Plating IL-AG5-C1-5000
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JAE |
| Current | 11A |
| Model | IL-AG5-C1-5000 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | IL-AG5 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| For Use With | IL-AG5 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.85mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Female gender crimp terminal compatible with IL-AG5 series connectors.
- Suitable for minimum wire size of 22 AWG (0.3 mm²) and maximum 18 AWG (0.85 mm²).
- Constructed with phosphor bronze contact material for reliable conductivity.
- Contact surfaces plated with tin to prevent corrosion.
- Supports a maximum contact resistance of 10 milliohms ensuring low signal loss.
- Operates within temperature range of -40°C to 85°C for versatility in environments.
- Crimp termination type provides secure and stable electrical connections.
- Manufactured in Japan ensuring high quality standards.
Product Description
JAE IL-AG5-C1-5000 is a female crimp terminal specifically engineered for use with IL-AG5 connector housings. It supports electrical currents up to 11 amperes and accommodates wire sizes from 22 AWG (0.3 mm²) minimum to 18 AWG (0.85 mm²) maximum. The contact material is phosphor bronze, known for its excellent electrical and mechanical properties, and it features tin plating on the contact surfaces to enhance corrosion resistance and maintain reliable connectivity over time.
This crimp terminal offers a maximum contact resistance of 10 milliohms, ensuring minimal resistance and loss during signal transmission. It is designed for crimp-type termination providing firm mechanical and electrical connections, widely used in electronics manufacturing and assembly.
Operating temperature ranges from -40°C to 85°C make this terminal suitable for various industrial, automotive, and electronics applications requiring durable and stable electrical connections under different environmental conditions.
The product is manufactured in Japan, reflecting high-quality standards expected in professional electronics component applications. It serves vital roles in electronic component assemblies, PCB connectors, wire harnesses, and other electrical distribution systems.
JAE IL-AG5 series terminals are commonly applied in industrial electronics, telecommunications, automotive wiring, and other manufacturing sectors where secure and reliable crimp connections are required.
Female gender crimp terminal compatible with IL-AG5 series connectors. Suitable for minimum wire size of 22 AWG (0.3 mm²) and maximum 18 AWG (0.85 mm²). Constructed with phosphor bronze contact material for reliable conductivity.
Contact surfaces plated with tin to prevent corrosion. Supports a maximum contact resistance of 10 milliohms ensuring low signal loss. Operates within temperature range of -40°C to 85°C for versatility in environments. Crimp termination type provides secure and stable electrical connections.
Manufactured in Japan ensuring high quality standards. Explore EnvMart’s comprehensive catalog for more JAE connectors and electronic component solutions designed for industrial and electronics manufacturing sectors.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a maximum current rating of 11 amperes.
It accommodates wire sizes from 22 AWG (0.3 mm²) minimum to 18 AWG (0.85 mm²) maximum.
The contact material is phosphor bronze, known for its excellent electrical and mechanical properties.
It utilizes a crimp termination type, providing secure and stable electrical connections.
It supports a maximum contact resistance of 10 milliohms, ensuring low signal loss during transmission.
The operating temperature range is from -40°C to 85°C, making it suitable for various environments.
This terminal is manufactured in Japan, reflecting high-quality standards.
It is specifically designed for use with IL-AG5 connector housings.
The contact surfaces are plated with tin to enhance corrosion resistance and maintain reliable connectivity.
This terminal is commonly applied in industrial electronics, telecommunications, and automotive wiring.
Specific dimensions and weight details are not provided in the available data.
Specific maintenance or calibration requirements are not mentioned in the provided information.
