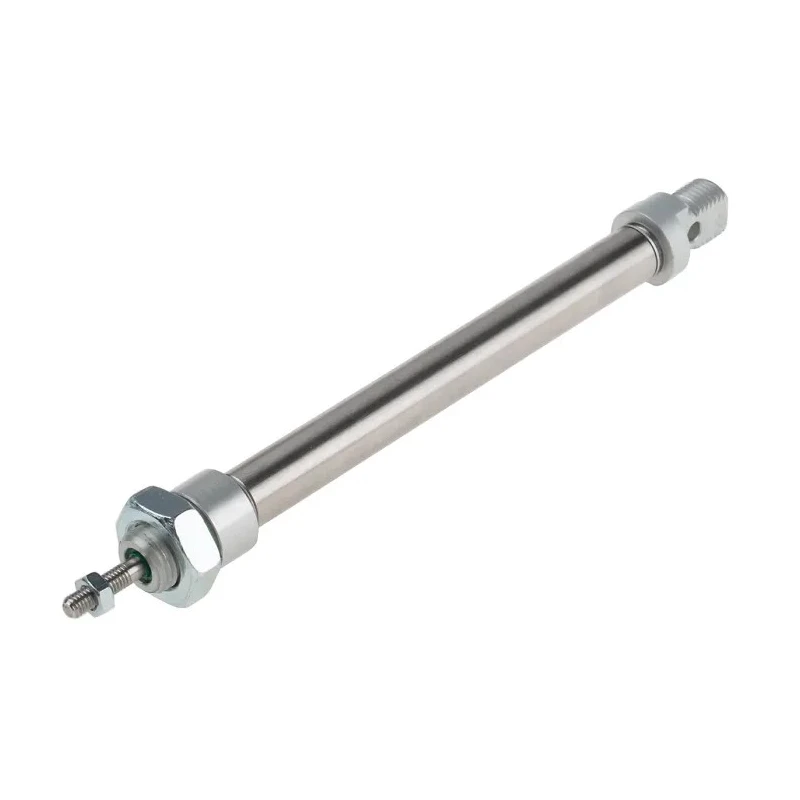

RS PRO Pneumatic Piston Rod Cylinder 10mm Bore, 80mm Stroke, ISO 6432 Series, Double Acting 304-3432

RS PRO 304-3432 Pneumatic Piston Rod Cylinder is a high-quality industrial actuator designed for pneumatic applications requiring precision and durability. Featuring a 10mm bore diameter and an 80mm stroke, this cylinder conforms to the ISO 6432 series, widely recognized for compact pneumatic cylinders.

The cylinder is double acting, providing controlled movement in both extension and retraction strokes with efficient buffering using buffer type cushioning. It offers a maximum operating pressure of 10 bar and operates reliably in ambient temperatures ranging from -20°C to +80°C.

Constructed from AISI 304 stainless steel, the cylinder body is corrosion resistant, making it suitable for harsh environments. The piston rod is made from AISI 303 stainless steel and has a female thread size of M12 x 1.25 metric standard for versatile mounting options. This combination ensures strength and longevity in demanding industrial conditions.

The cylinder includes a sintered bronze nose bearing and pre-lubricated NBR seals that contribute to smooth operation and reduced maintenance requirements. It is engineered for use with compressed air mediums, whether filtered, lubricated, or non-lubricated, enhancing its flexibility in pneumatic systems.

Designed according to RoHS standards and manufactured in Italy, this RS PRO cylinder offers assured quality and compliance with environmental regulations. The package includes both nose and piston rod nuts for easy installation.

Constructed with AISI 304 stainless steel body for durability. Features AISI 303 stainless steel piston rod with female thread M12 x 1.25 metric standard. Buffer type cushioning ensures smooth operation at stroke ends. Designed for operating pressure up to 10 bar and temperatures from -20°C to 80°C.

Suitable for use with filtered, lubricated or non-lubricated compressed air mediums. Includes sintered bronze nose bearing and pre-lubricated NBR seals for enhanced performance. ISO 6432 standard ensures interchangeability and consistent quality.

Supplied with nose nut and piston rod nut for installation convenience.

This pneumatic piston rod cylinder is ideal for industrial automation, manufacturing equipment, fluid power systems, and other pneumatic machinery applications requiring precise and reliable actuation. Explore more products in the Pneumatic Piston Rod Cylinders category at EnvMart.
