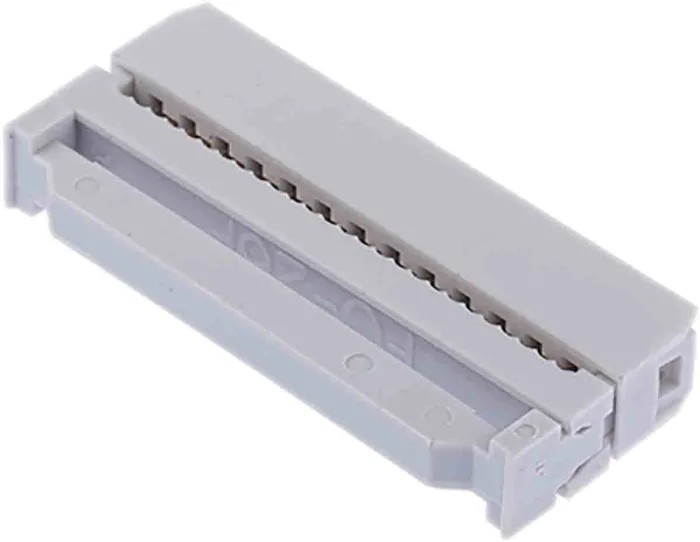

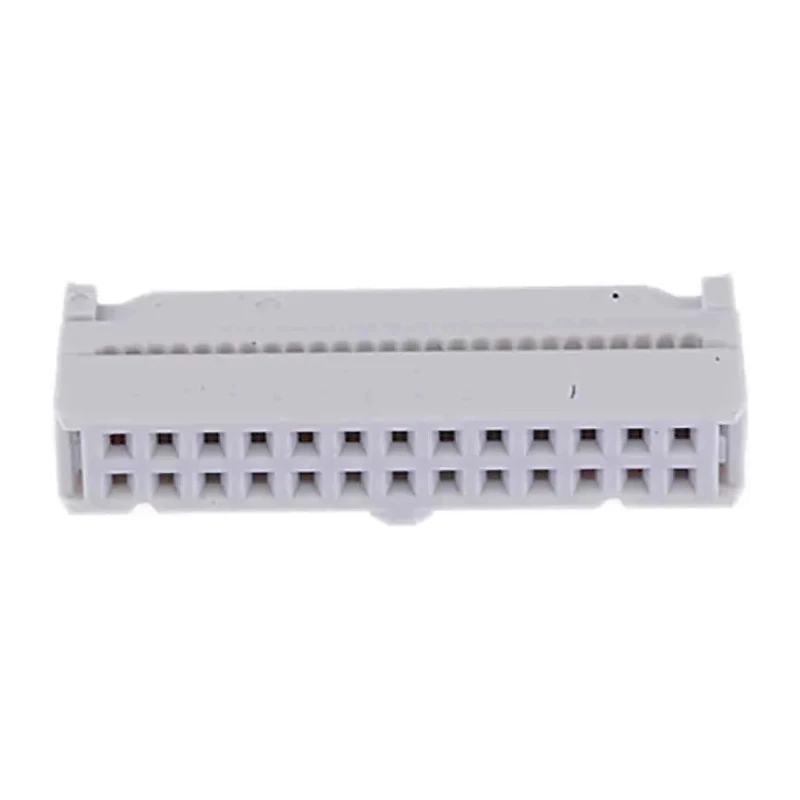

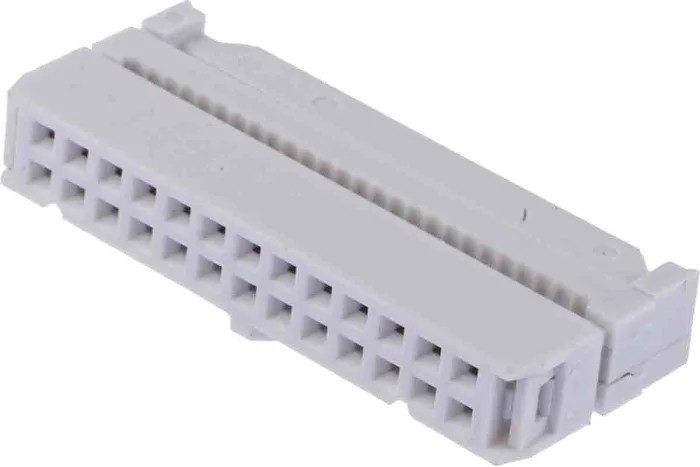

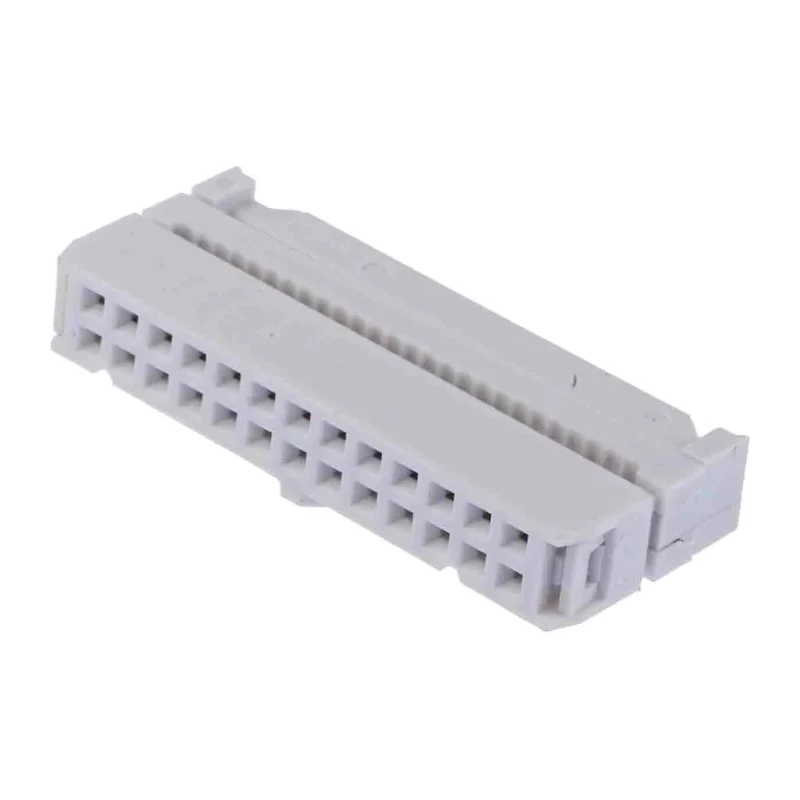

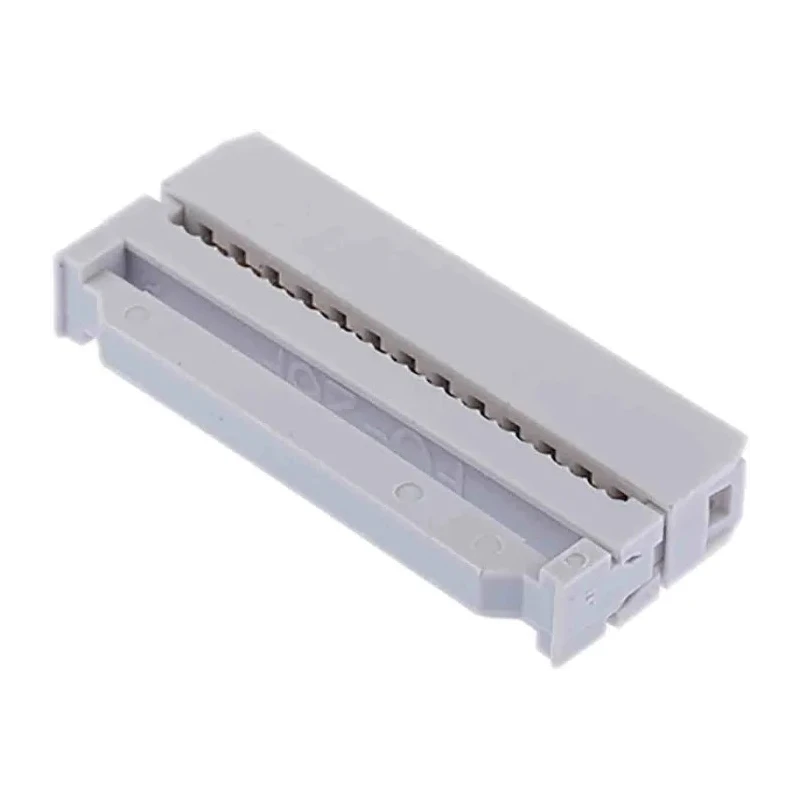

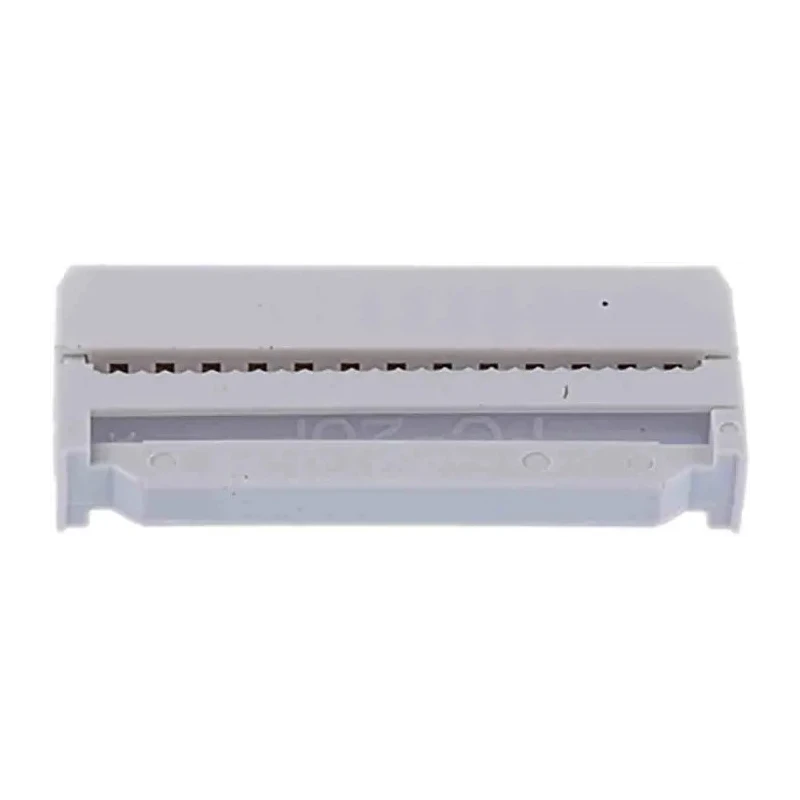

RS PRO 26-Way IDC Connector Female for Cable, 2 Row, 1A Current, 500V, Gold over Nickel Plating 625-7404
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 1A |
| Model | 625-7404 |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| 3M 26-Way IDC Connector Socket for Cable Mount, 2-RowBrand | 3M |
Key Features
- The connector supports a current rating of 1A and voltage of 500V.
- It features a shrouded, right-angle design with two rows and 26 contacts.
- Contacts are made from phosphor bronze with gold plated over nickel for enhanced conductivity and corrosion resistance.
- The housing is constructed from durable polybutylene terephthalate material for mechanical strength.
- Operating temperature ranges from -55°C to 105°C, ensuring performance in harsh environments.
- It utilizes insulation displacement termination, allowing quick cable connection without soldering.
- Central bump polarization and double depth grooves ensure reliable mating and strain relief.
- Ideal for use with flat ribbon cables in computers, communications, and other electronic devices.
Product Description
RS PRO 625-7404 is a 26-Way IDC Connector Female designed for cable mounting with a 2-row configuration. This connector features a shrouded housing made from polybutylene terephthalate, providing robust mechanical protection and electrical insulation.
With a current rating of 1A and voltage rating of 500V, it is suitable for low voltage power and signal applications in industrial, electronics, and computer assembly environments. The contact materials consist of phosphor bronze with a gold over nickel plating to enhance conductivity and corrosion resistance.
The design incorporates insulation displacement contact (IDC) termination, which allows for fast and reliable wire termination without the need for soldering or specialized tooling. The connector includes a central bump polarization and double depth polarizing grooves in the socket body, ensuring correct key alignment and secure mating.
Its operating temperature ranges from -55°C to 105°C, making it versatile for use in a variety of environments ranging from industrial controls to telecommunications.
This right-angle, cable mount connector supports a cable pitch of 1.27mm and features strain relief to protect cable integrity during use. Common applications include connecting ribbon cables inside computers, drives, phones, laptops, and various electronic devices that require durable wire-to-board connections.
The connector's shrouded design avoids accidental shorts and mechanical damage. Gold over nickel plating on contacts ensures reliable electrical connection over time. Phosphor bronze contacts provide excellent mechanical and electrical properties.
Polybutylene terephthalate housing provides excellent chemical and heat resistance. Made in Taiwan, Province of China, ensuring quality manufacturing standards.
RS PRO brand is trusted for dependable electronic components and connectors, suitable for industrial and commercial electronic assembly tasks. Explore more RS PRO connectors and related electronic components at EnvMart for all your wiring and PCB connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 1A and a voltage rating of 500V, making it suitable for low voltage power and signal applications.
The contacts are made from phosphor bronze and are plated with gold over nickel to enhance conductivity and corrosion resistance.
It operates within a temperature range of -55°C to 105°C, allowing for use in various environments.
It utilizes insulation displacement contact (IDC) termination, which allows for quick and reliable wire termination without soldering or specialized tooling.
The connector features a cable pitch of 2.54mm, suitable for specific cable configurations.
The housing is constructed from polybutylene terephthalate, providing mechanical strength and electrical insulation.
This model has a right-angle design, which can be beneficial for space-saving installations.
It has a total of 26 contacts arranged in a 2-row configuration.
It includes central bump polarization and double depth grooves to ensure correct key alignment and secure mating.
Common applications include connecting ribbon cables inside computers, drives, phones, laptops, and various electronic devices.
This connector is a female connector, designed for cable mounting.
