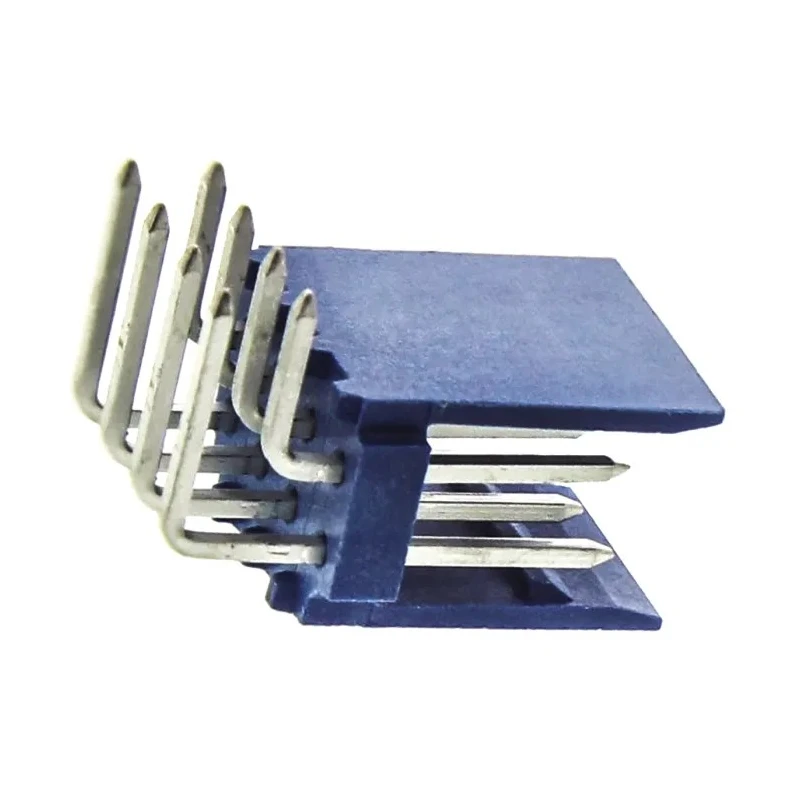

TE Connectivity AMPMODU HE14 Series Right Angle Through Hole PCB Header, 8 Contacts, 2.54 mm Pitch, 2 Row, Shrouded HE14

TE Connectivity HE14 right angle through hole PCB header is designed for wire-to-board connection, featuring an 8-contact, 2.54 mm pitch configuration with two rows of pins. Its shrouded housing is made from high temperature UL 94V-0 rated thermoplastic that ensures durability and safety in demanding industrial conditions.

The pins are constructed from phosphor bronze and plated with tin, providing excellent electrical conductivity and resistance to corrosion. The header is polarized to prevent incorrect mating, and it includes a protective shroud with an integrated friction lock that guarantees a secure and reliable connection even in vibration-intensive environments.

Rated for a maximum current of 3 amperes and voltage up to 500 volts, this PCB header operates effectively over a wide temperature range of -40°C to 105°C. The tail pin length of 2.9 mm allows for secure soldering on PCB surfaces, assuring strong mechanical and electrical bonds.

Applications of this connector include automotive control modules, telecommunications equipment, industrial automation systems, medical instrumentation, and test equipment. As part of the AMPMODU HE14 series, it forms a standard industrial interconnect system widely appreciated for its economy and reliability.

The product complies with industry standards for safety and performance and is presented in a right angle configuration to facilitate PCB layouts requiring lateral connections. This connector mates with AMPMODU HE14 IDC receptacles, supporting discrete wire or 2.54 mm ribbon cable terminations.

Features shrouded design for pin protection and polarization to prevent mismating. Constructed with high temperature UL 94V-0 thermoplastic housing for durability. Utilizes phosphor bronze contacts plated with tin for reliable conductivity.

Supports up to 3A current and 500V voltage for robust industrial performance. Designed with two rows of contacts, allowing compact multi-pin configurations. Tail pins measure 2.9 mm for secure solder termination. Operates reliably across wide temperature range from -40°C to 105°C.

Integrated friction lock ensures secure mating in harsh environments. Ideal for automotive controls, telecommunications, industrial and test equipment. Part of the AMPMODU HE14 interconnect system known for reliability and economy.
