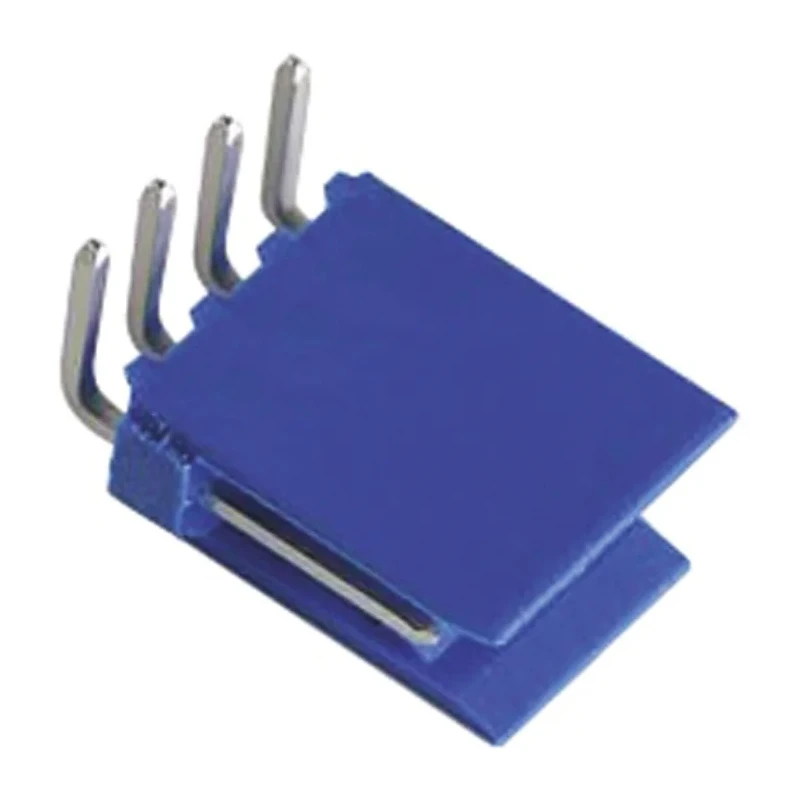

TE Connectivity AMPMODU HE14 Series Right Angle Through Hole PCB Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Shrouded HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- The header features a right angle orientation for PCB mounting and easy cable routing.
- It has 4 male contacts made of phosphor bronze plated with tin for reliable conductivity.
- The thermoplastic housing is high temperature UL 94V-0 rated and shrouded for pin protection and polarization to prevent mismating.
- The connector operates within a temperature range of -40°C to 105°C and supports up to 3A current at 500V voltage rating.
- The tail pin length is 2.79 mm for through hole soldering on PCB.
- Integrated friction lock ensures a secure mate with AMPMODU HE14 IDC receptacles.
- Widely used in automotive controls, industrial equipment, telecommunications, medical instruments, and consumer appliances.
Product Description
TE Connectivity HE14 right angle through hole PCB header with 4 contacts and 2.54 mm pitch is engineered for robust and reliable wire-to-board interconnection in industrial and electronic applications. The connector features a shrouded, thermoplastic housing rated UL 94V-0 for high temperature resistance, ensuring durability in harsh environments.
The header is designed with a right angle orientation and single row configuration, providing secure mechanical retention with a friction lock mechanism. Its polarized housing prevents incorrect mating, enhancing system reliability.
Contacts are made from phosphor bronze material with tin plating for excellent electrical conductivity and corrosion resistance. The connector supports a continuous current of 3A at a voltage rating of 500V, suitable for diverse electronic functions requiring dependable power and signal transmission.
This AMPMODU HE14 series PCB header is widely deployed across automotive controls, industrial and test equipment, telecommunications, computer peripherals, medical devices, storage systems, and household appliances for effective cable termination solutions.
The header features a right angle orientation for PCB mounting and easy cable routing. It has 4 male contacts made of phosphor bronze plated with tin for reliable conductivity. The thermoplastic housing is high temperature UL 94V-0 rated and shrouded for pin protection and polarization to prevent mismating.
The connector operates within a temperature range of -40°C to 105°C and supports up to 3A current at 500V voltage rating. The tail pin length is 2.79 mm for through hole soldering on PCB. Integrated friction lock ensures a secure mate with AMPMODU HE14 IDC receptacles.
Widely used in automotive controls, industrial equipment, telecommunications, medical instruments, and consumer appliances.
TE Connectivity's AMPMODU HE14 interconnect system is the industry standard for automation and control applications, combining ease of assembly with reliable electrical performance. Explore other connectors and components in the PCB Header category at EnvMart for your electronic design needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 3A and a voltage rating of 500V.
The contacts in this header have a pitch size of 2.54 mm.
It operates within a temperature range of -40°C to 105°C.
The contacts are made from phosphor bronze and are plated with tin for conductivity.
This header is designed for through hole mounting with a tail pin length of 2.79 mm for soldering.
It features a shrouded thermoplastic housing that is rated UL 94V-0 for high temperature resistance.
This model has 4 male contacts.
The connector is designed with a right angle orientation for PCB mounting and cable routing.
Yes, the polarized housing prevents incorrect mating, enhancing system reliability.
It is widely used in automotive controls, industrial equipment, telecommunications, medical instruments, and consumer appliances.
This header is part of the AMPMODU HE14 connector system, designed for wire-to-board interconnections.
It includes an integrated friction lock that ensures a secure mate with AMPMODU HE14 IDC receptacles.
