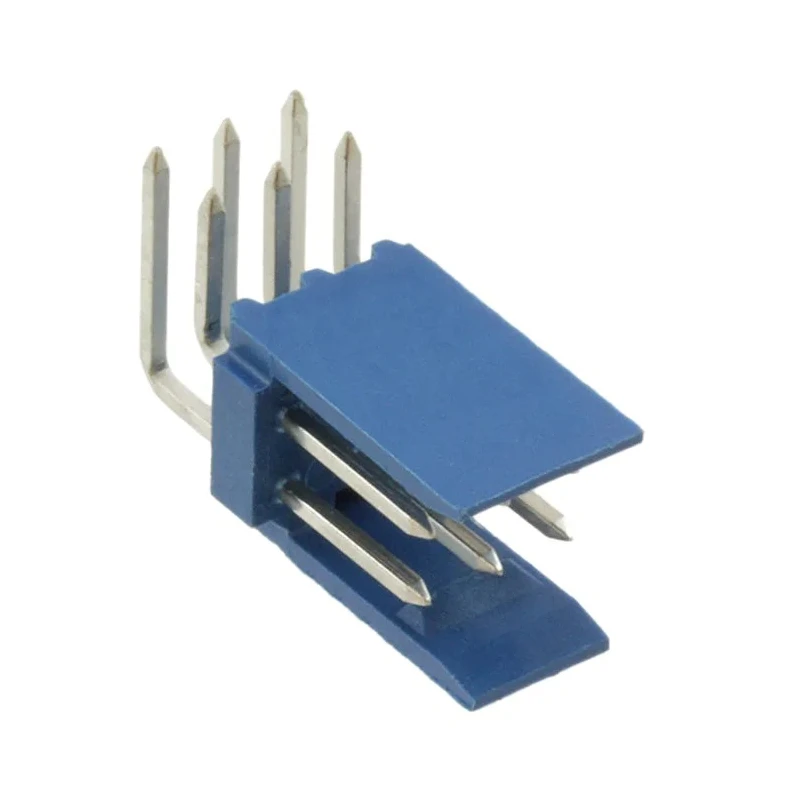

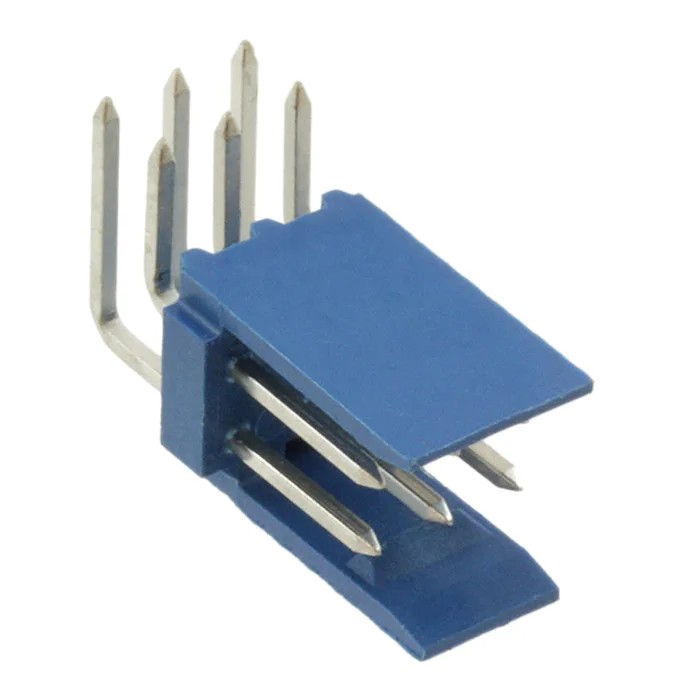

NEUTRAL AMPMODU Series Right Angle Through Hole Shrouded PCB Header 6 Contact 2.54 mm Pitch 2 Row HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | NEUTRAL |
| Orientation | Right Angle |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| HE14 6W 2/ROW 90 HDRBrand | NEUTRAL |
Key Features
- Designed for secure wire-to-board connections.
- Features a shrouded housing to protect pins during mating.
- Constructed with high temperature UL 94V-0 rated thermoplastic housing.
- Utilizes phosphor bronze male contacts with tin plating for durability.
- Polarized design prevents mismating errors.
- Integrated friction lock ensures stable and secure connection.
- Operational voltage rating is 500 V with a current rating of 3 A.
- Suitable for industrial, automotive, telecommunications, and medical equipment applications.
Product Description
TE Connectivity HE14 Series Right Angle Through Hole Shrouded PCB Header, model HE14, features 6 male contacts arranged in 2 rows with 2.54 mm pitch and a durable thermoplastic housing rated UL 94V-0 for high temperature performance. This connector is designed to provide reliable wire-to-board interfacing with a polarized shrouded design that prevents mismating and offers pin protection during connection.
The phosphor bronze contacts are tin-plated to ensure robust electrical contact and solder termination is used for secure mounting on PCBs. The integrated friction lock mechanism guarantees a stable and secure mating connection across various environmental conditions.
This right angle PCB header supports up to 3 A current and 500 V voltage rating, making it ideal for demanding electronics applications. It has a tail pin length of 2.9 mm and operates reliably in temperature ranges from -40°C to 105°C.
The AMPMODU HE14 system, of which this header is a part, is extensively used in automotive controls, industrial instrumentation, telecommunications, medical devices, storage equipment, and various test equipment. This versatile connector system supports discrete wires or ribbon cables through compatible IDC receptacles, enhancing system integration and maintenance.
Designed for consistent and reliable wire-to-board electrical connections. Shrouded housing provides mechanical protection and polarization. High temperature thermoplastic housing rated UL 94V-0 ensures safety and durability.
Male phosphor bronze contacts with tin plating enhance electrical conductivity. Integrated friction lock offers secure and stable mating interface. Rated for 3 A current and 500 V voltage suitable for industrial environments.
Wide operating temperature range from -40°C to 105°C enables versatile application use. Right angle through hole mount simplifies PCB layout in compact designs. Compatible with AMPMODU HE14 IDC receptacles for discrete wire or ribbon cable terminations.
Explore more electronics components in the PCB Headers category at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operational voltage rating of this PCB header is 500 V.
This model features 6 male contacts arranged in 2 rows.
It has a current rating of 3 A.
This header utilizes a through hole mounting type.
The housing is constructed from high temperature thermoplastic rated UL 94V-0.
The pitch size of the contacts is 2.54 mm.
The tail pin length is 2.9 mm.
It operates reliably within a temperature range of -40°C to 105°C.
Yes, it features a polarized design that prevents mismating errors.
The termination type for this model is solder.
It is suitable for applications in industrial, automotive, telecommunications, and medical equipment.
The contacts are made of phosphor bronze with tin plating for enhanced electrical conductivity.
