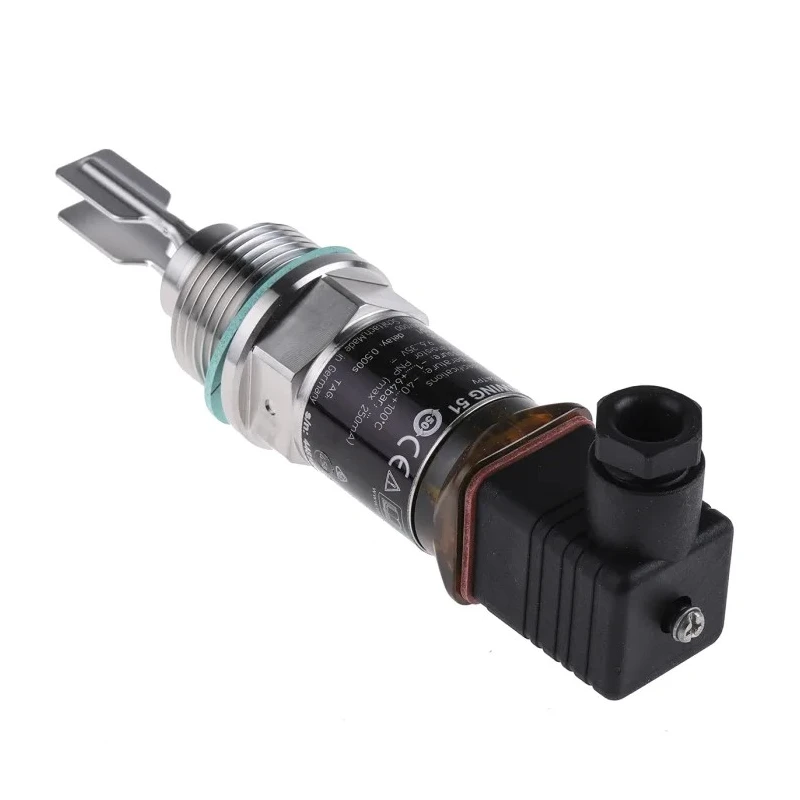

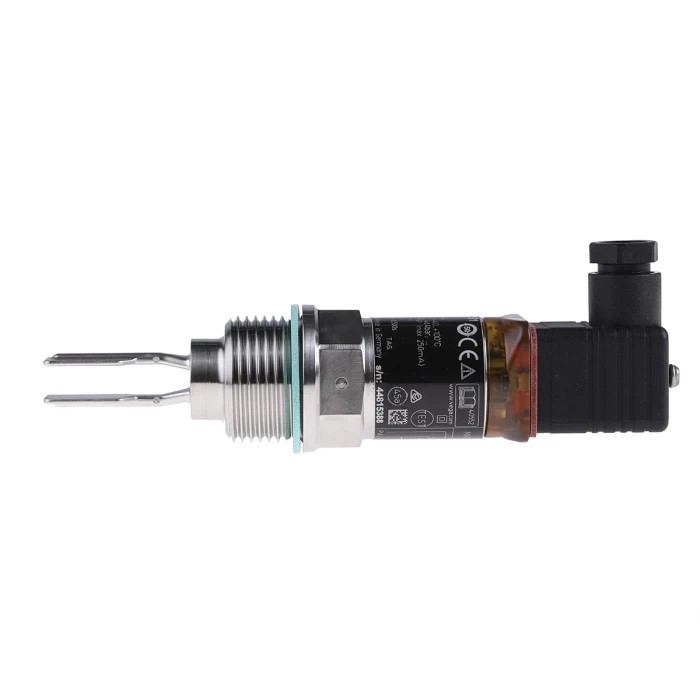

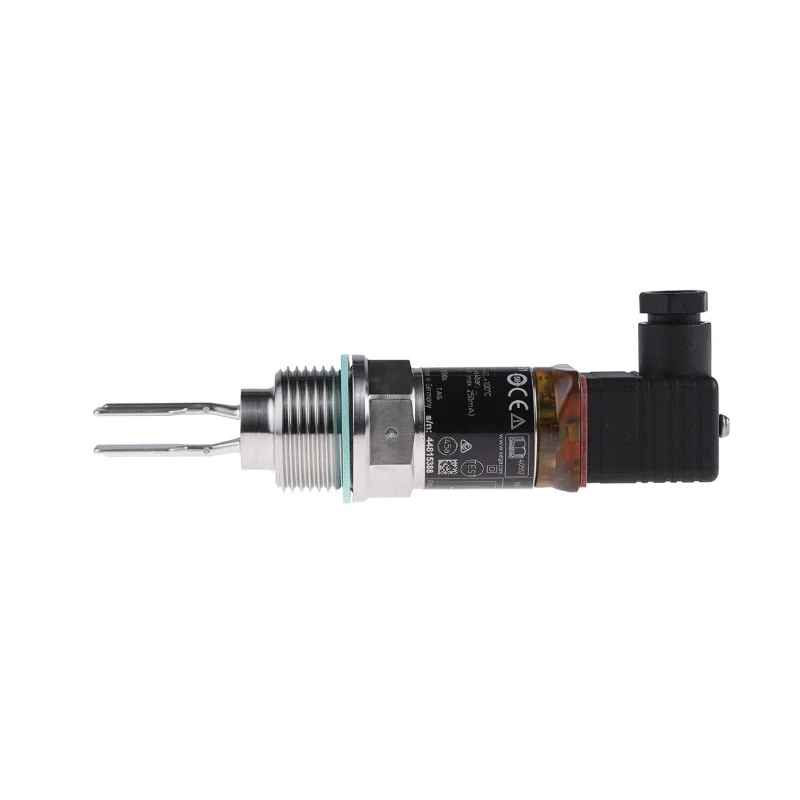

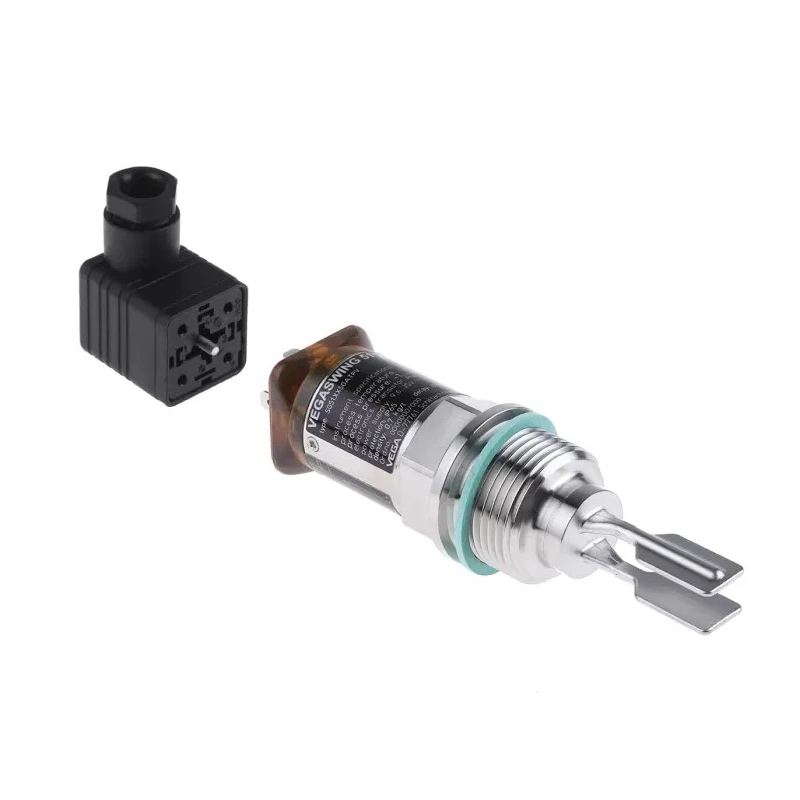

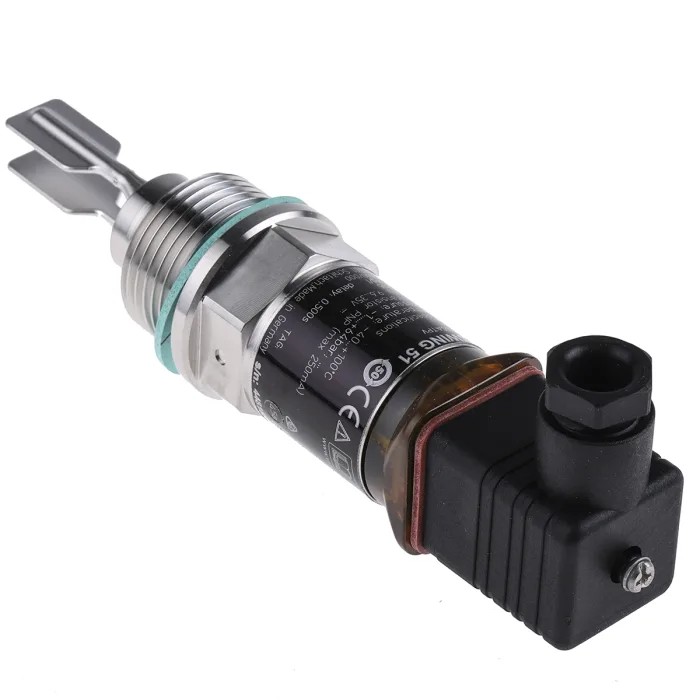

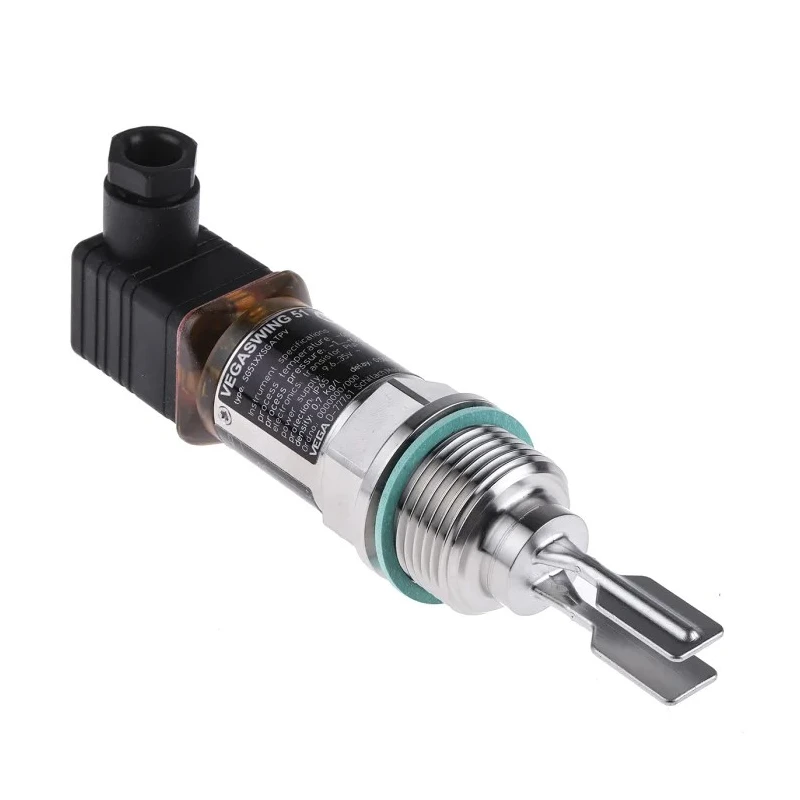

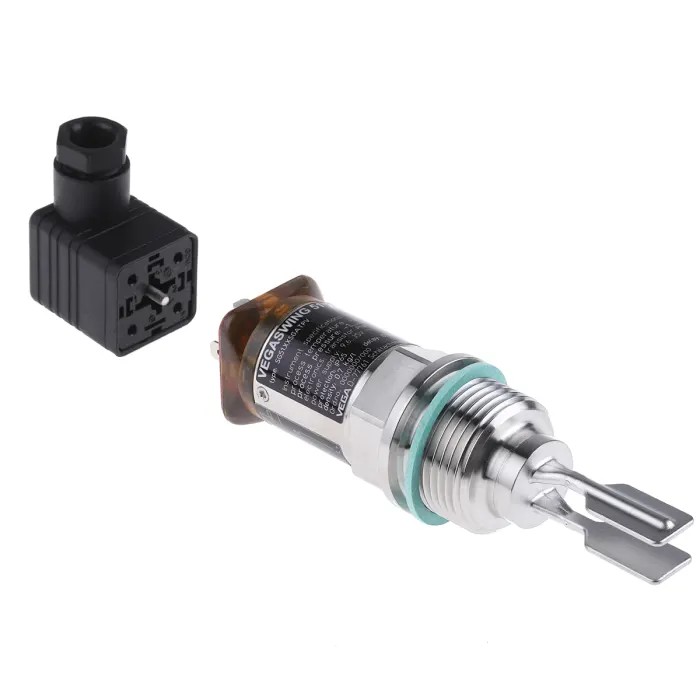

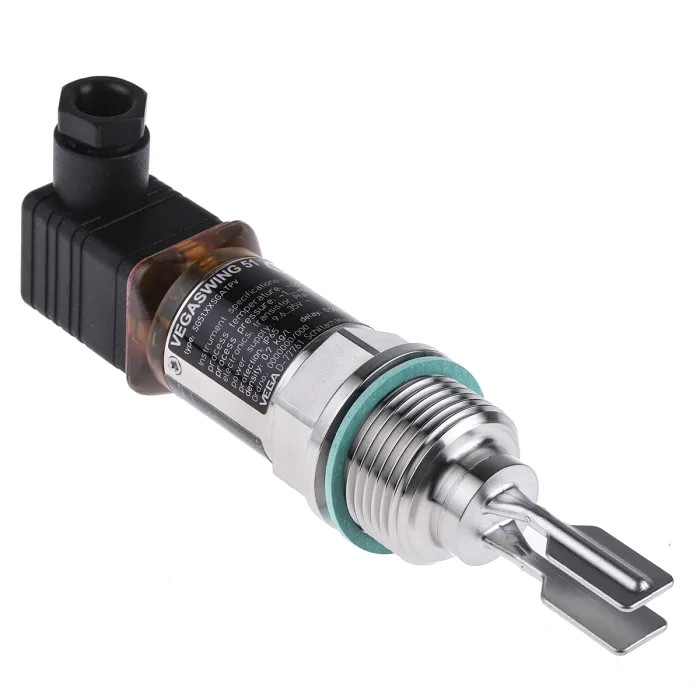

Vega VEGASWING 51 Series Tuning Fork Level Switch, Horizontal Mount, Stainless Steel Housing, ATEX Rated SG51.XXSGATPV
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Vega |
| Model | SG51.XXSGATPV |
| Mount Type | Horizontal |
| Housing Material | Stainless Steel |
| Series | VEGASWING 51 |
| Maximum Operating Temperature | 100°C |
| Maximum Pressure | 64bar |
| Thread Size | G1 |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 250mA |
| Device Type | Tuning Fork |
| Interface Type | IO-Link |
| Maximum dc Voltage | 35V dc |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | FDA, EHEDG, WHG |
| VEGASWING 71A liquid level switchBrand | Vega |
Key Features
- The device operates with a voltage range of 9.6VDC to 35VDC and maximum current of 250mA.
- It features an IP67 rated valve plug termination for reliable protection in harsh environments.
- The stainless steel housing guarantees high corrosion resistance and durability.
- Operating temperature ranges from -40°C up to 100°C, suitable for various industrial conditions.
- This switch provides millimeter accuracy for empty/full detection and overfill or dry running protection.
- The fork and housing design is ultra-compact, with a 40mm fork length for installation flexibility.
- Equipped with IO-Link interface type for seamless integration into automation systems.
- It has a maximum pressure rating of 64 bar, suitable for many process applications.
Product Description
Vega SG51.XXSGATPV is a universal vibrating tuning fork level switch designed for liquids, offering high precision and reliability with millimeter accuracy. It is built for horizontal mounting and comes with a stainless steel housing rated for corrosion resistance and durability under challenging industrial conditions.
This ATEX-certified level switch operates within a voltage range of 9.6VDC to 35VDC and can carry a maximum current of 250mA, enabling it to reliably detect point level limits in vessels and pipelines. The device supports IO-Link interface for enhanced communication and integration into automated control systems.
The tuning fork switch is suitable to serve as empty or full detector, approved overfill protection, dry running protection, or pump protection for liquids, ensuring operational safety and process integrity across various industries.

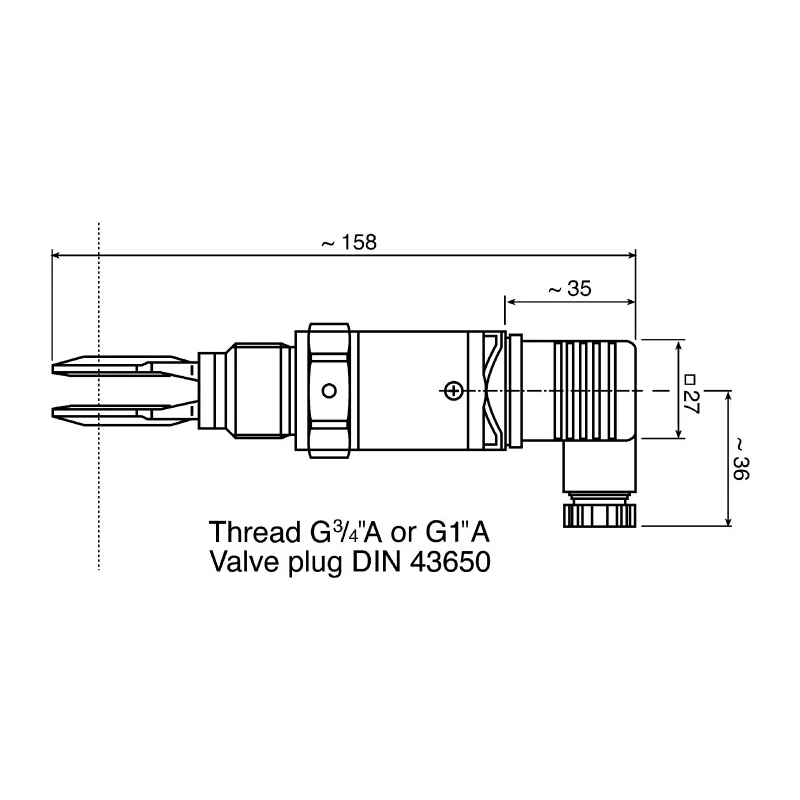

The design features a compact 40mm fork and housing, allowing installation in confined spaces. It withstands pressures up to 64 bar and functions properly in temperature ranges from -40°C to 100°C. The housing meets IP67 standards (with valve plug termination) and IP65 (with valve plug), assuring resistance against water and dust ingress.
Applications include industrial process control, bilge and leakage monitoring, and oil level detection in rotor gearboxes. The device complies with FDA, EHEDG, and WHG approvals, making it suitable for hygienic and food-related environments.
Operates reliably with millimeter accuracy for limit level detection. ATEX hazardous area certified for safe use in explosive atmospheres. Constructed with 316 stainless steel housing for corrosion resistance. Supports IO-Link communication for integration in automation systems.
Compact design with 40mm fork length for versatile mounting. IP67 rated for valve plug termination ensuring environmental protection. Wide operating temperature range of -40°C to 100°C. Maximum pressure rating of 64 bar for diverse process conditions.
Suitable for empty/full detection, overfill, and dry-run protection. Complies with FDA, EHEDG, and WHG standards for hygienic applications.
This tuning fork level switch is an ideal choice in industrial, automation, construction, and HVAC applications requiring dependable point level detection. Browse related sensors and level switches in the EnvMart catalog for complementary automation control solutions.
Explore more products in our Level Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The device operates within a voltage range of 9.6VDC to 35VDC.
The maximum current rating for this model is 250mA.
It has a maximum pressure rating of 64 bar, suitable for various process applications.
The operating temperature ranges from -40°C to 100°C, making it suitable for diverse industrial conditions.
The housing is made of stainless steel, providing high corrosion resistance.
This model is designed for horizontal mounting, allowing for flexible installation options.
It is equipped with an IO-Link interface type for seamless integration into automation systems.
It is ATEX certified, making it suitable for use in explosive atmospheres.
It complies with FDA, EHEDG, and WHG standards, making it suitable for hygienic and food-related environments.
The fork length is 40mm, allowing for installation in confined spaces.
It is suitable for applications such as industrial process control, bilge and leakage monitoring, and oil level detection in rotor gearboxes.
It provides empty/full detection, overfill protection, and dry running protection for liquids.
