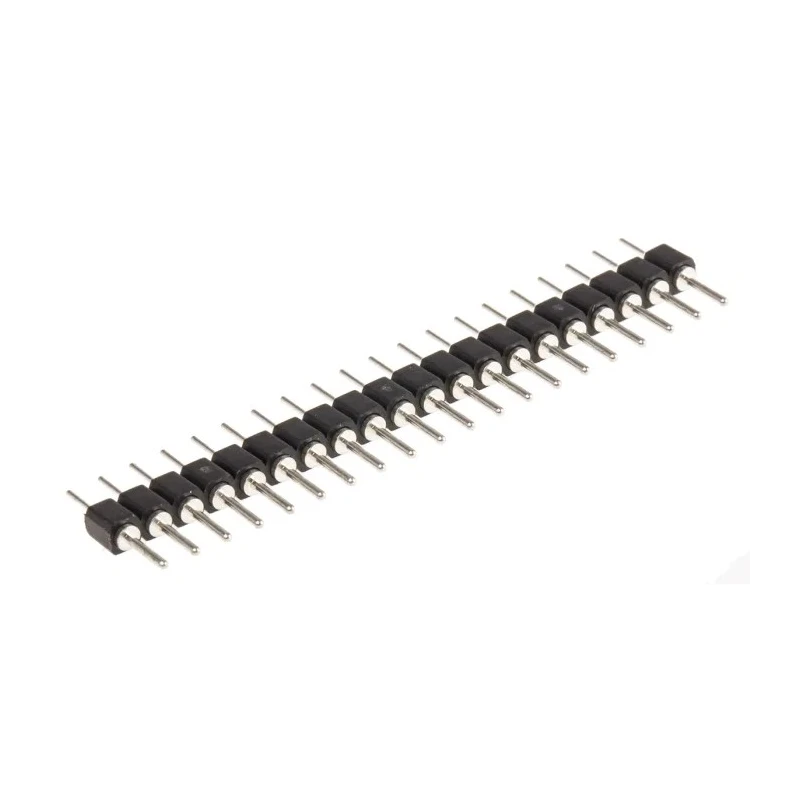

HARWIN D01-9922046 D01-99 Series 20 Contact Straight Through Hole Pin Header 2.54 mm Pitch 1 Row Unshrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | HARWIN |
| Orientation | Straight |
| Body Material | Glass Filled Polyester |
| Current | 1.5A |
| Model | D01-9922046 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | D01-99 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Cable |
| Tail Pin Length | 3.08mm |
| Flammability | UL 94 V-0 |
| IC,socket,SIL,through header,20 wayBrand | NEUTRAL |
| E-TEC, POS/POO/PCL 2.54 mm Pitch,Through Hole Mount DIL HeaderBrand | E-TEC |
Key Features
- Features a single row of 20 female contacts for precise soldering.
- Unshrouded design allows easy access for cable insertion.
- Constructed with brass contacts plated with tin for durability.
- Housing made of flame-retardant nylon with UL 94 V-0 rating.
- Supports currents up to 1.5 A and voltage up to 1000 V.
- Operating temperature range from -55°C to 125°C ensures versatility.
- Tail pin length is 3.08 mm suitable for through-hole mounting.
- Body material is glass filled polyester enhancing mechanical strength.
Product Description
HARWIN D01-9922046 D01-99 Series Straight Through Hole Pin Header features a 20 contact count with a 2.54 mm pitch arranged in a single row. Designed for board-to-cable connections, this connector offers a female contact gender with unshrouded, straight orientation, making it suitable for easy cable access and solder termination.
Constructed using brass contacts with tin plating, the pin header provides reliable electrical connection and resistance to corrosion. The housing material is flame-retardant nylon, conforming to UL 94 V-0 standards, ensuring safety and durability under demanding operating conditions.
This pin header sustains a current rating of 1.5 amperes and operating voltage up to 1000 volts, supporting a broad range of electronics applications. It operates effectively in temperatures ranging from -55°C to 125°C, suitable for various industrial and commercial environments.
The tail pins are 3.08 mm long and designed for through-hole mounting offering strong mechanical stability in PCB assemblies. The body is composed of glass filled polyester, enhancing mechanical strength and resistance to environmental stress.
This connector is ideal for use in electronic components, power and connectors systems, including industrial, laboratory, manufacturing, and communication applications requiring robust and dependable PCB interconnections.
Single row with 20 female contacts. 2.54 mm pitch for compatibility with standard SIL sockets. Brass contacts with tin plating for corrosion resistance. Nylon housing with UL 94 V-0 flame retardancy. Through hole mount type for strong PCB attachment.
Wide operating temperature range from -55°C to 125°C. Current rating of 1.5 A and voltage rating of 1000 V. Tail pin length 3.08 mm for secure solder connection. Body made of glass filled polyester for enhanced durability.
Unshrouded design for easy wire access and soldering. Explore more PCB connectors and headers from EnvMart for your electronic assembly needs.
Explore more products in our PCB Pin Header category.
