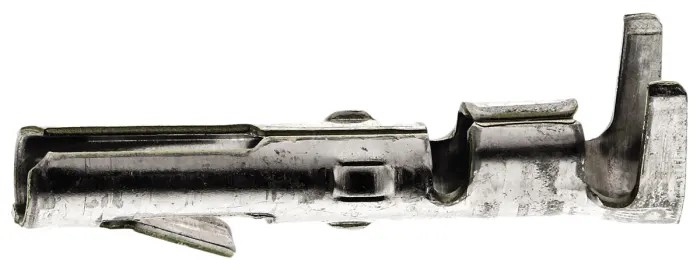

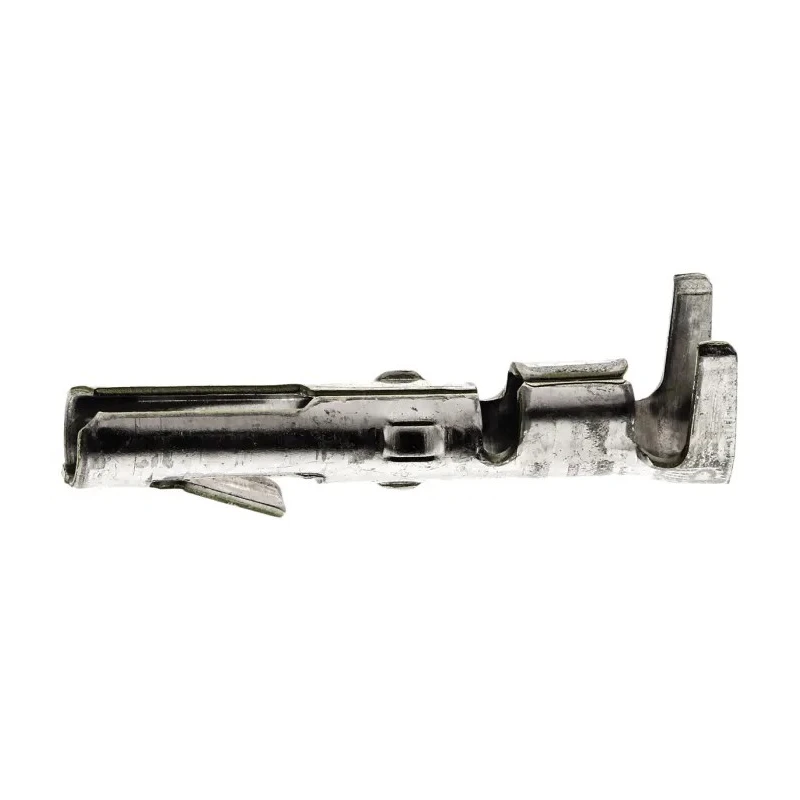

TE Connectivity Commercial MATE-N-LOK Series Female Crimp Terminal 3A 17-13 AWG Tin Plated Brass 163306-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Model | 163306-2 |
| Gender | Female |
| Contact Material | Brass |
| Series | Commercial MATE-N-LOK |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | 65°C |
| For Use With | Commercial MATE-N-LOK Connector Housing |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 17AWG |
| Maximum Wire Size AWG | 13AWG |
Key Features
- Constructed from brass with tin plating for corrosion resistance.
- Suitable for use with Commercial MATE-N-LOK connector housings.
- Provides IDC termination with a clean design to avoid sharp projections.
- Operates reliably between 65°C minimum and 105°C maximum temperatures.
- RoHS compliant ensuring environmentally friendly composition.
- Accommodates wire sizes from 1 mm² to 2.5 mm².
- Enables efficient crimping for electrical and electronic applications.
- Designed for commercial and industrial electrical connector solutions.
Product Description
TE Connectivity 163306-2 Commercial MATE-N-LOK Series Female Crimp Terminal is engineered for reliable electrical connections in industrial and electronic applications. It supports wire sizes ranging from 17 AWG to 13 AWG (1 mm² to 2.5 mm²) and is rated for a current of 3 amperes. The contact features a tin-plated brass construction ensuring durability and resistance to corrosion, with a termination type of insulation displacement contact (IDC) for secure wire attachment.
The design ensures there are no sharp projections that could damage connector housings during use or insertion, enhancing connector lifespan and assembly safety. It operates effectively within a temperature range of 65°C to 105°C, making it suitable for various environments in electronic devices, industrial equipment, and commercial electrical systems.
This terminal is RoHS compliant, confirming adherence to environmental and safety standards for hazardous substances. Its compatibility with the Commercial MATE-N-LOK connector housings makes it a versatile and trusted choice for wire-to-board and wire-to-wire connections, simplifying assembly processes and ensuring consistent performance.
Ideal uses include manufacturing, industrial automation, HVAC controls, telecommunications equipment, and electronic interface assemblies. Its ease of installation and reliable performance support improved production efficiency and long-term electrical integrity.
Package contains a female crimp terminal suitable for Commercial MATE-N-LOK series connectors, designed to meet rigorous industrial, laboratory, and manufacturing standards. Constructed from durable tin-plated brass for effective conductivity and corrosion resistance.
Designed for use with Commercial MATE-N-LOK connector housings providing secure electrical connections. Compatibility supports wire sizes between 17 AWG and 13 AWG (1 mm² to 2.5 mm²). Rated current capacity of 3 amperes matching standard industrial requirements.
Temperature operating range from 65°C to 105°C ensures versatility in many environments. RoHS compliant, adhering to environmental and safety standards. Features IDC termination method for reliable and efficient crimping.
Optimized design without sharp edges enhances durability and ease of use. Explore more products in Electronics Components at EnvMart for advanced electrical solutions.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3 amperes, making it suitable for standard industrial requirements.
It accommodates wire sizes ranging from 17 AWG to 13 AWG, or 1 mm² to 2.5 mm².
The terminal operates effectively within a temperature range of 65°C to 105°C.
It features insulation displacement contact (IDC) termination for secure wire attachment.
Yes, this terminal is RoHS compliant, adhering to environmental and safety standards for hazardous substances.
The terminal is constructed from brass with a tin plating, providing corrosion resistance and effective conductivity.
It is designed for use with Commercial MATE-N-LOK connector housings, ensuring secure electrical connections.
The design minimizes sharp projections that could damage connector housings during use or insertion, enhancing assembly safety and lifespan.
This terminal is ideal for applications in manufacturing, industrial automation, HVAC controls, telecommunications equipment, and electronic interface assemblies.
The terminal is manufactured in India.
This terminal is a female crimp terminal, designed for specific connector applications.
Specific dimensions and weight details are not provided in the product specifications.
