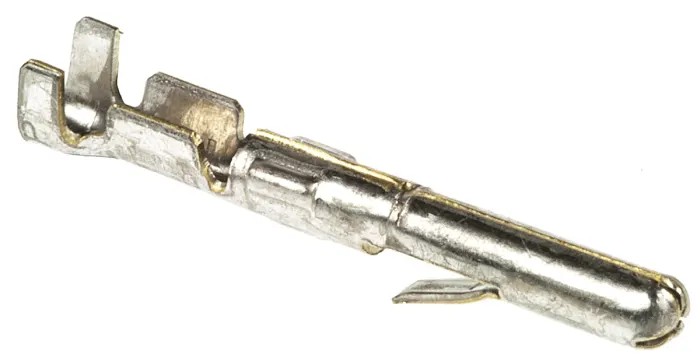

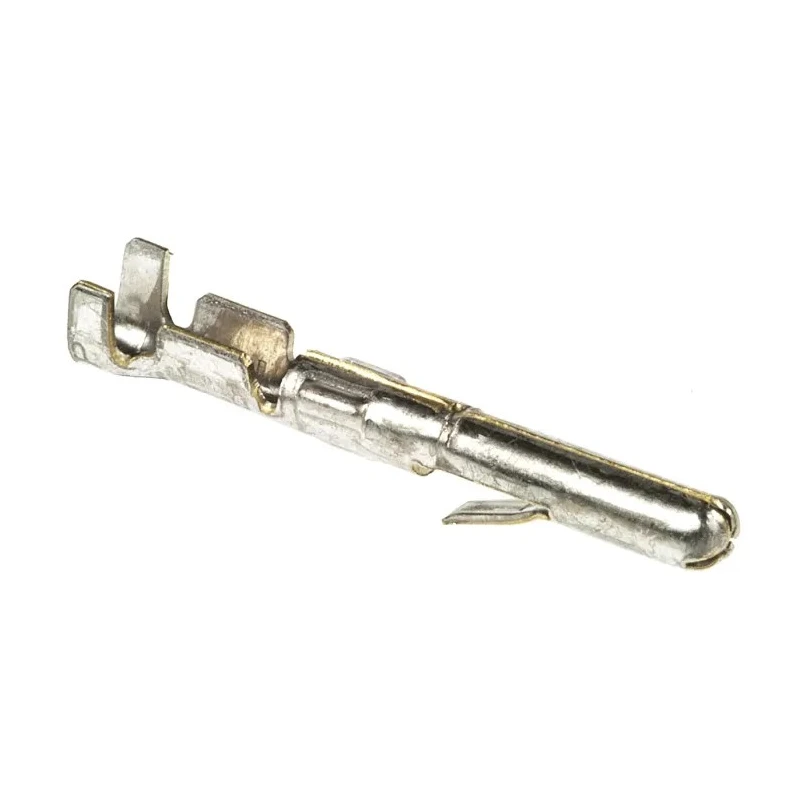

TE Connectivity Commercial MATE-N-LOK Series Male Crimp Terminal, 22 AWG Min Solder, 18 AWG Max 163558-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | 163558-2 |
| Gender | Male |
| Contact Material | Brass |
| Series | Commercial MATE-N-LOK |
| Termination Type | Solder |
| Minimum Operating Temperature | -40°C |
| For Use With | Commercial MATE-N-LOK Connector Housing |
| Standards/Approvals | ELV, RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.75mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 2mΩ |
Key Features
- Designed for Commercial MATE-N-LOK connector housings.
- Suitable for wire size range of 0.3 mm² (22 AWG) to 0.75 mm² (18 AWG).
- Constructed with brass contact material for durability.
- Tin plating provides corrosion resistance and reliable connection.
- Maximum contact resistance is 2 milliohms ensuring efficient conductivity.
- Operates safely at temperatures as low as -40 degrees Celsius.
- Termination type is solder to ensure secure wire attachment.
- Complies with ELV and RoHS standards for environmental and safety compliance.
Product Description
TE Connectivity 163558-2 is a Commercial MATE-N-LOK series male crimp terminal designed for use with Commercial MATE-N-LOK connector housings. It supports wire sizes ranging from 22 AWG minimum solder to 18 AWG maximum, equivalent to 0.3 mm² to 0.75 mm², making it suitable for a variety of electrical wiring applications.
The crimp terminal is made of brass, offering excellent mechanical strength and reliable electrical conductivity. Tin plating enhances the contact surfaces to protect against corrosion, ensuring long-term performance and stable connections.
This terminal features a maximum contact resistance of 2 milliohms, contributing to efficient electrical signal transmission with minimal losses. The designed termination method is soldering, providing a firm and durable wire connection.
It operates effectively in demanding environments with a minimum operating temperature of -40°C, suitable for industrial, electronic, and electrical applications that require performance under low temperatures.
The TE Connectivity 163558-2 crimp terminal meets stringent standards including ELV and RoHS, confirming adherence to environmental regulations and safety requirements. This product supports efficient assembly processes and is ideal for manufacturing, electronics assembly, and maintenance tasks in various industrial settings.
Designed for Commercial MATE-N-LOK connector housings. Accepts wire sizes from 22 AWG minimum solder to 18 AWG maximum. Constructed with durable brass and tin plating for corrosion resistance. Rated maximum contact resistance of 2 milliohms.
Operates down to -40°C minimum temperature. Solder termination type for secure wire attachment. Complies with ELV and RoHS standards. Explore more high-quality Crimp Contacts and connectors from TE Connectivity on EnvMart to support your electronic and electrical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports a wire size range of 22 AWG minimum (0.3 mm²) to 18 AWG maximum (0.75 mm²).
The maximum contact resistance is 2 milliohms, ensuring efficient electrical conductivity.
It is constructed with brass contact material and features tin plating for corrosion resistance.
The termination type is solder, which ensures a secure attachment of the wire.
It operates effectively at temperatures as low as -40 degrees Celsius.
This male crimp terminal is designed for use with Commercial MATE-N-LOK connector housings.
It complies with ELV and RoHS standards, confirming adherence to environmental regulations and safety requirements.
The country of origin for this crimp terminal is India.
This terminal is classified as male.
It is suitable for various electrical wiring applications, particularly in industrial and electronic settings.
The tin plating enhances the contact surfaces by providing corrosion resistance, which contributes to long-term performance.
The terminal supports efficient assembly processes, particularly in manufacturing and electronics assembly tasks.
