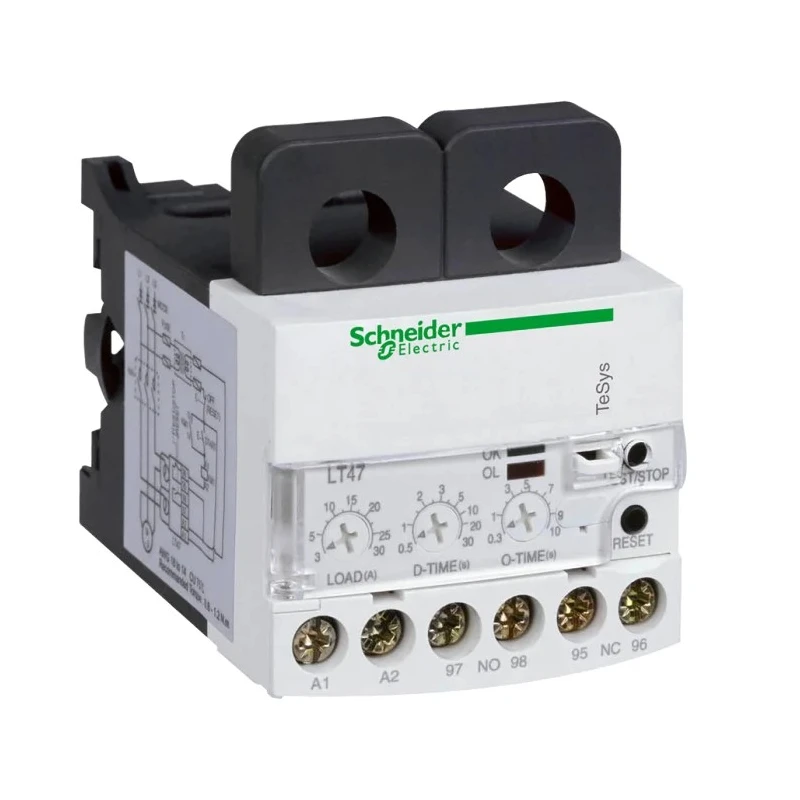

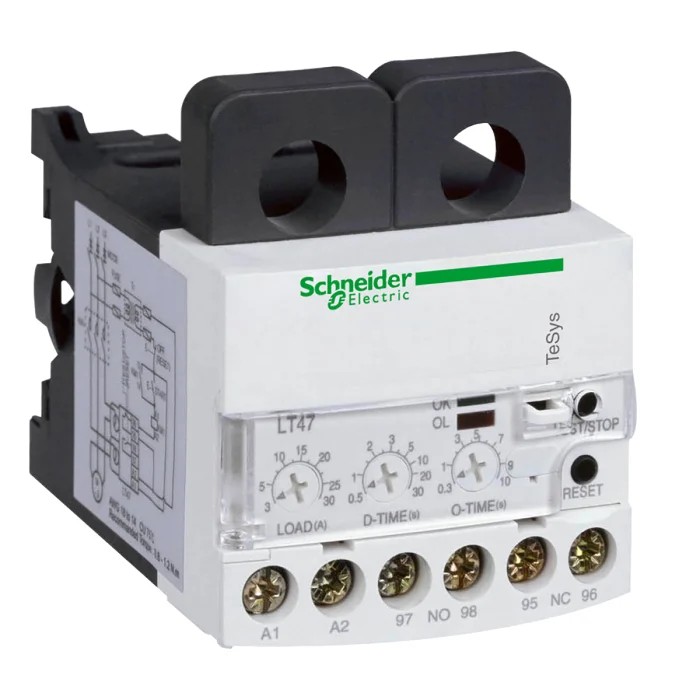

Schneider Electric LT47 Overload Relay 1 NO/1 NC, 5A-60A FLC, 60A Contact Rating, 55 W Power, 24V AC/DC, Manual LT4760BS

Schneider Electric LT4760BS is an LT47 series electronic overload relay designed for motor protection in industrial automation and control applications. It features a 1 NO/1 NC contact configuration and a power rating of 55 W, suitable for motors with full load currents from 5 A up to 60 A. The relay provides accurate overcurrent protection with adjustable current range, ensuring reliable operation and safeguarding against motor damage.

The relay is designed to be mounted directly and uses screw terminals for secure electrical connections. Its IP20 rating offers protection against solid foreign objects, making it suitable for standard industrial environments.

Manual reset enables operators to quickly reset the relay after a trip event, enhancing safety protocols. Additional features include LED status indication for electrical states such as voltage presence, motor starting, steady operational state, overload condition, and trip occurrence, facilitating maintenance and diagnostics.

Schneider Electric LT4760BS operates reliably in a broad temperature range from -25°C to 60°C, making it suitable for a variety of industrial settings, including manufacturing, HVAC systems, water treatment plants, and general motor control applications.

The compact form factor (67.5 mm height, 45 mm width, 77.2 mm depth) allows for easy integration into control panels and switchboards. Compliance with IEC 60255-6, IEC 60947, CSA, and UL standards ensures the relay meets stringent safety and quality requirements.

Rated motor FLC range from 5 to 60 A for flexible application. 60 A relay contact current ensures robust control capabilities. Manual reset method for controlled operation recovery. Direct mounting and screw terminals for simple installation.

IP20 protection rating for solid object ingress protection. 24 V AC/DC supply voltage compatibility. LED status indication improves operational visibility. Wide operating temperature range supports varied industrial environments.

Compact size facilitates integration into electrical panels. Standards compliance with IEC, CSA, and UL guarantees reliability.

This Overload Relay is ideal for industrial applications requiring precise motor protection against overloads, mechanical failures, and electrical faults. It supports machine safety and reliable motor functioning in sectors such as manufacturing lines, building automation, and industrial controls.
