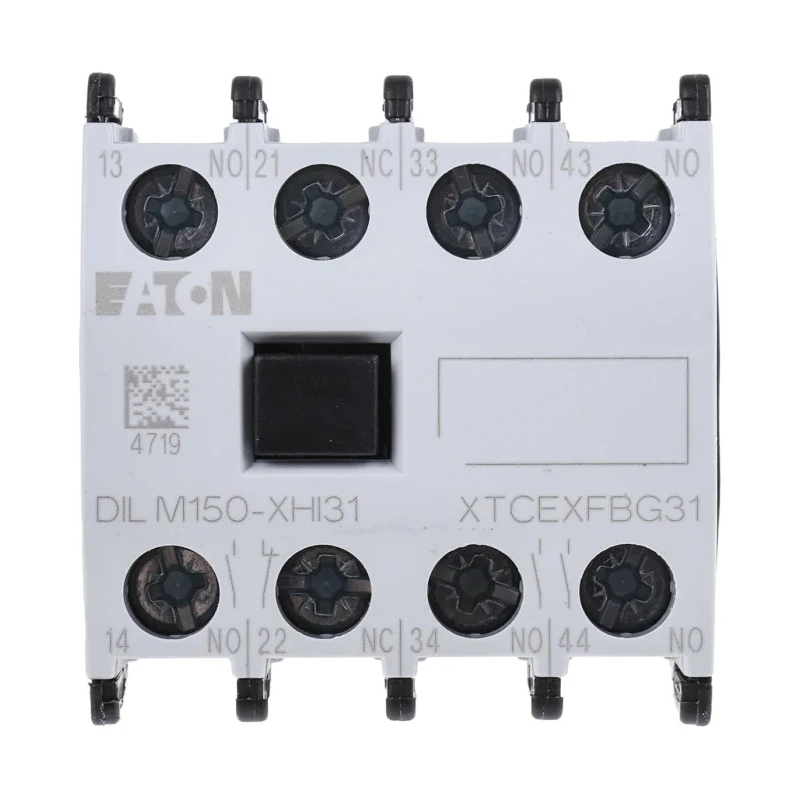

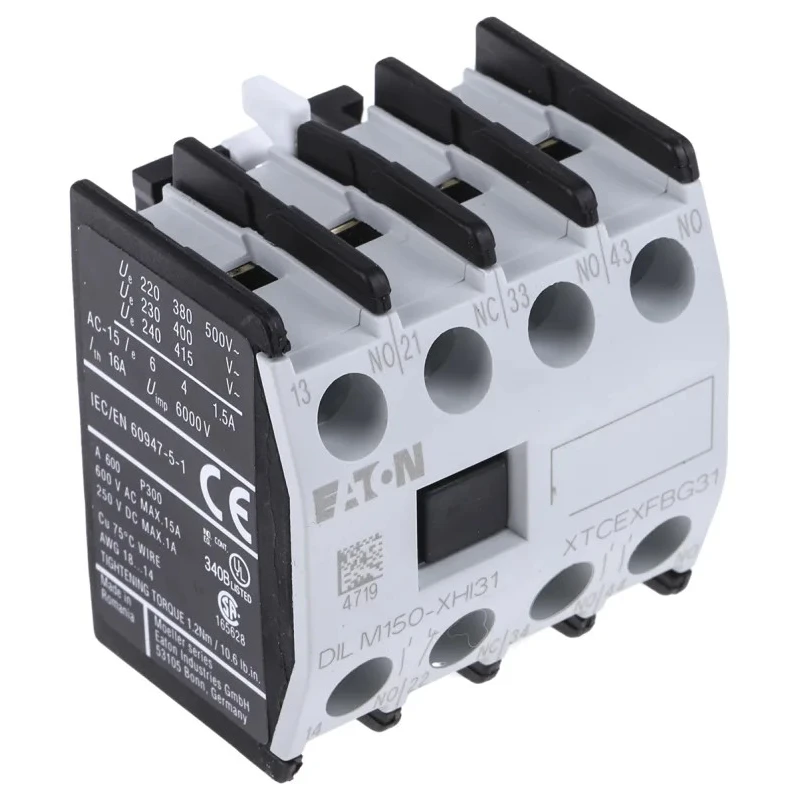

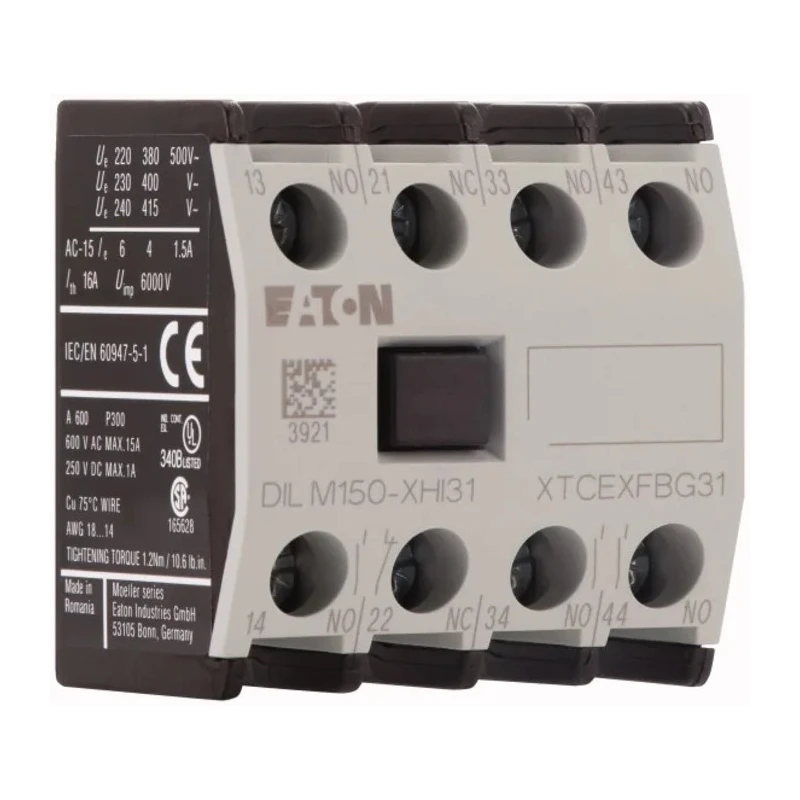

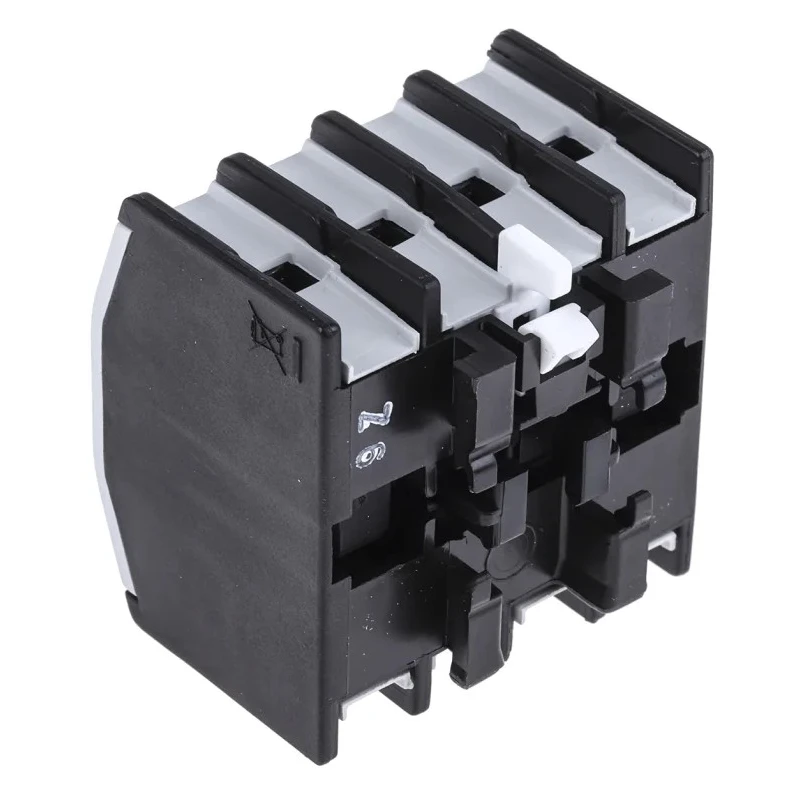

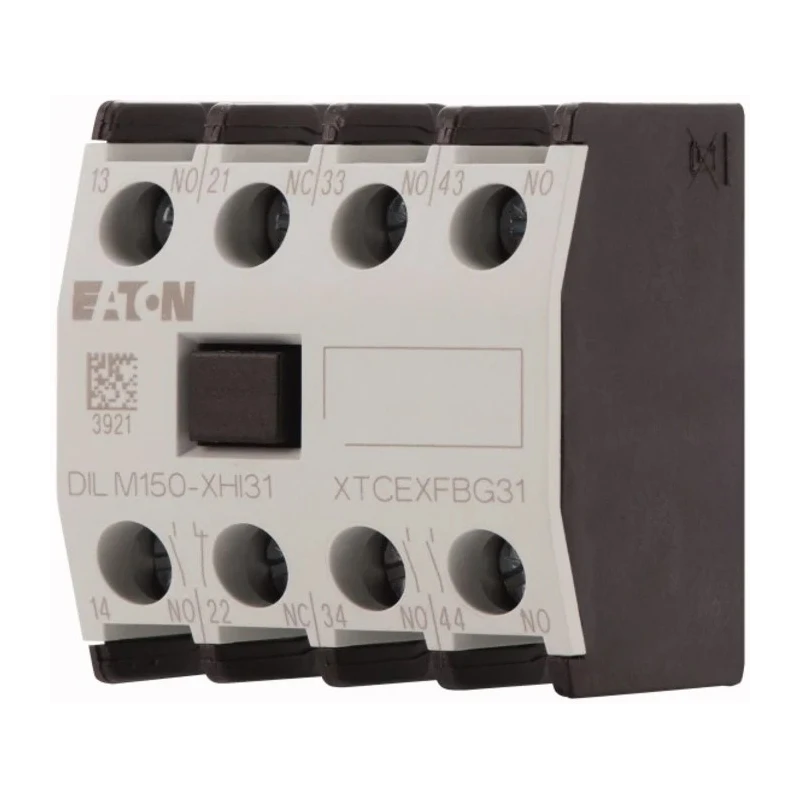

Eaton Auxiliary Contact 4 Contact, 3 NO/1 NC, Front Mount, 16 A, 220 V DC, 500 V AC, DILM Series 277949 DILM150-XHI31

Free Delivery in India | Lowest Global Shipping Charges

Eaton Auxiliary Contact 4 Contact, 3 NO/1 NC, Front Mount, 16 A, 220 V DC, 500 V AC, DILM Series 277949 DILM150-XHI31

Name: Eaton Auxiliary Contact 4 Contact, 3 NO/1 NC, Front Mount, 16 A, 220 V DC, 500 V AC, DILM Series 277949 DILM150-XHI31
Brand: Eaton
SKU: 122699
Price: 33.07 USD
Availability: InStock



Category Auxiliary Contacts Brand Eaton Condition New

Specifications

Country of Origin	India
Brand	Eaton
Model	277949 DILM150-XHI31
Mount Type	Front
Series	DILM
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Standards/Approvals	CSA, IEC/EN 60947, VDE 0660, UL
Number of Contacts	4
Contact Voltage	220, 500V dc
Normal State Configuration	3 NO/1 NC
Contact Current	16A
Operational Current Ie	6A
Pole and Throw Configuration	4PST
Mechanical Durability	1300000Operations
Rated Insulation Voltage Ui	690V
Cooper Bussmann 100A T Cartridge Fuse, 26.9 x 149.35mmBrand	Cooper Bussmann

Key Features

The unit features a front mount design for easy installation on DILM contactors.
Supports a contact current rating of 16 amperes for robust electrical load handling.
Operates at 220 V DC and 500 V AC, ensuring versatile voltage compatibility.
Screw terminal connections provide secure and vibration-resistant wiring.
Built to last with mechanical durability rated at 1.3 million operations.
Rated insulation voltage is 690 V for high dielectric strength and safety.
Wide operating temperature range from -20°C to 60°C suits diverse industrial environments.
Complies with CSA, IEC/EN 60947, VDE 0660, and UL standards for reliable industrial use.

Product Description

Eaton 277949 DILM150-XHI31 Auxiliary Contact is a high-quality electrical component designed to enhance the functionality of motor starters and control circuits by providing accurate switching signals.

This auxiliary contact features 4 contacts in a 3 normally open and 1 normally closed configuration, enabling efficient monitoring of 4 circuits simultaneously. Its front mounting system facilitates quick and secure attachment to Eaton's DILM series contactors, ensuring streamlined installation and maintenance.

Rated for 16 A contact current and dual voltage operation of 220 V DC and 500 V AC, it offers broad versatility for various industrial applications including automation, manufacturing, commercial lighting, and HVAC systems.

The device includes screw-type terminals, ensuring reliable electrical connections that resist loosening due to vibrations or mechanical impact, thereby maintaining consistent performance in challenging environments.

Engineered for durability, this auxiliary contact endures approximately 1.3 million mechanical operations, representing long service life and reduced downtime in critical control systems.

Designed according to industry standards such as CSA, IEC/EN 60947, VDE 0660, and UL, it provides assured compliance for safety and operational reliability. Operating reliably in ambient temperatures ranging between -20°C and +60°C, it accommodates demanding industrial environmental conditions.

The unit's 4-pole contact arrangement allows comprehensive circuit monitoring. Front mount installation is optimized for compatibility with Eaton's DILM contactors. High mechanical life ensures sustained operational reliability.

Wide temperature tolerance supports diverse industrial environments. Compliance with international standards guarantees product quality and safety. Package contains 1 Eaton 277949 DILM150-XHI31 Auxiliary Contact unit. Explore more Auxiliary Contacts and industrial electrical components in the Electronics & Electricals category at EnvMart to meet your control gear requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a contact configuration of 3 normally open (NO) and 1 normally closed (NC), allowing for efficient monitoring of multiple circuits simultaneously.

The contact current rating for this unit is 16 amperes, suitable for handling robust electrical loads.

It operates at 220 V DC and 500 V AC, providing versatile voltage compatibility for various applications.

This auxiliary contact is rated for approximately 1.3 million mechanical operations, ensuring a long service life.

It can operate in ambient temperatures ranging from -20°C to +60°C, accommodating diverse industrial environments.

This model features a front mount design, facilitating quick and secure attachment to Eaton's DILM series contactors.

It includes screw-type terminals, which provide secure and vibration-resistant electrical connections.

It complies with CSA, IEC/EN 60947, VDE 0660, and UL standards, ensuring safety and operational reliability.

The rated insulation voltage for this unit is 690 V, which contributes to its high dielectric strength and safety.

This unit has a 4-pole single throw (4PST) configuration, allowing for comprehensive circuit monitoring.

The operational current (Ie) for this model is rated at 6 A, suitable for various control applications.

The country of origin for this unit is India, indicating where it was produced.
