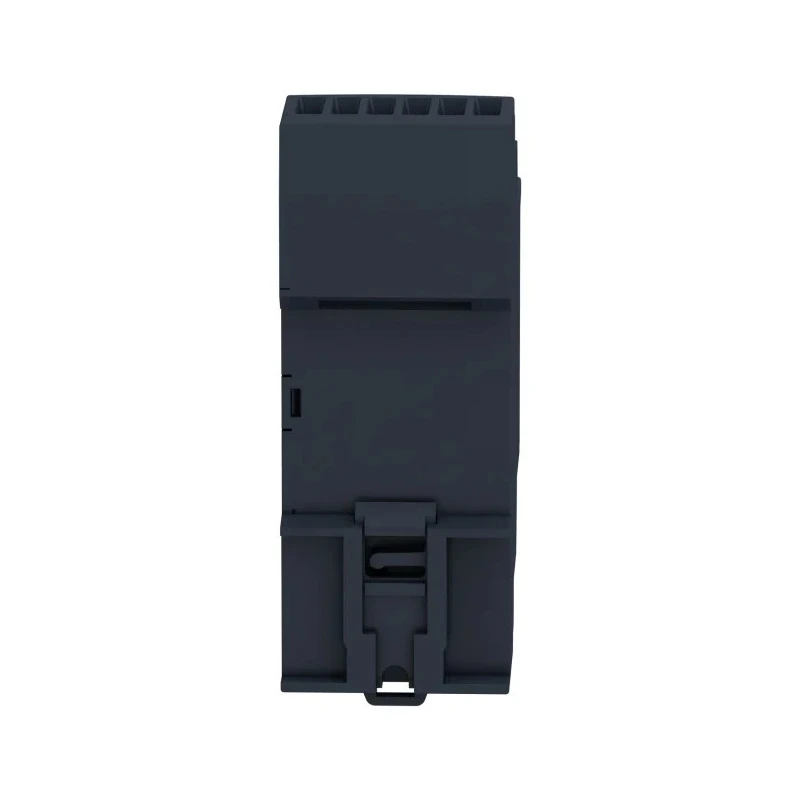

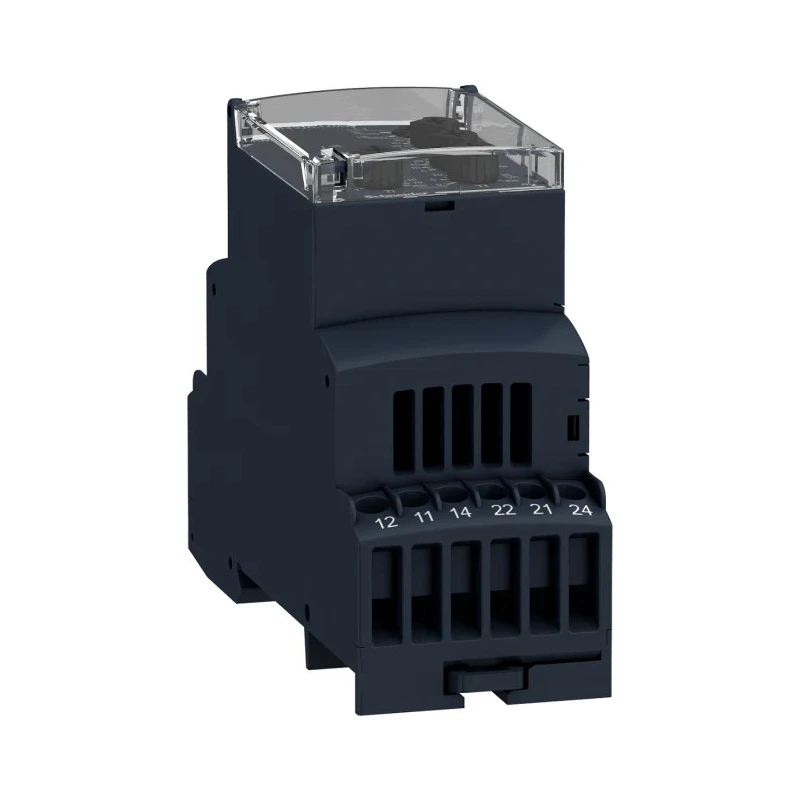

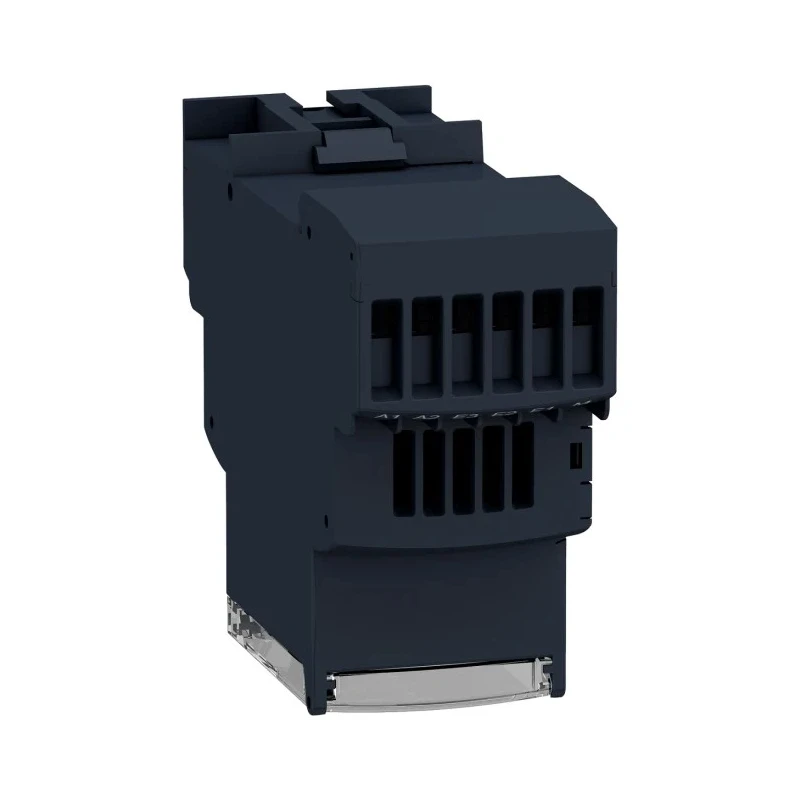

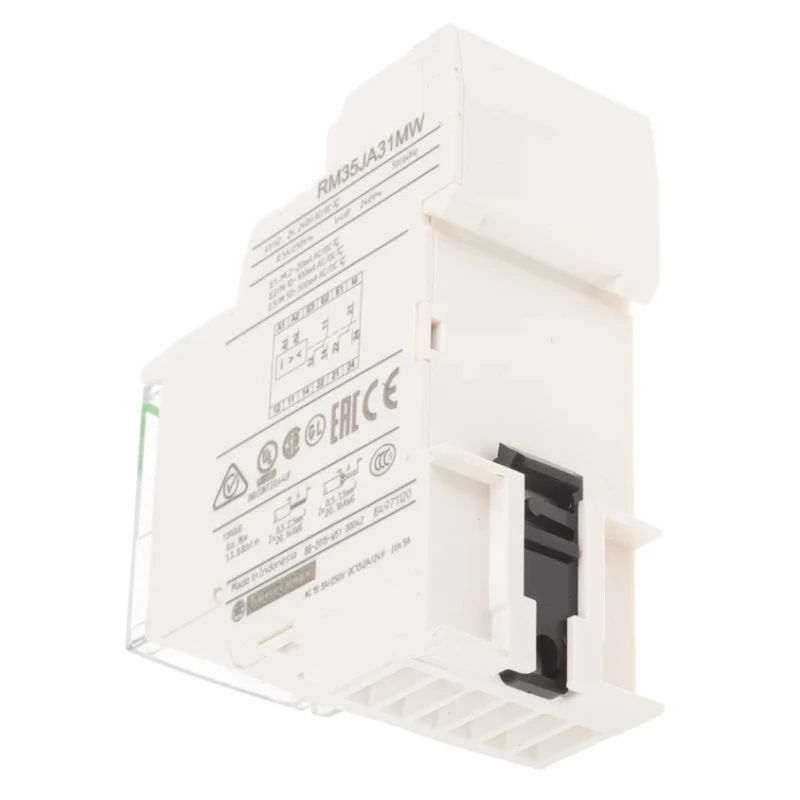

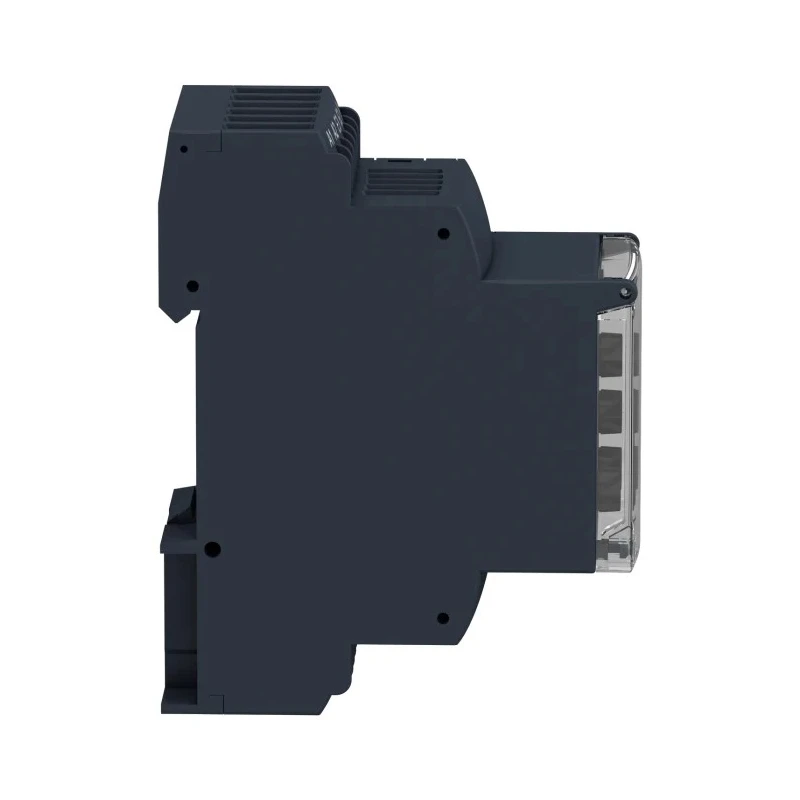

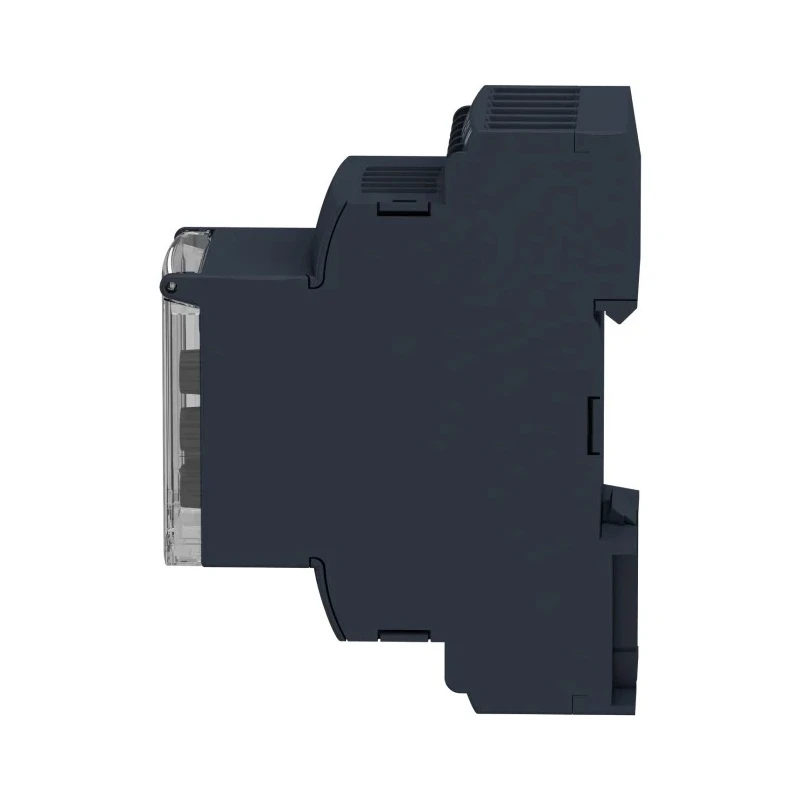

Schneider Electric Monitoring Relay, 1 Phase, DPDT Contact, DIN Rail Mount, 2mA to 500mA Current Range, 240 V RM35JA31MW

Schneider Electric RM35JA31MW monitoring relay is designed for accurate current monitoring and protection in automation, industrial, and electrical applications. It supports single-phase power systems and employs a DPDT contact configuration to provide reliable switching capabilities and ensure robust electrical control.

The device accommodates a wide current sensing range from 2mA to 500mA, enabling detection of both undercurrent and overcurrent conditions, thereby protecting critical machinery and equipment from electrical faults. The adjustable time delay function (0.3 to 30 seconds) allows users to tailor response timing according to specific operational requirements, thus enhancing system flexibility and reducing nuisance trips.

Designed for DIN rail mounting, the RM35JA31MW is compact with dimensions of 90mm (height), 72mm (length), and 35mm (width). It uses screw terminals for secure and versatile wiring, facilitating easy installation and maintenance in electrical panels. The relay supports a supply voltage range of 20.4V to 264V AC/DC, making it compatible with varied electrical environments.

The relay contacts are rated for 5A of current and can switch up to 250V AC/DC, ensuring it can control a variety of loads safely. Its IP20 and IP30 ingress protection ratings make this product suitable primarily for indoor industrial and commercial applications. Compliance with CE, CSA, and UL standards confirms its manufacturing quality and safety adherence.

Typical use cases include monitoring of critical industrial machinery, integration into automation control systems, and use in electrical installations requiring precise current measurement and protection. The Schneider Electric Harmony Control series, to which this product belongs, is known for reliability and high mechanical durability, rated up to 30 million operating cycles.

Operates within a current sensing range of 2mA to 500mA to detect undercurrent and overcurrent conditions. Supports supply voltages up to 240V AC and 240V DC for versatile power compatibility. Features adjustable time delay from 0.3 to 30 seconds for customized response times.

Equipped with screw terminals for secure and flexible wiring connections. IP20 and IP30 rated for indoor use with reliable protection against solid ingress. Relay contact current rating of 5A suitable for controlling various loads.

Compact dimensions: 90mm height, 72mm length, and 35mm width for space-efficient installation. Complies with CE, CSA, and UL standards ensuring industrial safety and reliability. Explore more Schneider Electric Monitoring Relays and electrical control products in the EnvMart catalog to optimize your industrial automation and electrical protection systems.
