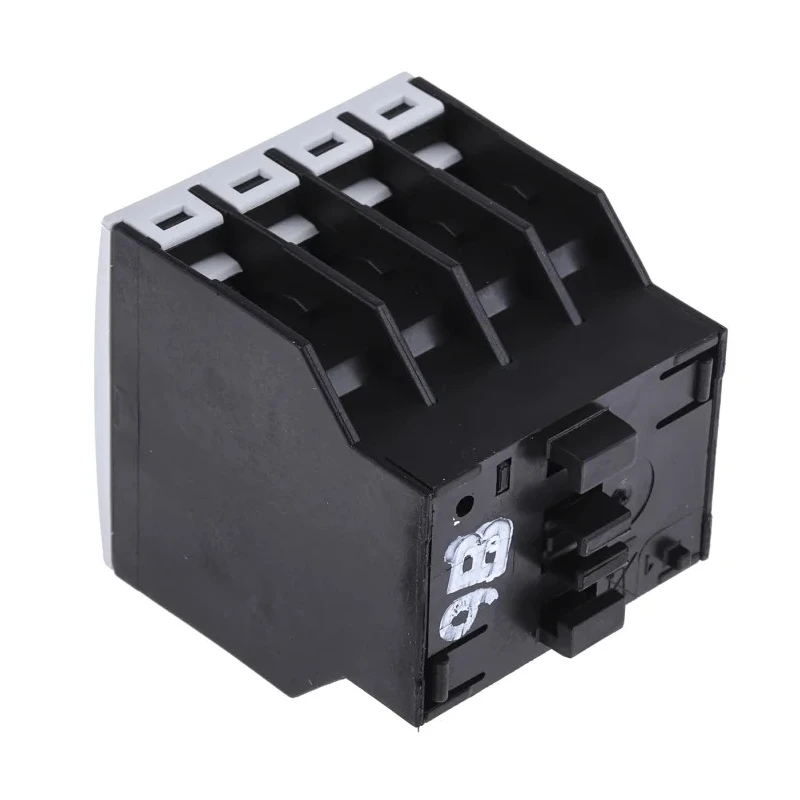

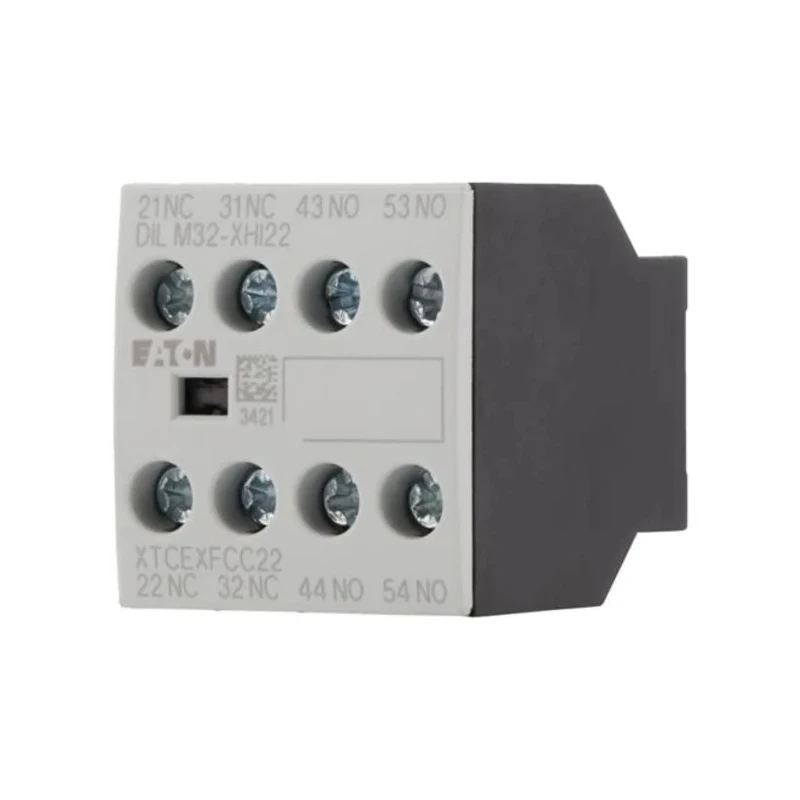

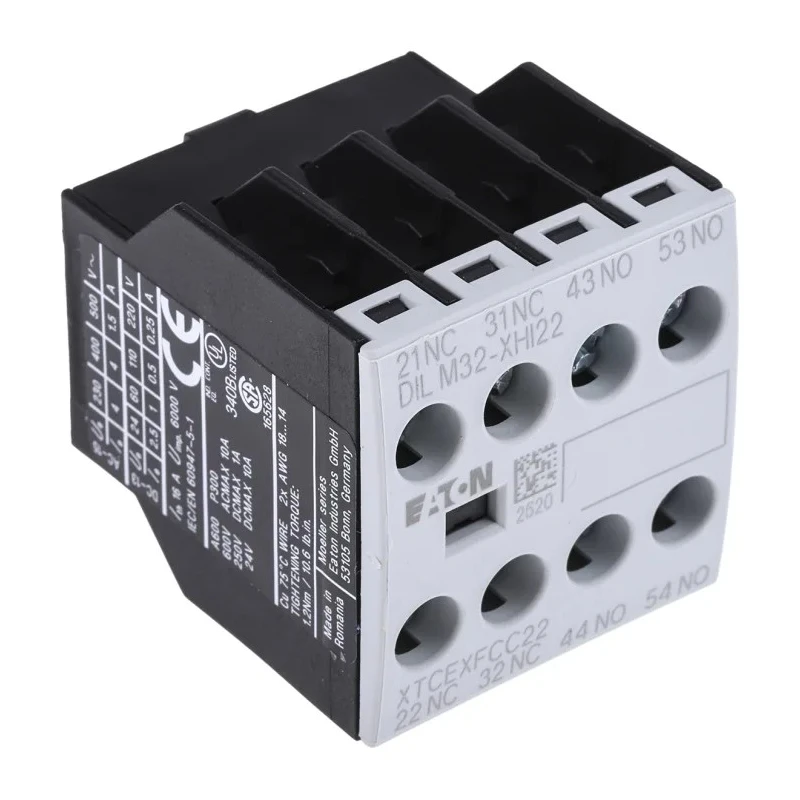

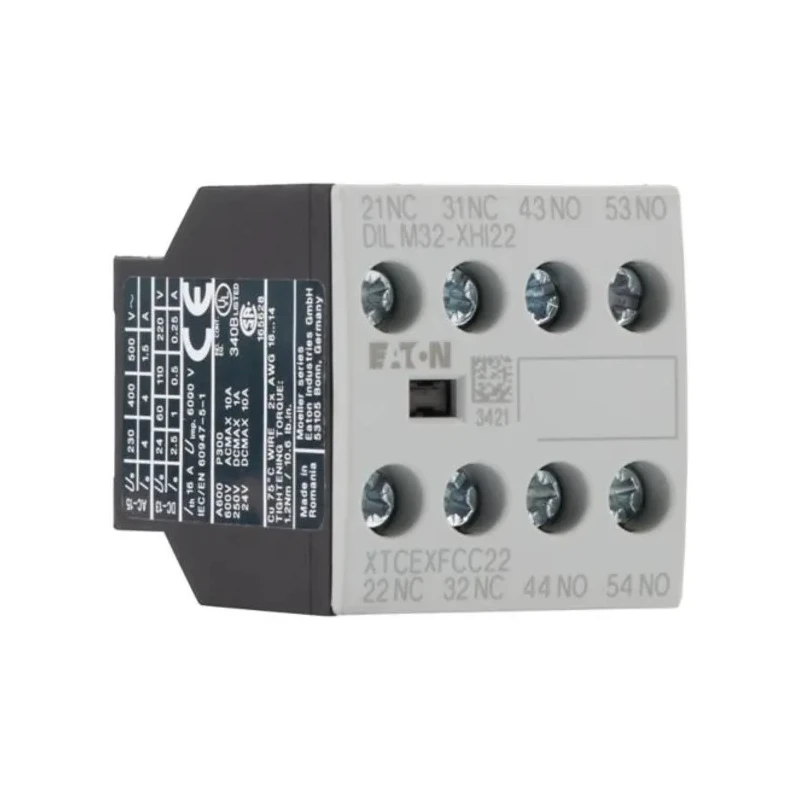

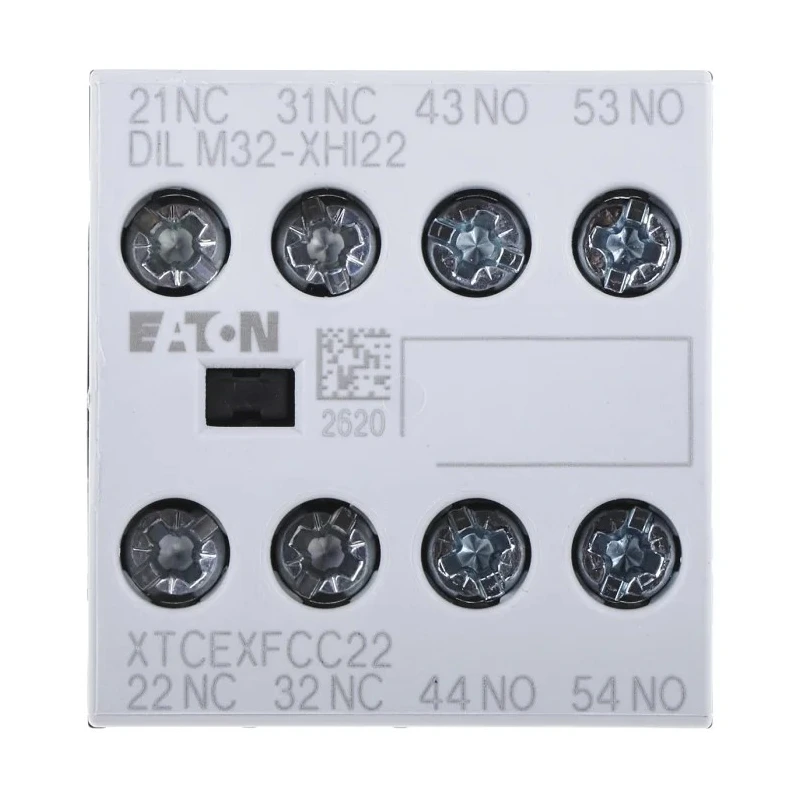

Eaton Auxiliary Contact 4 Contacts 2 NC/2 NO Front Fixing 16 A 500V AC 277377 DILM32-XHI22
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 277377 DILM32-XHI22 |
| Mount Type | Front Fixing |
| Series | DILM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Mounting Location | Front |
| Standards/Approvals | CE marking, UL, VDE 0660, IEC/EN 60947, CSA |
| Number of Contacts | 4 |
| Contact Voltage | 500V ac |
| Normal State Configuration | 2 NC/2 NO |
| Contact Current | 16A |
| Operational Current Ie | 4A |
| Pole and Throw Configuration | 4P |
| Mechanical Durability | 1300000Operations |
| Rated Insulation Voltage Ui | 690V |
Key Features
- The device is engineered for robust industrial use with a high mechanical durability of 1.3 million operations.
- It supports a contact current rating of 16 A and an operational current of 4 A for reliable switching.
- Front fixing mount type and screw terminal connections facilitate easy and secure installation.
- The contact voltage is rated at 500V AC with rated insulation voltage Ui of 690V, ensuring electrical safety.
- Wide operating temperature range from -25°C to 60°C supports harsh environment applications.
- Compliance with CE, UL, VDE 0660, IEC/EN 60947, and CSA standards guarantees quality and safety.
- Compact 4-pole configuration is suitable for integration with DILM series contactors.
- Impulse withstand voltage of 6,000V AC offers surge protection.
Product Description
Eaton 277377 DILM32-XHI22 Auxiliary Contact is a high-quality industrial electrical component designed for seamless integration with DILM series contactors. It offers 4 contact points configured as 2 normally closed (NC) and 2 normally open (NO), suitable for monitoring and control in automation and power distribution systems.
This auxiliary contact is front fixing type with screw terminal connections, delivering secure and tool-free installation that enhances maintenance efficiency. Rated for a contact current of 16 A and operational current of 4 A, it supports demanding switching operations in electrical circuits.
The contact voltage rating is 500V AC, and the rated insulation voltage reaches 690V, ensuring excellent electrical isolation. Its mechanical durability is notable, rated at 1.3 million operations, promising a long service life even under frequent switching conditions.
The device functions effectively within a broad temperature range of -25°C to +60°C and has an impulse withstand voltage of 6,000V AC to maintain reliable performance against electrical surges. The IP20 protection rating safeguards against accidental contact with solid objects over 12 mm in size.
Certified to rigorous international standards including CE marking, UL, VDE 0660, IEC/EN 60947, and CSA, this auxiliary contact meets high safety and quality benchmarks required in industrial environments. Typical applications include motor starters, power distribution panels, and automation control gear.
The product has four contacts configured as 2 NC and 2 NO for versatile control signals. Front fixing mount style offers easy and secure attachment to compatible contactors. Supports a rated operational voltage of 500V AC and 16 A contact current.
Impedance against surges up to 6,000V AC ensures robust durability. Compliant with international safety and quality standards.
This Eaton auxiliary contact is manufactured in Germany, reflecting stringent production quality. It is an ideal choice for electrical engineers and technicians looking for reliable Auxiliary Contacts in industrial automation, manufacturing, HVAC, and power management applications.
Explore more high-quality electrical control components and automation equipment to optimize your industrial installations at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 4 contacts, consisting of 2 normally closed (NC) and 2 normally open (NO) contacts.
The contact current rating for this auxiliary contact is 16 A, allowing it to handle demanding electrical switching operations.
It has an operational current rating of 4 A, suitable for reliable switching applications.
The rated contact voltage is 500V AC, ensuring it can be used in various high-voltage applications.
This unit operates effectively within a temperature range of -25°C to +60°C, making it suitable for harsh environments.
It features a front fixing mount type, which allows for easy and secure installation.
The auxiliary contact complies with several standards, including CE marking, UL, VDE 0660, IEC/EN 60947, and CSA, ensuring its quality and safety.
This device has a mechanical durability rated at 1.3 million operations, promising a long service life under frequent use.
The rated insulation voltage (Ui) for this unit is 690V, providing excellent electrical isolation.
It has an impulse withstand voltage of 6,000V AC, offering protection against electrical surges.
This auxiliary contact uses screw terminal connections, facilitating secure and tool-free installation.
This model is manufactured in Germany, reflecting stringent production quality standards.
