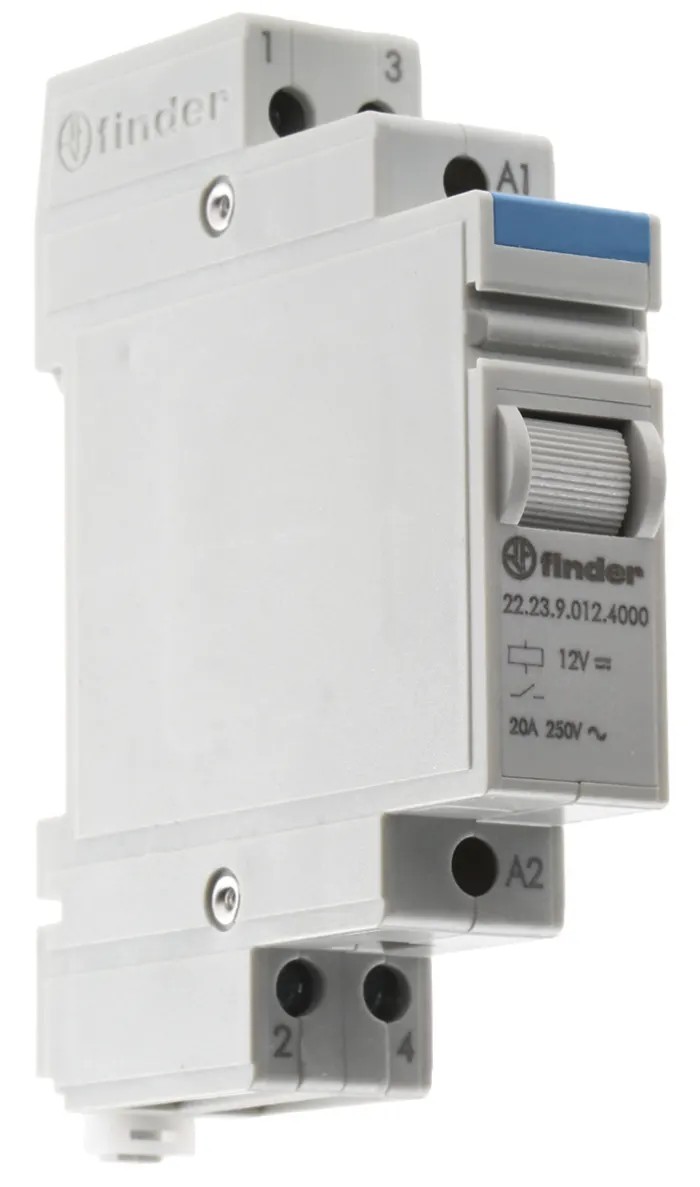

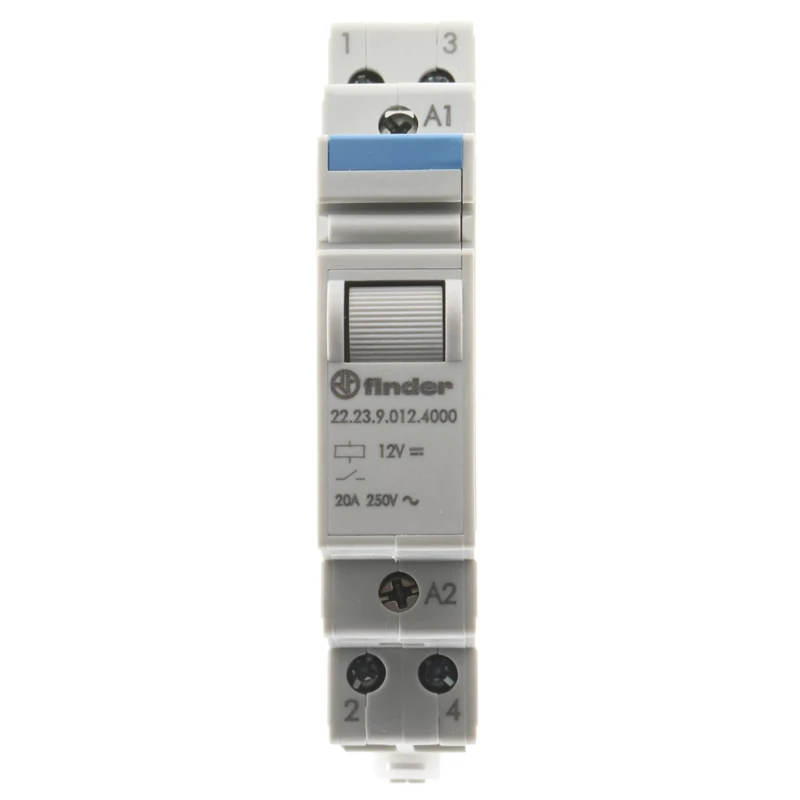

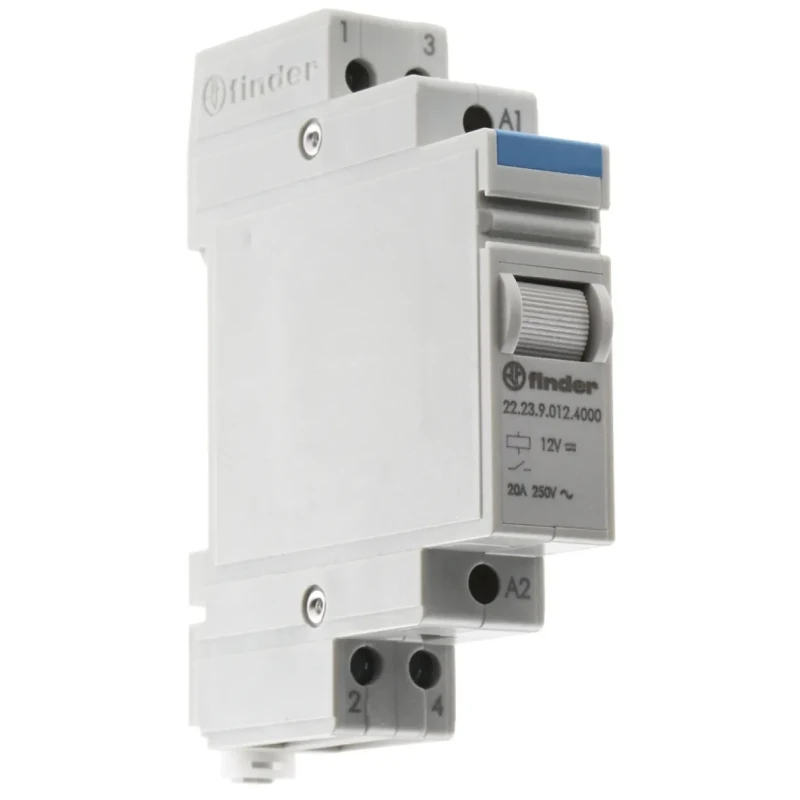

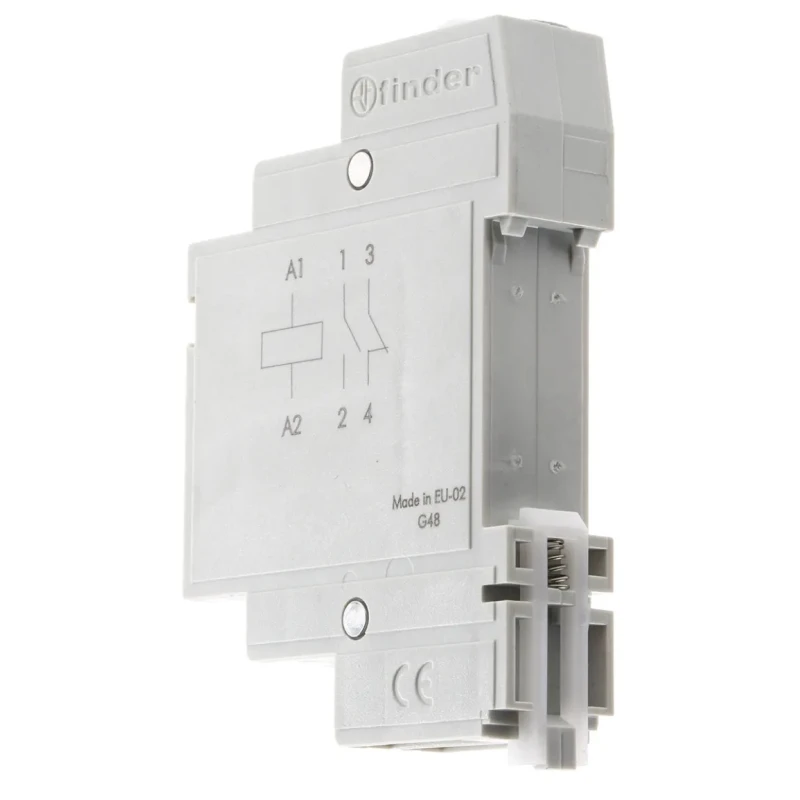

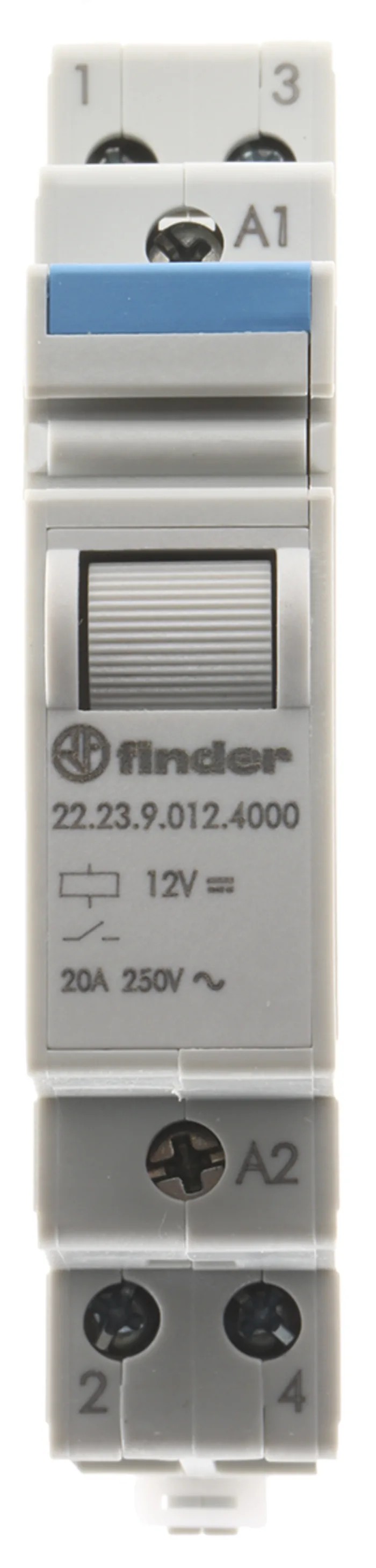

Finder DIN Rail Power Relay, 12V DC Coil Voltage, 20A Switching Current, Screw Terminal, Silver Alloy 22.23.9.012.4000
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 84mm |
| Length | 58.4mm |
| Width | 58.4mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | 22 |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | Screw |
| Standards/Approvals | CE, EAC, RoHS, EN |
| Coil Resistance | 115Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.25W |
Key Features
- Equipped with silver alloy contacts for enhanced durability and long life.
- Designed for DIN rail mounting with screw terminal connections for secure installation.
- Operates efficiently with a coil resistance of 115Ω and coil power of 1.25W.
- Supports switching voltages up to 250V AC and switching power up to 5 kVA.
- Operates reliably within a temperature range of -40°C to 40°C.
- Compact dimensions with 58.4mm length, 58.4mm width, and 84mm height.
- Conforms to CE, EAC, RoHS, and EN standards ensuring compliance and safety.
- Ideal for controlling lighting systems, streetlight and pump control applications in industrial environments.
Product Description
Finder 22.23.9.012.4000 DIN Rail Power Relay features a coil voltage of 12V DC and supports a switching current of 20A, designed specifically for industrial automation and control applications.
This relay incorporates silver alloy contacts that provide robust electrical performance and enhanced longevity, making it suitable for various electrical loads including incandescent and fluorescent lamps. The product is mounted on a DIN rail with secure screw terminal connections accommodating wire sizes up to 2.5mm.
The relay operates under a wide temperature range of -40°C to 40°C, with a coil resistance of 115Ω and coil power consumption of 1.25W, ensuring efficient energy use. It supports a maximum switching voltage of 250V AC and switching power up to 5kVA, capable of handling office, commercial, streetlight, garden, and bathroom lighting control as well as pump control systems.
Its compact form factor measuring 58.4mm in length and width and 84mm in height allows for versatile, space-efficient installation on standard DIN rails. The relay complies with CE, EAC, RoHS, and EN certifications, providing safety and reliability for industrial and commercial uses. The dielectric strength of 4 kV ensures insulation safety between coil and contacts.
Equipped with silver alloy contacts for high durability. Supports switching power up to 5 kVA for versatile load management. Designed for quick DIN rail mounting with screw-type terminals. Wide operational temperature range from -40°C to 40°C.
Low coil power of 1.25W for energy-efficient operation. Compliance with multiple international standards including CE and RoHS. Ideal for lighting control and pump automation in industrial settings.
This reliable Power Relay is manufactured in Italy and is suitable for use in electrical automation, manufacturing, HVAC, and other commercial environments requiring robust and efficient relay solutions.
Explore the Electronics & Electricals category at EnvMart for more high-quality relays and contactors designed to meet diverse industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V DC.
It can handle a maximum switching current of 20A.
This model has dimensions of 58.4mm in length, 58.4mm in width, and 84mm in height.
The maximum switching voltage supported by this relay is 250V AC.
This relay uses screw terminals for secure connections.
The coil resistance of this power relay is 115Ω.
It operates reliably within a temperature range of -40°C to 40°C.
The coil power consumption of this relay is 1.25W.
The contacts in this relay are made of silver alloy, which enhances durability.
This relay complies with CE, EAC, RoHS, and EN standards.
This power relay is suitable for controlling lighting systems, streetlights, and pump control applications in industrial environments.
This model is manufactured in Italy.
