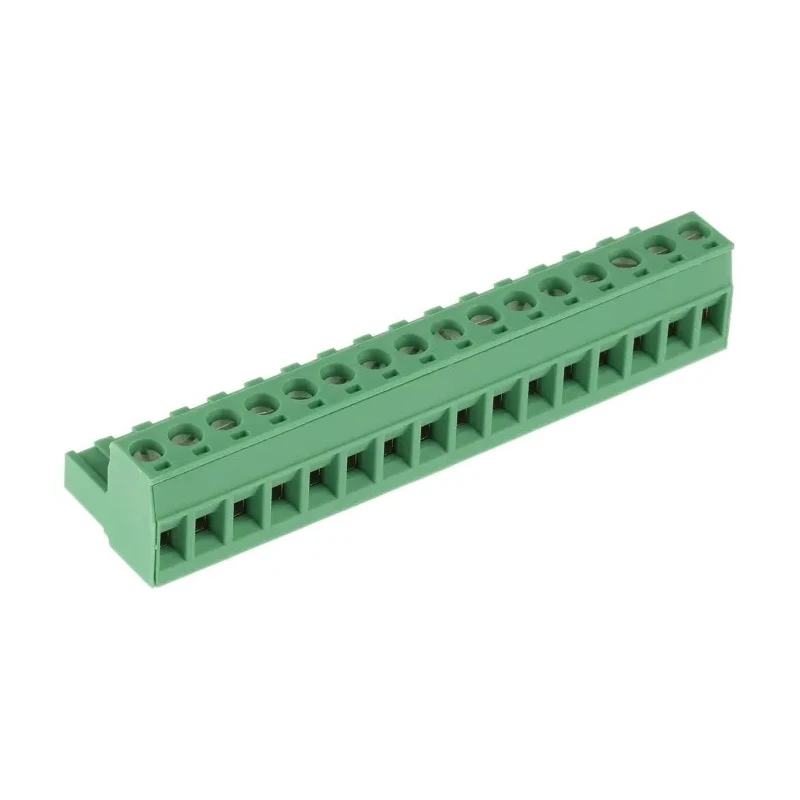

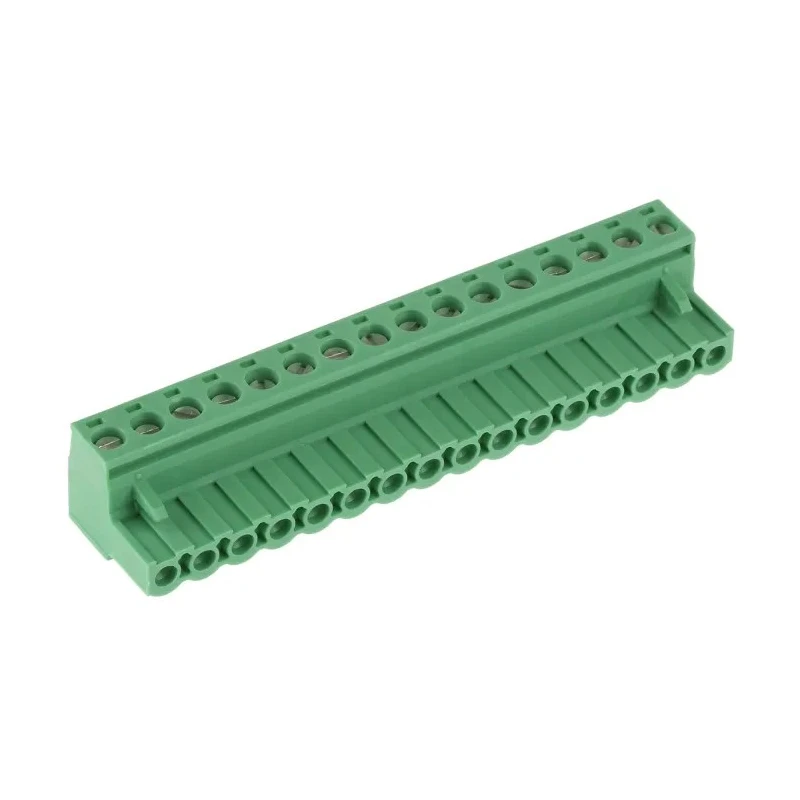

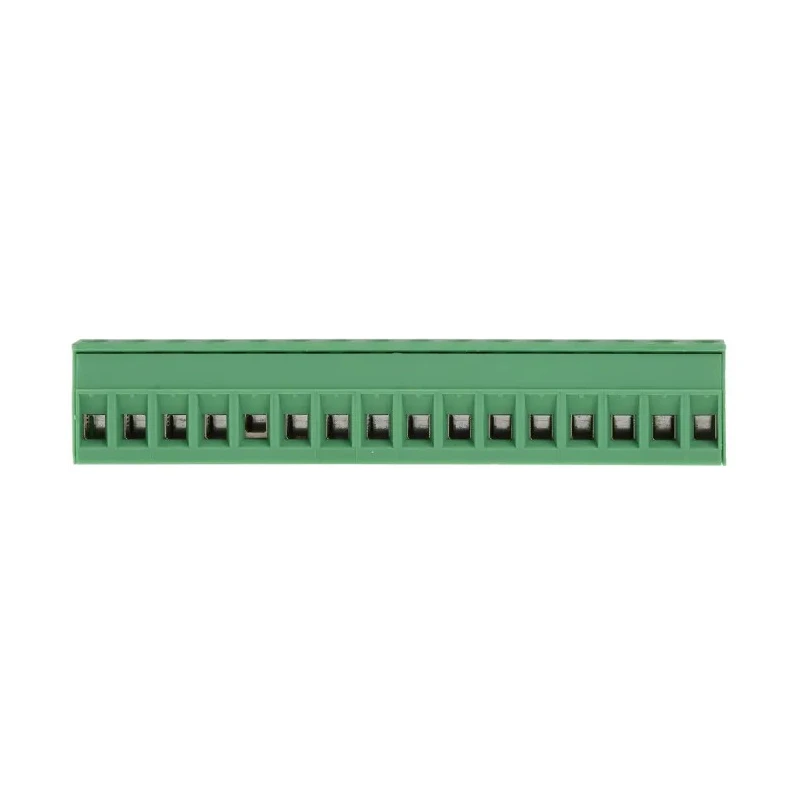

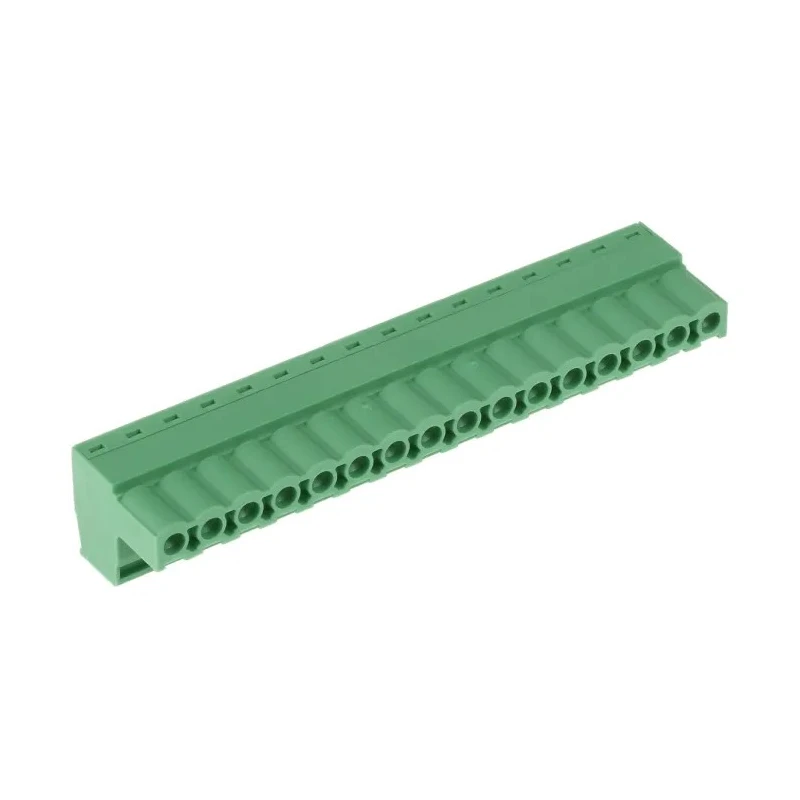

Phoenix Contact MSTB 2.5/16-ST-5.08 Series Pluggable Terminal Block, 16-Contact, 5.08 mm Pitch, 1 Row, Green 1757158
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 18.3mm |
| Model | 1757158 |
| Depth | 15mm |
| Width | 81.28mm |
| Housing Material | Polyamide |
| Series | MSTB 2.5/16-ST-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 16 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring Cage |
Key Features
- The connector has 16 contact points arranged in one row for efficient PCB wiring.
- 5.08 mm pitch spacing provides standard compatibility for PCB mounting.
- Supports wire sizes from 24 AWG to 12 AWG, accommodating a range of wiring needs.
- Its spring cage connection method ensures secure and vibration-resistant wire termination.
- Constructed with green polyamide housing for impact resistance and electrical insulation.
- Operates reliably at voltages up to 250V and currents up to 12 Amps.
- Compact dimensions with a length of 18.3 mm, width of 81.28 mm, and depth of 15 mm.
- Designed for straight orientation wiring to facilitate easy PCB board connections.
Product Description
Phoenix Contact 1757158 MSTB 2.5/16-ST-5.08 Series pluggable terminal block is a high-quality connector designed for electrical and automation applications requiring reliable PCB wiring. Featuring 16 contacts with a 5.08 mm pitch arranged in a single row, it enables multiple wire connections to printed circuit boards efficiently.
The terminal block's green polyamide housing offers robust impact resistance and excellent electrical insulation, ensuring safe signal transmission. Its spring cage wire connection provides secure, vibration-resistant clamping without requiring complex tooling, supporting wire sizes from 24 AWG (0.2 mm²) up to 12 AWG (1.5 mm²).
This connector supports nominal operating currents up to 12 Amps and voltages of up to 250 Volts, making it suitable for various power and signal distribution tasks in industrial electrical systems, automation, and control panels.
The compact form factor, with overall dimensions of 81.28 mm width, 18.3 mm length, and 15 mm depth, facilitates easy integration into PCB layouts while maintaining a straight orientation for clean wiring management.
Though it does not claim additional safety approvals, it meets IEC durability and thermal resistance standards appropriate for demanding environments. Originating from Germany, this product aligns with Phoenix Contact's reputation for quality and operational reliability.
The connector features 16 contact points arranged in one row with a 5.08 mm pitch. Green polyamide housing ensures electrical insulation and mechanical strength. Spring cage connection secures wire sizes from 0.2 mm² to 1.5 mm² effectively.
Rated for 12 Amp current capacity and 250 Volt nominal voltage. Compact dimensions allow straightforward PCB integration with a straight orientation. Suitable for use in industrial automation, electrical systems, and control panels.
Manufactured in Germany, emphasizing quality and durability. Explore EnvMart's range of electronic components for reliable Pluggable Terminal Blocks and connectors suited for industrial, manufacturing, and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates reliably at voltages up to 250V and currents up to 12 Amps.
The contacts are arranged with a pitch of 5.08 mm, allowing for standard compatibility with PCB mounting.
It supports wire sizes from 24 AWG (0.2 mm²) to 12 AWG (1.5 mm²).
The housing is made of green polyamide, which provides impact resistance and electrical insulation.
This model features 16 contact points arranged in a single row.
It has compact dimensions of 81.28 mm in width, 18.3 mm in length, and 15 mm in depth.
It utilizes a spring cage connection method for secure and vibration-resistant wire termination.
It is designed for straight orientation wiring, facilitating easy connections to PCB boards.
It is manufactured in Germany, aligning with standards for quality and operational reliability.
This model is part of the MSTB 2.5/16-ST-5.08 series of pluggable terminal blocks.
It is suitable for various power and signal distribution tasks in industrial electrical systems, automation, and control panels.
While it does not claim additional safety approvals, it meets IEC durability and thermal resistance standards appropriate for demanding environments.
