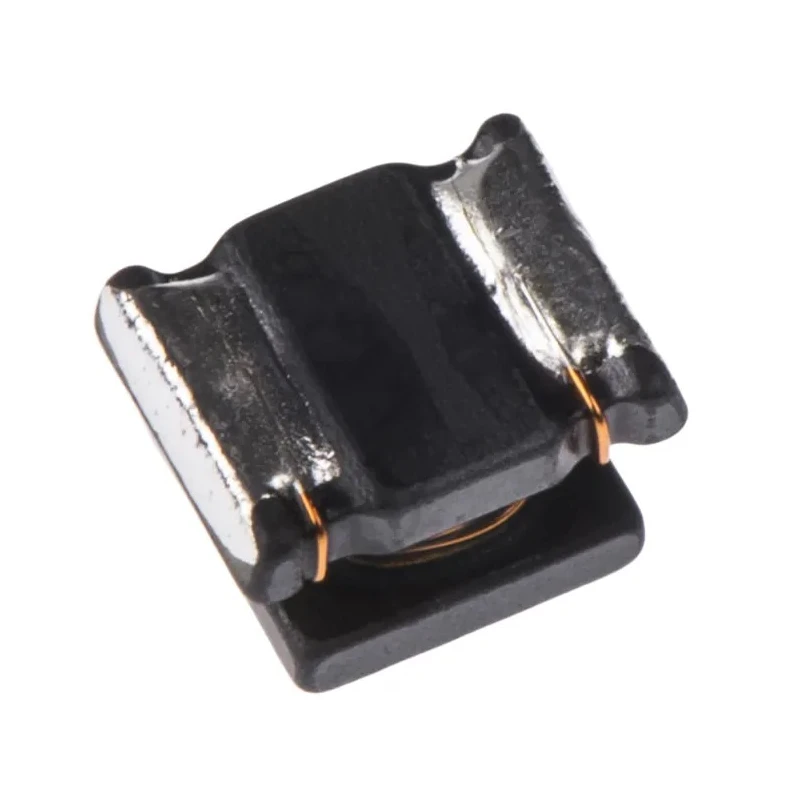

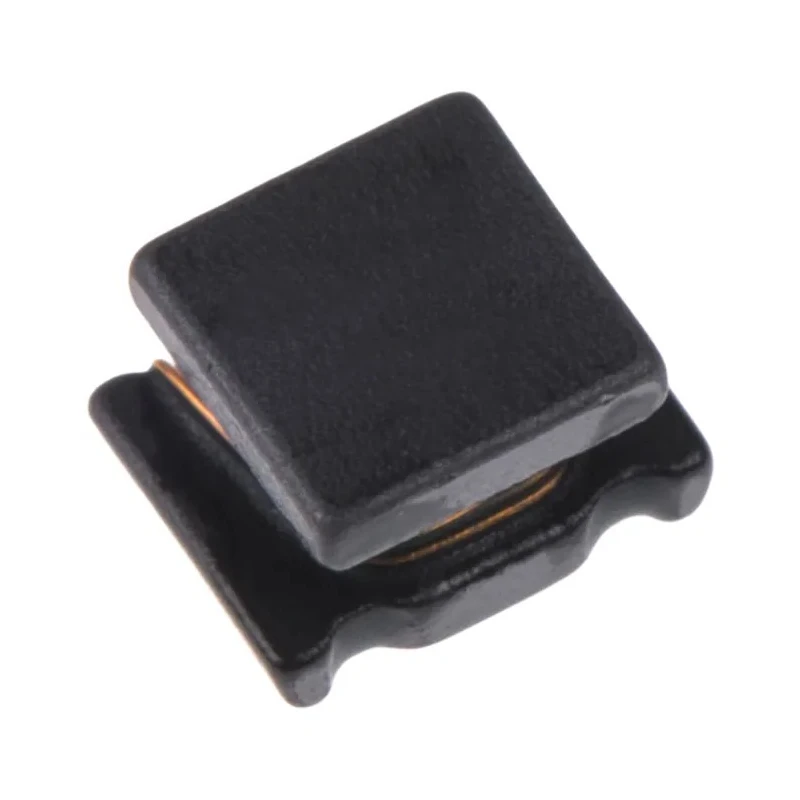

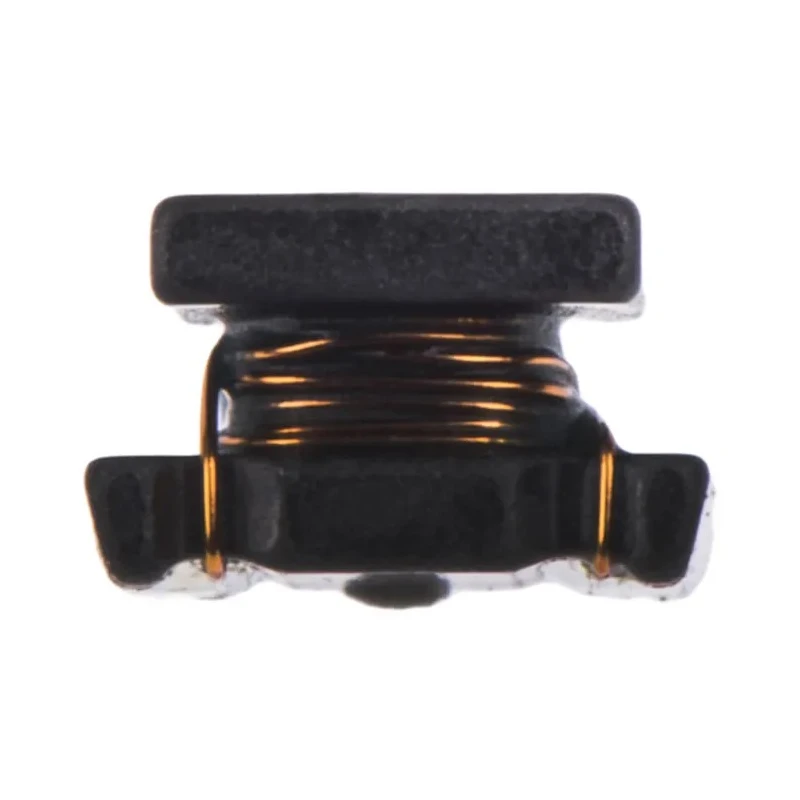

Murata Wirewound Surface Mount Inductor 10 μH ±10 % 300 mA Idc Ferrite Core 1210 Package LQH32CN100K23L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 3.2mm |
| Model | LQH32CN100K23L |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 300mA |
| Pin Count | 2 |
| Maximum DC Resistance | 440mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 26MHz |
| Inductor Construction | Wirewound |
| Inductor,SMT,10uH,300mA,0.44 Ohm,40MHzBrand | Murata |
Key Features
- This 1210 package inductor offers low DC resistance of 440 mΩ for efficient performance.
- The inductor features solder termination style with a molded wirewound construction.
- It operates in temperatures ranging from -40°C to 85°C with high temperature stability.
- Designed for filtration in switch mode power supplies and other electronic circuits.
- Features a maximum self-resonant frequency of 26 MHz suitable for high-frequency applications.
- The ferrite core material minimizes losses and improves inductance consistency.
- Supplied in embossed tape packaging for surface mount device assembly efficiency.
Product Description
Murata LQH32CN100K23L is a wirewound surface mount inductor designed with a ferrite core, providing an inductance value of 10 μH with a ±10 % tolerance. It supports a maximum DC current of 300 mA and comes in a 1210 package size, measuring 3.2 mm in length, 2 mm in height, and 2.5 mm in depth, making it compact for dense PCB assemblies.
This inductor features a molded wirewound construction and a solder termination style, ensuring robust mechanical and electrical connections. The maximum DC resistance is 440 mΩ, which contributes to low voltage drop and power loss, essential in power supply circuits.
The product operates reliably within a temperature range of -40°C to 85°C, providing high temperature stability, suitable for automotive and industrial-grade electronics that require durability under varying environmental conditions.
With a maximum self-resonant frequency of 26 MHz, this inductor is ideal for high-frequency filtration applications in switch mode power supplies and other electronic circuits. The ferrite core enhances performance by reducing losses and stabilizing inductance.
Packaging is embossed tape designed for automated surface mount technology (SMT) assembly processes, improving manufacturing efficiency. Originating from Japan, this component complies with RoHS standards ensuring environmentally safe manufacturing.
This inductor is extensively used in industrial electronics for power filtration and noise suppression. It delivers consistent inductance necessary for precision in power circuits and signal conditioning. Its compact size makes it suitable for high-density mounting in commercial and industrial electronic devices.
Murata’s quality manufacturing ensures long-term reliability in harsh operating environments. This component supports designers aiming for optimized power supply efficiency and stable circuit operation. Explore more Murata Inductors and similar electronic components in the Electronics Components category at EnvMart for diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with a tolerance of ±10%.
It supports a maximum DC current of 300 mA.
This inductor measures 3.2 mm in length, 2 mm in height, and 2.5 mm in depth.
The maximum self-resonant frequency is 26 MHz, making it suitable for high-frequency applications.
It operates reliably within a temperature range of -40°C to 85°C.
The core material is ferrite, which helps minimize losses and improve inductance consistency.
The maximum DC resistance is 440 mΩ, contributing to low voltage drop and power loss.
It features a solder termination style for robust mechanical and electrical connections.
It is supplied in embossed tape packaging, designed for surface mount device assembly efficiency.
This component complies with RoHS standards, ensuring environmentally safe manufacturing.
It is extensively used in industrial electronics for power filtration and noise suppression.
This inductor belongs to the LQH series, designed for various electronic applications.
