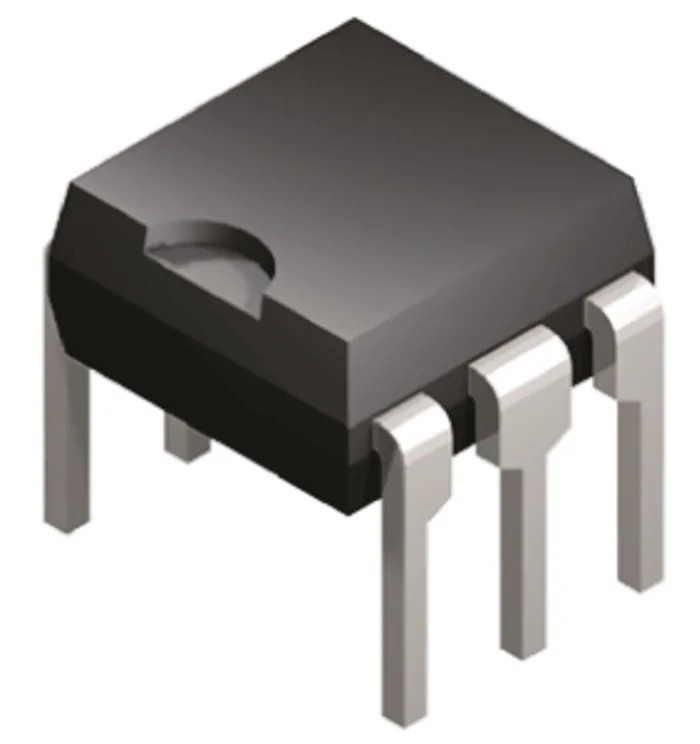

Isocom DC Input Phototransistor Output Optocoupler Through Hole 6-Pin PDIP 4N35X
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Isocom |
| Model | 4N35X |
| Packaging | Bulk or Tape & Reel |
| Mount Type | Through Hole |
| Output type | Phototransistor |
| Series | 4N35 |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | CECC 00802 (SMD), BSI Certificate No. 8001, VDE 0884, UL, File No. E91231 |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 6 |
| Input Current Type | DC |
| Typical Rise Time | 3.5μs |
| Maximum Current Transfer Ratio | 100% |
| Typical Fall Time | 2μs |
| Isocom, CNY17-3X Transistor Output Optocoupler, Through Hole, 6-Pin DIPBrand | Isocom |
Key Features
- Consists of a Gallium Arsenide infrared emitting diode and NPN silicon phototransistor.
- Through hole mount type with 6 pins in a PDIP package.
- Maximum forward voltage of 1.5V and maximum input current of 60mA.
- Typical rise time of 3.5 microseconds and fall time of 2 microseconds for fast switching.
- Operates reliably between -55°C to 100°C temperature range.
- Offers high isolation voltage of 5.3kVrms for electrical safety.
- Complies with CECC 00802, BSI Certificate No. 8001, VDE 0884, and UL File No. E91231 standards.
- Cost-effective dual-in-line package for easy circuit integration.
Product Description
The Isocom 4N35X is a DC input phototransistor output optocoupler designed for reliable electrical isolation between high voltage and low voltage circuits. It integrates a Gallium Arsenide infrared LED and a silicon NPN phototransistor in a 6-pin dual-in-line through-hole PDIP package, offering a cost-effective solution for industrial, electronic component, and manufacturing applications.
This optocoupler features a maximum forward voltage of 1.5V and a maximum input current rating of 60mA, allowing efficient signal transmission with minimal power loss. The device provides a typical rise time of 3.5 microseconds and a fall time of 2 microseconds, suitable for switching applications requiring fast response.
Operating within a temperature range from -55°C to 100°C, the 4N35X is well-suited for demanding environments. Its high isolation voltage of 5.3kVrms ensures robust protection against electrical surges and noise, making it ideal for use in electronic isolation, signal conditioning, and communication interfaces.
Certified against CECC 00802 (SMD), BSI Certificate No. 8001, VDE 0884, and UL File No. E91231 standards, this optocoupler guarantees quality and consistent performance in industrial and laboratory circuits.
The 4N35X is packaged as bulk or tape & reel for flexible assembly options. Its low cost dual-in-line package enables easy through-hole mounting on printed circuit boards. Applications include industrial automation, control systems, signal isolation, and power supply feedback.
Consists of a Gallium Arsenide infrared LED and an NPN silicon phototransistor in PDIP 6-pin package. Through hole mounting type for easy soldering and robust mechanical connection. High isolation voltage of 5.3kVrms for secure signal isolation.
Fast typical rise and fall time at 3.5μs and 2μs respectively. Wide operating temperature range from -55°C to 100°C. Meets international safety and quality standards including CECC, BSI, VDE, and UL certifications. Ideal for industrial electronics, power connectors, and optoelectronics applications.
Explore more reliable optocouplers like Isocom 4N35X in the Optocoupler category on EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 60mA.
It operates reliably between -55°C and 100°C.
This unit provides a phototransistor output.
The typical rise time is 3.5 microseconds.
The maximum forward voltage is 1.5V.
It has 6 pins in a PDIP package.
It complies with CECC 00802, BSI Certificate No. 8001, VDE 0884, and UL File No. E91231 standards.
The typical fall time is 2 microseconds.
It is available in bulk or tape & reel packaging.
The isolation voltage is 5.3kVrms.
This model uses through hole mounting for easy soldering.
It is designed for reliable electrical isolation between high voltage and low voltage circuits, making it suitable for industrial automation, control systems, and signal isolation.
