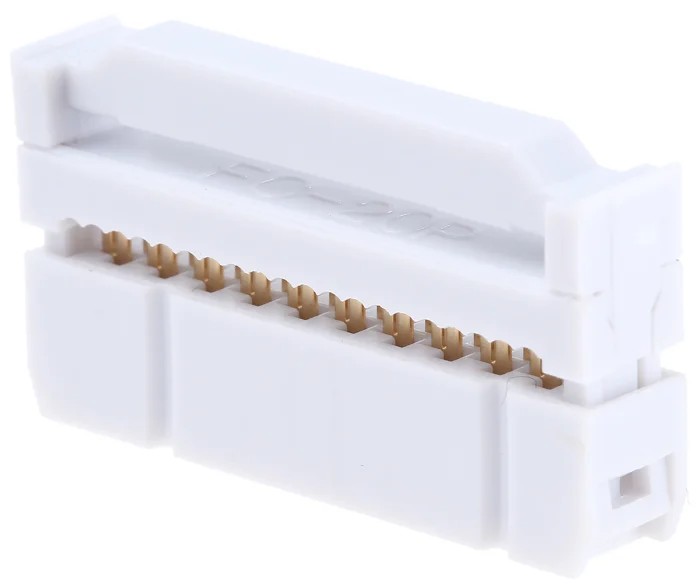

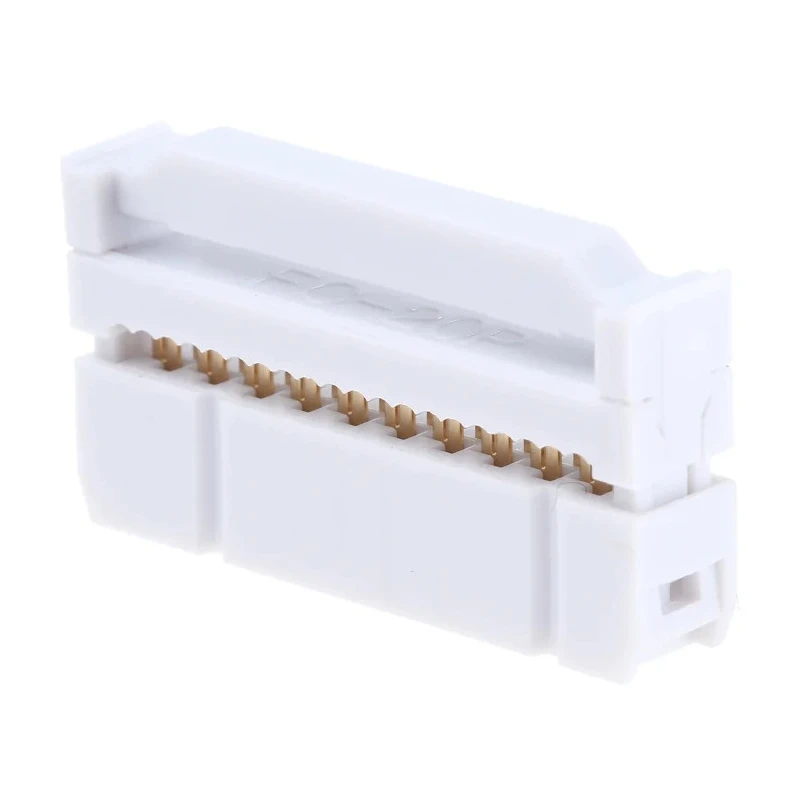

RS PRO 20-Way 2 Row Shrouded Female IDC Connector for Cable, 2.54mm Pitch, 1A Current, 500V Voltage 471-216
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 1A |
| Model | 471-216 |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -45°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| 3M 20-Way IDC Connector Female for Cable, 2 RowBrand | 3M |
| 20 way IDC skt w/strain relief,1A 1500VBrand | HARTING |
Key Features
- Designed with a 20-contact count across two rows for reliable connections.
- Shrouded connector body provides protection and stability during use.
- Gold-plated phosphor bronze contacts ensure excellent conductivity and corrosion resistance.
- Fibreglass reinforced polyethylene terephthalate housing delivers mechanical strength and durability.
- Operates safely from -45°C up to 105°C maintaining performance in extreme conditions.
- Connector terminates via insulation displacement contact (IDC) for efficient cable assembly.
- Straight orientation supports easy cable routing in various electronics setups.
- Complies with IDC standards and is UL recognised for quality assurance.
Product Description
RS PRO 471-216 is a 20-way female IDC connector designed for cable mounting applications. It features a 2.54mm pitch and 2-row contact arrangement suitable for efficient signal transmission and power distribution in electronic systems. Rated at 1 ampere current and 500 volts voltage, this connector supports a wide range of industrial and commercial uses.
Constructed with gold-plated phosphor bronze contacts, it ensures low contact resistance and high reliability. The housing material is a fibreglass reinforced polyethylene terephthalate, giving robustness and thermal stability with operation from -45°C to 105°C. The connector is fully shrouded, enhancing safety and ease of handling.
The termination method is an insulation displacement contact (IDC), enabling fast and secure connection to ribbon cables without needing to strip insulation. Its straight orientation and 2-row structure facilitate neat cable arrangements in complex assemblies.
This product carries UL recognition and adheres to IDC standards but does not have additional approvals. It is suitable for diverse applications including prototype development, medical equipment, consumer electronics, data storage devices, and industrial automation.
20 contacts arranged in two rows support complex wiring needs. Gold plating on contacts protects against corrosion and improves electrical performance. Housing rated UL94V for flame retardance and mechanical protection. Operating temperature range extends from -45°C to 105°C for reliability in harsh environments.
Termination using IDC allows rapid cable assembly and wiring. Shrouded design prevents damage and short circuits during installation and operation. Compatible with BS9525-F0023 standard connectors for interchangeability.
Applications cover electronics prototypes, healthcare devices, consumer gadgets, and industrial automation controls.
This RS PRO IDC Connector is a dependable component that meets stringent industrial standards, making it a preferred choice for engineers and manufacturers. Explore more RS PRO electronic components and connectors by browsing the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector is rated for a current of 1 ampere and a voltage of 500 volts.
The contacts in this model have a pitch of 2.54mm.
The housing is made of fibreglass reinforced polyethylene terephthalate, and the contacts are made of gold-plated phosphor bronze.
It operates safely within a temperature range of -45°C to 105°C.
This connector features a total of 20 contacts arranged in two rows.
It uses insulation displacement contact (IDC) for efficient cable assembly.
Yes, it is suitable for various industrial and commercial applications including prototype development and industrial automation.
This model has a straight orientation, which facilitates easy cable routing.
Yes, it complies with IDC standards and is UL recognised for quality assurance.
It can be used in applications such as healthcare devices, consumer electronics, and data storage devices.
Gold plating on the contacts ensures excellent conductivity and corrosion resistance, improving electrical performance.
This connector is manufactured in Taiwan.
