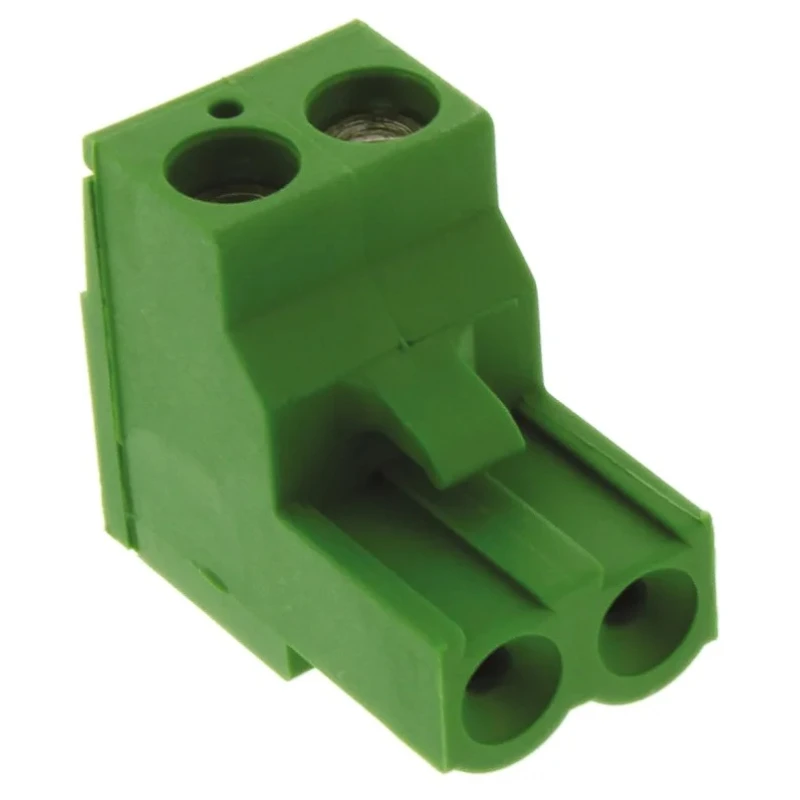

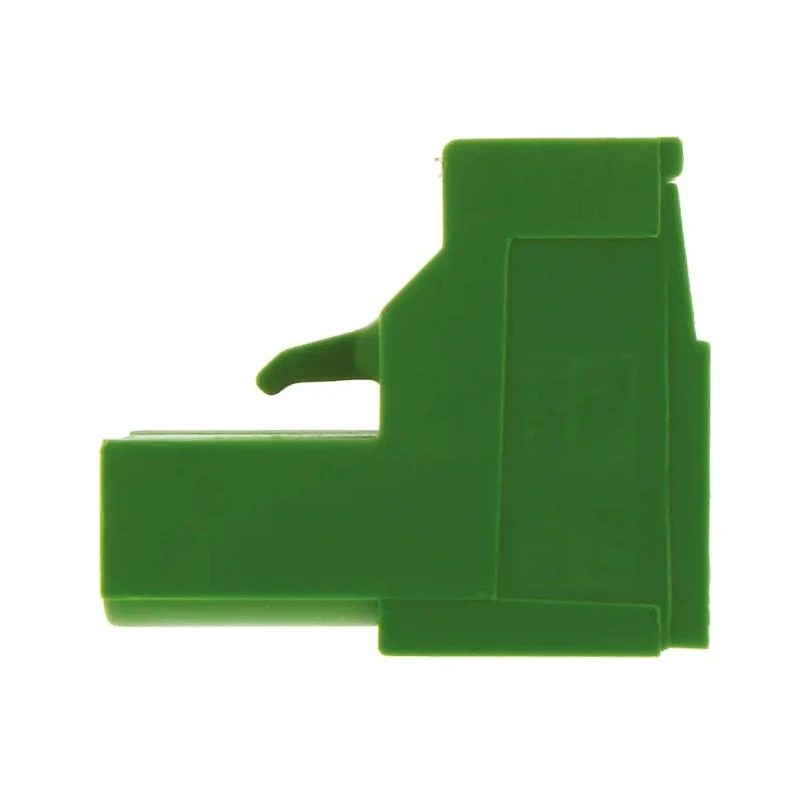

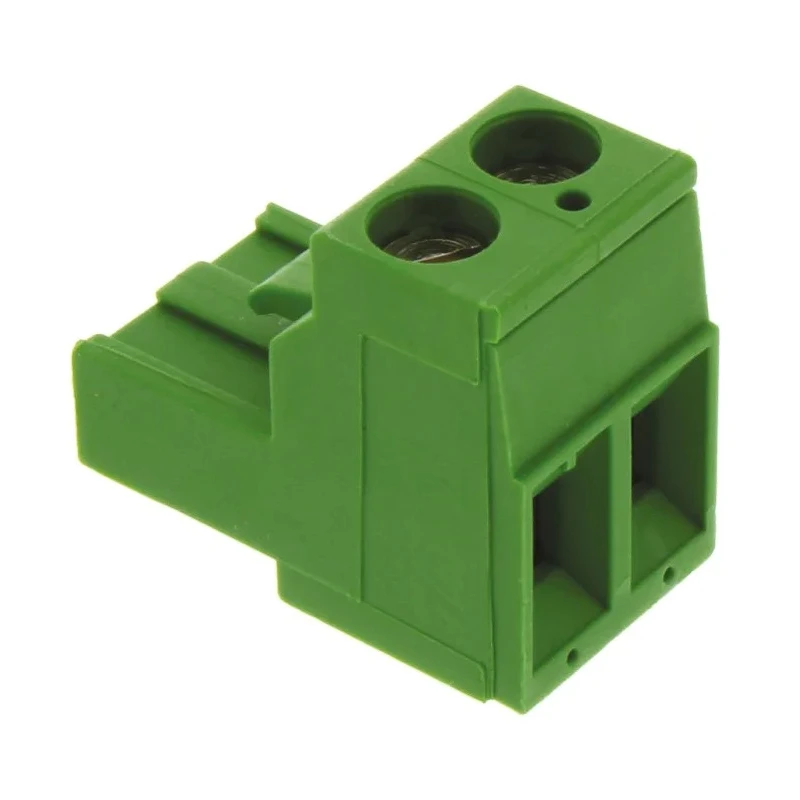

TE Connectivity Buchanan Series Pluggable Terminal Block 2-Contact, 5.08 mm Pitch, Right Angle, 300V AC, 15A 796634-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Length | 10.16mm |
| Model | 796634-2 |
| Depth | 18.4mm |
| Width | 15.5mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | CSA File no 007189A, RoHS, UL no E 60677 |
| Number of Contacts | 2 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Screw |
Key Features
- Constructed from green polyamide housing material ensuring durability.
- Accommodates wire sizes from 30 AWG to 12 AWG for versatile connectivity.
- Uses screw wire connection method for secure electrical connections.
- Compact design with dimensions 15.5 mm width, 10.16 mm length, and 18.4 mm depth.
- Certified with CSA File no 007189A, RoHS compliance, and UL no E 60677 approval.
- Right angle mounting and side stackable for efficient PCB integration.
- Suitable for corrosive environments due to robust material selection.
- Compatible with mating Terminal Block connectors like stock number 710-0110.
Product Description
TE Connectivity 796634-2 Buchanan Series Pluggable Terminal Block is a high-quality 2-contact electrical connector designed for reliable printed circuit board (PCB) applications. Featuring a 5.08 mm pitch and right angle orientation, this terminal block supports wiring sizes from 30 AWG to 12 AWG and operates up to 300V AC at 15A current capacity, suitable for various electronic and industrial automation uses.
The green polyamide housing material offers excellent chemical resistance, making it ideal for use in harsh or corrosive environments. Its compact dimensions of 15.5 mm width, 10.16 mm length, and 18.4 mm depth allow for efficient layout on PCB assemblies, while the screw wire connection method ensures secure and stable electrical contacts.
Certified under CSA File no 007189A, RoHS compliant, and UL no E 60677 approved, this terminal block meets stringent safety and environmental standards. The design supports right angle mounting and side stacking to enhance modularity and space optimization in electrical panels and control systems.
This product is part of the TE Connectivity Buchanan series known for quality connectors in industrial electrical and electronic applications. It is commonly used in manufacturing equipment, industrial controls, telecommunications, and power distribution systems.
Durable green polyamide housing material ensures longevity. Supports wire sizes from 30 AWG to 12 AWG for flexible wiring options. Screw connection method provides reliable and easy wire termination. Compact form factor ideal for dense PCB mounting.
Certified to CSA, UL standards and RoHS compliant for safety and compliance. Right angle and side stackable design for versatile mounting arrangements. Resistant to corrosive environments for industrial reliability. Compatible with TE mating terminal block connectors for system integration.
Explore more TE Connectivity components and accessories in the Electronics & Electrical category on EnvMart to find solutions for advanced electronic and power connection needs.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage of 300V AC and has a current capacity of 15A.
This terminal block accommodates wire sizes from 30 AWG to 12 AWG.
The dimensions are 15.5 mm in width, 10.16 mm in length, and 18.4 mm in depth.
It uses a screw wire connection method for secure electrical connections.
It is certified under CSA File no 007189A, RoHS compliant, and UL no E 60677 approved.
Yes, the robust material selection makes it suitable for use in corrosive environments.
It features a right angle orientation and is designed for side stacking, allowing for efficient PCB integration.
This model has 2 contacts.
It accommodates a minimum wire size of 0.05 mm² and a maximum wire size of 3 mm².
It is commonly used in manufacturing equipment, industrial controls, telecommunications, and power distribution systems.
