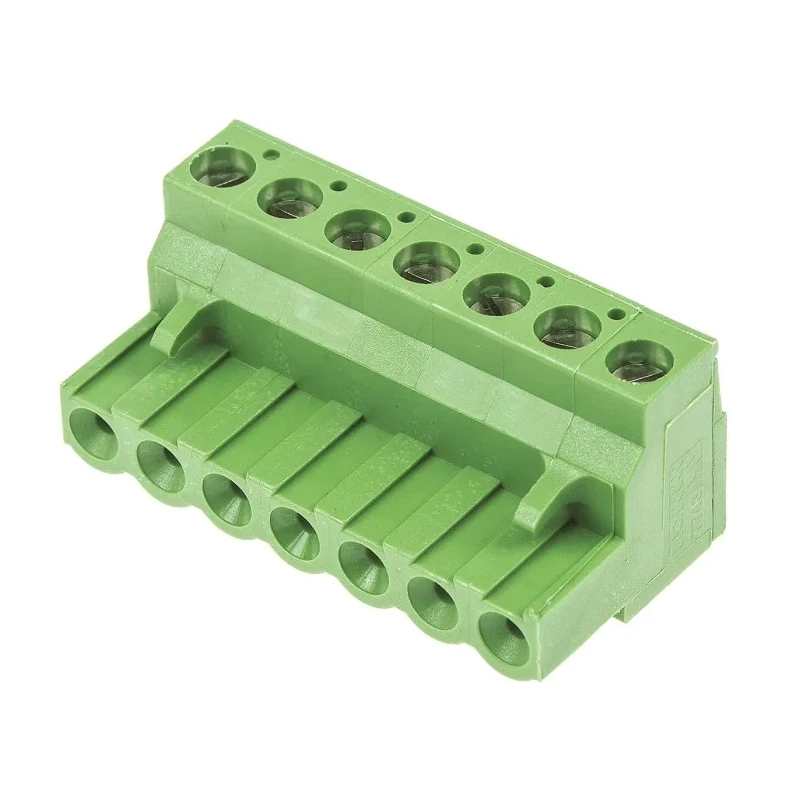

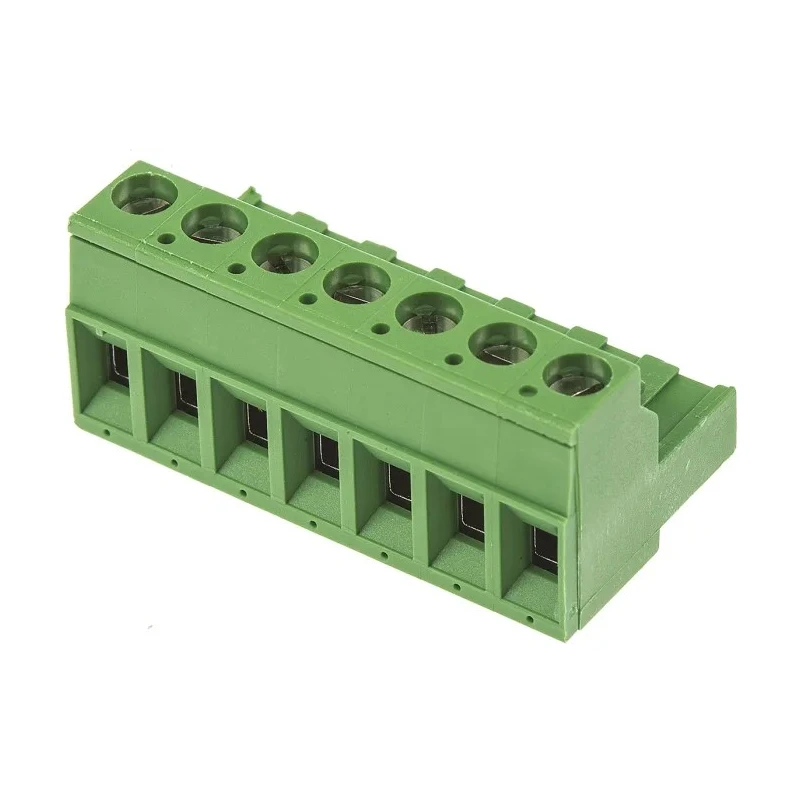

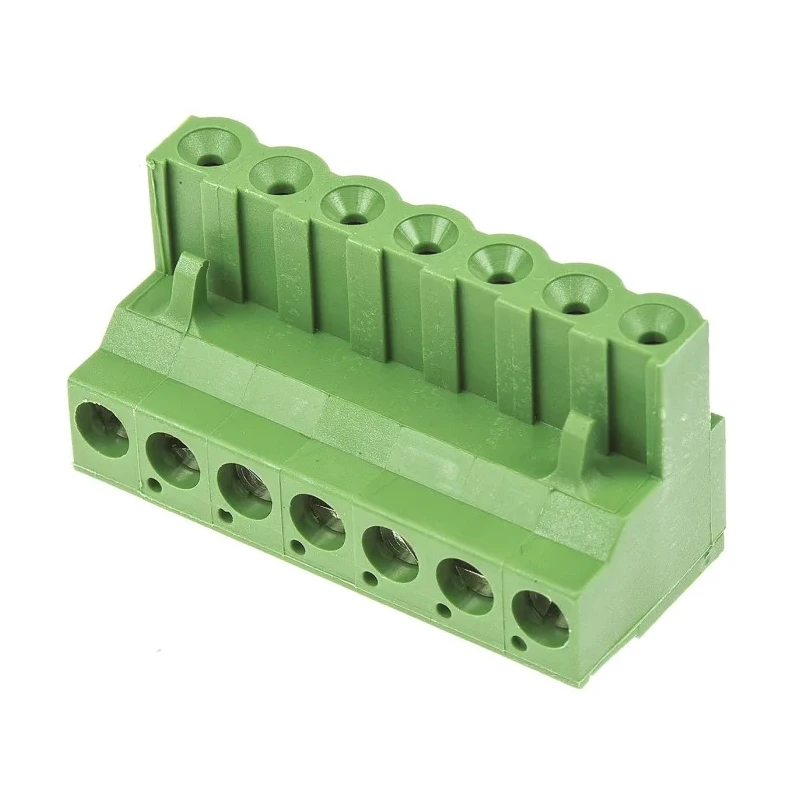

TE Connectivity Buchanan Series Pluggable Terminal Block 7-Contact 5.08 mm Pitch 1 Row 300V AC 15A Nylon Housing 796634-7
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Length | 10.16mm |
| Model | 796634-7 |
| Depth | 18.4mm |
| Width | 15.5mm |
| Housing Material | Nylon |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | CSA File no 007189A, RoHS, UL no E 60677 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 361-7386Brand: TE ConnectivityManufacturers Part No.: 796634-7 |
| Number of Contacts | 7 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Wire Connection Method | Screw |
Key Features
- Features a nylon housing ensuring durability and resistance in corrosive environments.
- Rated for 300V AC voltage and 15A current for reliable performance.
- Right angle orientation with screw wire connection method facilitates easy PCB mounting and wiring.
- Accepts wire size range from 30 to 12 AWG with a maximum wire size of 3 mm².
- Green colored housing for easy identification and integration.
- Compliance with CSA File no 007189A, RoHS directive, and UL no E 60677 standards assures quality and safety.
- Compact dimensions with a pitch of 5.08 mm, length of 10.16 mm, width of 15.5 mm, and depth of 18.4 mm.
Product Description
TE Connectivity 796634-7 Buchanan Series Pluggable Terminal Block is a versatile electrical connector designed for industrial and electronic applications requiring secure and efficient wire connections. This terminal block features a 7-contact configuration with a 5.08 mm pitch and a single-row layout, making it suitable for compact PCB designs. The housing is made of durable nylon material, ensuring robustness and resistance to harsh environmental factors, including corrosive conditions.
Operating at a voltage rating of 300V AC and a current rating of 15A, this terminal block supports a broad range of wiring requirements with wire size compatibility from 30 to 12 AWG, including a maximum wire cross-section of 3 mm². Its right angle orientation and screw-based wire connection method enable straightforward installation and reliable electrical contacts.
The green polyamide 6.6 GF housing allows easy visual identification in wiring assemblies. TE Connectivity ensures adherence to international standards through RoHS compliance, UL approval (UL no E 60677), and CSA certification (File no 007189A), promising safety, environmental compliance, and quality assurance.
This product is ideal for use in industrial machinery, electronic equipment, power distribution systems, automation controls, and other commercial and manufacturing environments where dependable electrical connections are critical.
Durable nylon housing suitable for demanding environmental conditions. Right angle mount design with side stack capability for PCB terminal block applications. Accommodates wire sizes from 30 AWG up to 12 AWG facilitating flexibility in wiring.
Rated for up to 300V AC and 15A ensuring reliable electrical performance. Compliant with key certifications including RoHS, CSA, and UL standards. Compact dimensions enable space-saving circuit board design. Green color for system identification and safety.
Set contains 1 Pc TE Connectivity Buchanan Series Pluggable Terminal Block model 796634-7. Browse EnvMart for more TE Connectivity electronic components and Pluggable Terminal Blocks to suit diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 300V AC and 15A, ensuring reliable electrical performance in various applications.
This terminal block accepts wire sizes ranging from 30 AWG to 12 AWG, with a maximum wire cross-section of 3 mm².
The dimensions are 10.16 mm in length, 15.5 mm in width, and 18.4 mm in depth, with a pitch of 5.08 mm.
It utilizes a screw-based wire connection method, facilitating straightforward installation and secure connections.
Yes, it complies with CSA File no 007189A, RoHS directive, and UL no E 60677 standards, ensuring safety and quality.
It features a right angle orientation, which is beneficial for PCB mounting applications.
This model has 7 contacts, making it suitable for various wiring configurations.
The housing is green, allowing for easy identification in wiring assemblies.
It is manufactured in India, ensuring adherence to quality standards.
It is ideal for use in industrial machinery, electronic equipment, power distribution systems, and automation controls.
The minimum wire size it can accommodate is 12 AWG or 0.05 mm².
