ITT Cannon MIL Spec Circular Connector Cable Mount Plug, Copper Alloy Contacts, Olive Drab Cadmium Plated KPT06F14-12S

Free Delivery in India | Lowest Global Shipping Charges

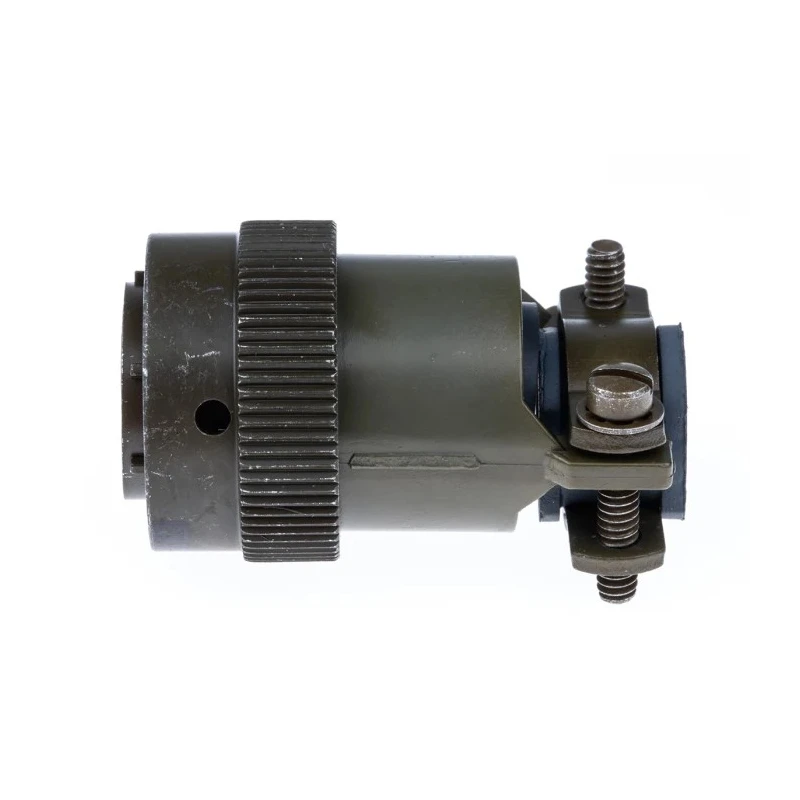

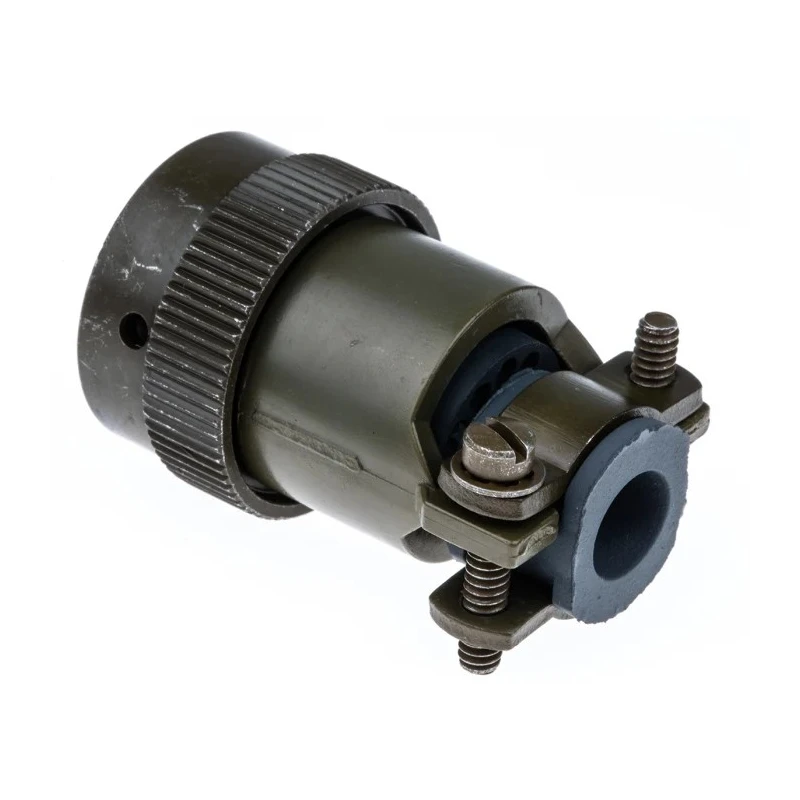

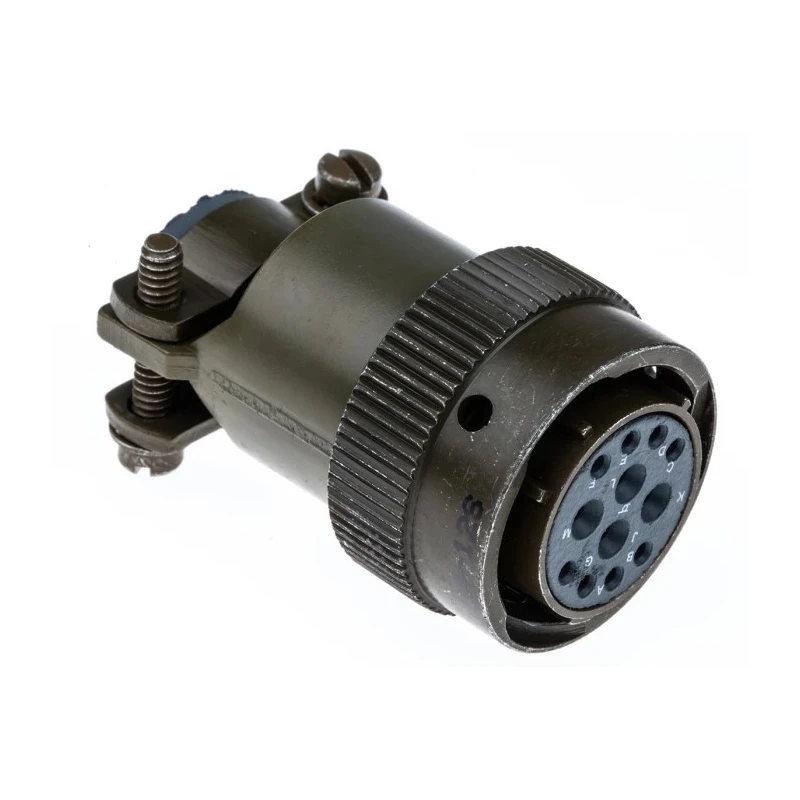

ITT Cannon MIL Spec Circular Connector Cable Mount Plug, Copper Alloy Contacts, Olive Drab Cadmium Plated KPT06F14-12S

Name: ITT Cannon MIL Spec Circular Connector Cable Mount Plug, Copper Alloy Contacts, Olive Drab Cadmium Plated KPT06F14-12S
Brand: ITT CANNON
SKU: 119697
Price: 145 USD
Availability: InStock



Category Mil Spec Circular Connector Brand ITT CANNON Condition New

Specifications

Country of Origin	India
Voltage	850V dc
Brand	ITT Cannon
Orientation	Straight
Current	22A
Model	KPT06F14-12S
Mount Type	Cable
Housing Material	Aluminium
Contact Material	Copper Alloy
Series	KPT
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold

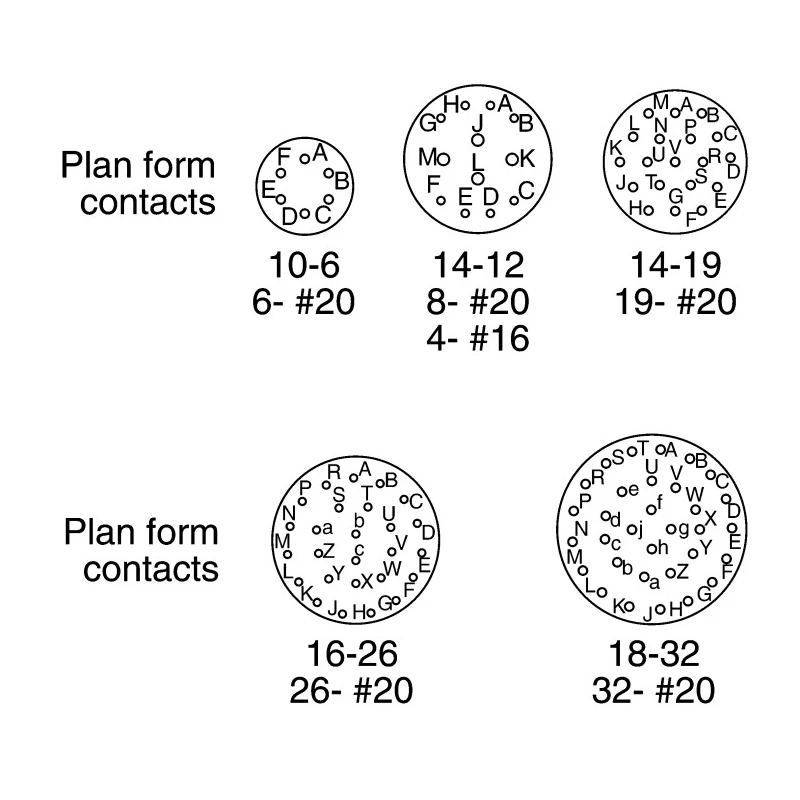

Number of Contacts	12
Contact Gender	Female
Connector Gender	Male
Shell Size	14
Military Standard	MIL-DTL-26482
Mating Type	Bayonet
Shell Plating	Olive Drab Cadmium

Key Features

This circular connector handles up to 22A current and 850V dc voltage for robust electrical performance.
Built to MIL-DTL-26482 military standard, ensuring durability and reliability in harsh environments.
Cable mount design with strain relief for secure and stable connections.
Features solder-type terminations and a straight orientation for ease of installation.
Operating temperature range spans from -55°C to 125°C suitable for industrial applications.
Housing is made of aluminium with an olive drab cadmium plating for corrosion resistance.
Contact plating in gold ensures superior conductivity and corrosion protection.
Compatible with similar MIL-C-26482 connectors providing standard mating with a positive three-point bayonet coupling.

Product Description

ITT Cannon KPT06F14-12S Mil Spec Circular Connector cable mount plug is a high-quality, durable component designed for secure electrical connections in industrial and military applications. This product features a copper alloy contact material with gold plating, housed in an aluminium shell plated with olive drab cadmium for enhanced corrosion resistance and durability. It offers 12 female contacts with a male connector configuration and operates at 22 amps current and 850 volts DC.

Designed in accordance with MIL-DTL-26482 standards, this connector supports quick and reliable coupling through its positive three-point bayonet mating system. The cable mount type includes a cable clamp back shell providing strain relief, ensuring stability and sealing in harsh environments. The solder termination type simplifies connection of wires for reliable signal transmission and power delivery.

With capability to operate across extreme temperatures from -55°C to 125°C, the connector is suitable for a wide range of industrial applications including aerospace, defense, manufacturing, and electronic controls requiring robust connector systems. The straight orientation assists in installation flexibility within cable assemblies.

The durable construction and stringent military standards compliance make this connector a dependable choice for harsh operational settings. It mates with other MIL-C-26482 connectors with a normal orientation of the insert, ensuring compatibility and interchangeability.

This connector is engineered for industrial and military use, providing reliable signal and power connectivity. Robust aluminium housing with cadmium plating enhances corrosion resistance and mechanical strength. Gold-plated copper alloy contacts ensure excellent conductivity and longevity.

Compliance with MIL-DTL-26482 guarantees top-tier military specification quality. Bayonet mating system allows fast, secure, and positive coupling. Temperature tolerance from -55°C to 125°C suits extreme environment conditions.

Strain relief feature prevents cable damage and enhances durability. Suitable for applications in harsh manufacturing, aerospace, and defense equipment. Explore more military and industrial-grade circular connectors on EnvMart for reliable power and signal solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It handles up to 22A current and 850V DC voltage, ensuring robust electrical performance.

This model is built to the MIL-DTL-26482 military standard, ensuring durability and reliability in harsh environments.

The housing is made of aluminium with olive drab cadmium plating, while the contacts are copper alloy with gold plating for enhanced conductivity and corrosion protection.

It operates effectively within a temperature range of -55°C to 125°C, suitable for extreme industrial applications.

This connector features 12 female contacts with a male connector configuration, designed for secure connections.

It utilizes solder-type terminations, simplifying the connection of wires for reliable signal transmission and power delivery.

It employs a positive three-point bayonet mating system for quick and reliable coupling.

Yes, it is compatible with similar MIL-C-26482 connectors, allowing standard mating with a normal orientation of the insert.

The shell size of this model is 14, which is standard for this type of connector.

The cable mount design includes a cable clamp back shell that provides strain relief, ensuring secure and stable connections.

The country of origin for this connector is India.

It is suitable for a wide range of industrial applications, including aerospace, defense, manufacturing, and electronic controls.
