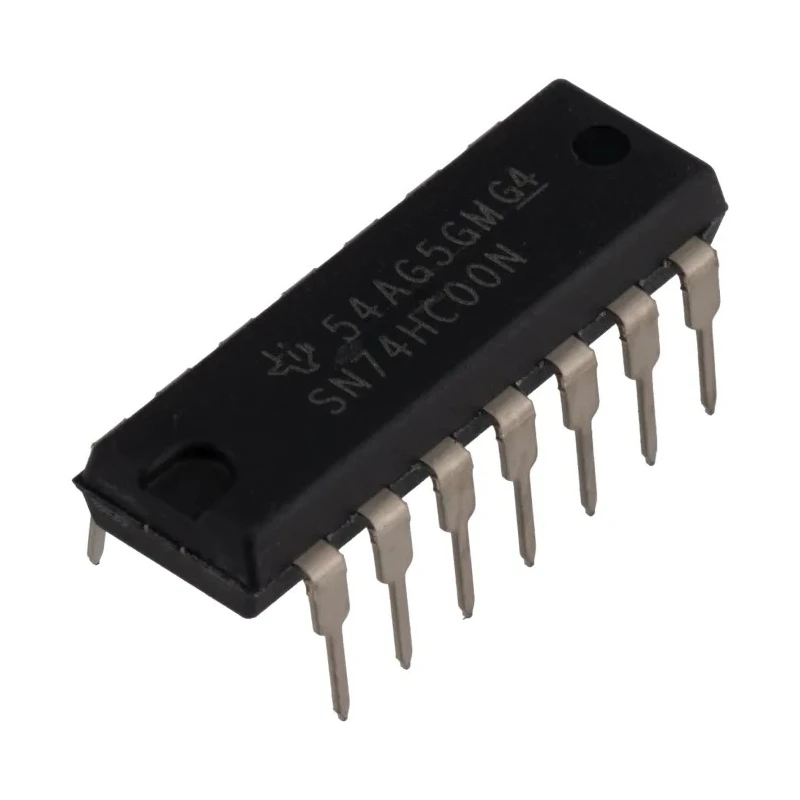

Texas Instruments 4 2-Input NAND Logic Gate, CMOS HC Logic Family, 14-Pin PDIP SN74HC00N

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 4 2-Input NAND Logic Gate, CMOS HC Logic Family, 14-Pin PDIP SN74HC00N

Name: Texas Instruments 4 2-Input NAND Logic Gate, CMOS HC Logic Family, 14-Pin PDIP SN74HC00N
Brand: Texas Instruments
SKU: 119334
Price: 0.9 USD
Availability: InStock



Category Logic Gates Brand Texas Instruments Condition New

Specifications

Country of Origin	Mexico
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	SN74HC00N
Mount Type	Through Hole
Compatibility	Input CMOS, Output CMOS
Input Type	CMOS
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements	4
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	NAND
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	20ns
Maximum Low Level Output Current	5.2mA
Number of Inputs per Gate	2
Texas Instruments, 4 2-Input NAND Logic Gate, 14-Pin PDIPBrand	Texas Instruments
IC,Logic,7400,Gate,MC74HC00ANBrand	ON Semiconductor
IC, Logic, 7400, Gate, MM74HC00NBrand	Fairchild Semiconductor

Key Features

Features four independent 2-input NAND gates in a single PDIP package.
Operates with a supply voltage range from 2 V to 6 V.
CMOS technology ensures low power consumption and high noise immunity.
Maximum propagation delay time is 20 nanoseconds at specified load conditions.
Compatible with both input and output CMOS logic levels.
Designed for through-hole mounting with 14 pins in PDIP package format.
Operational temperature range from -40°C to 85°C suits industrial applications.
Maximum high-level output current of -5.2 mA and low-level output current of 5.2 mA.

Product Description

Texas Instruments SN74HC00N 4 2-Input NAND Logic Gate is a high-speed CMOS logic IC featuring four independent NAND gates suitable for digital electronics applications. The device utilizes the 74HC family technology which combines silicon gate CMOS for fast operation speeds similar to LSTTL family while maintaining low power consumption inherent to CMOS devices.

This logic gate IC is packaged in a 14-pin PDIP configuration designed for easy through-hole mounting on printed circuit boards. It is compatible with CMOS logic levels on both input and output sides, allowing flexible circuit design interoperability.

The IC operates within a supply voltage range of 2 to 6 volts and supports a temperature range from -40°C to +85°C making it ideal for industrial and commercial electronic systems. The maximum propagation delay is specified at 20 nanoseconds at a standard load, ensuring efficient signal processing speeds.

Four independent 2-input NAND gates per IC. Operating voltage range from 2 V to 6 V for versatile power supply options. Low power consumption CMOS technology suitable for modern electronic designs. Through-hole 14-pin PDIP package for reliable PCB mounting.

Wide operating temperature range from -40°C to 85°C for demanding environments. Maximum output currents of ±5.2 mA provide adequate drive capability. Manufactured in Mexico adhering to quality manufacturing standards. Suitable for use in industrial, commercial, laboratory, and consumer electronics applications.

Not designed for automotive standard use cases.

This product is an essential building block for digital logic circuits, widely employed in computing, control systems, and electronic instruments. Texas Instruments' dedication to quality ensures consistent functionality and reliable performance in diverse industrial and commercial environments.

For more components in the Logic Gates category, explore available offerings at EnvMart to find complementary logic ICs and electronic components to complete your designs and projects.
