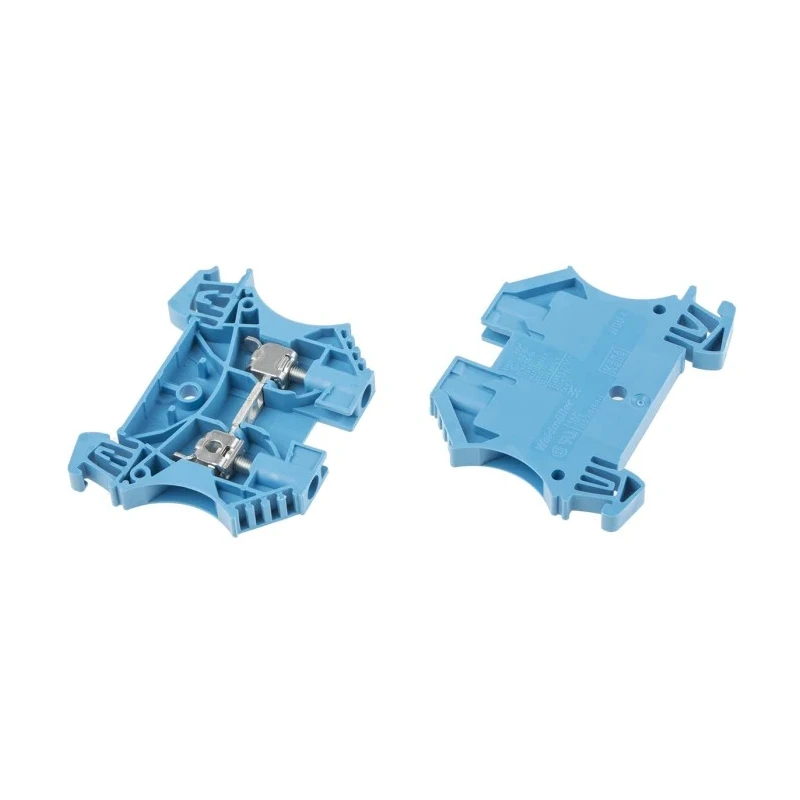

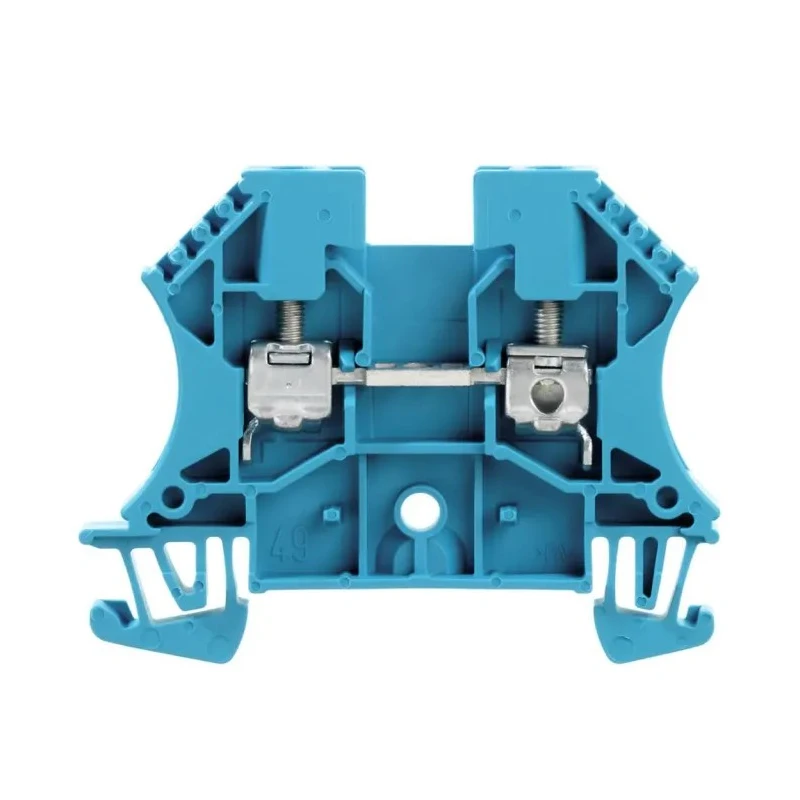

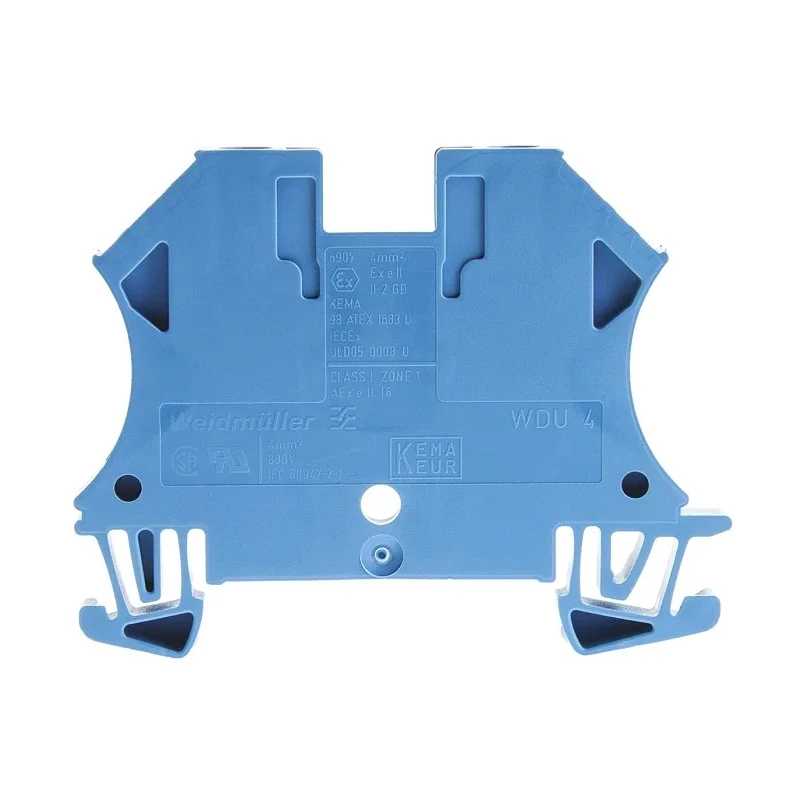

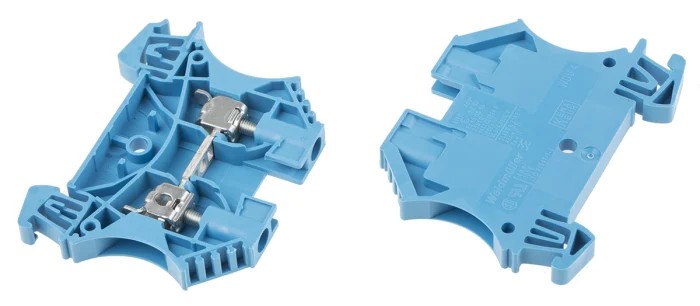

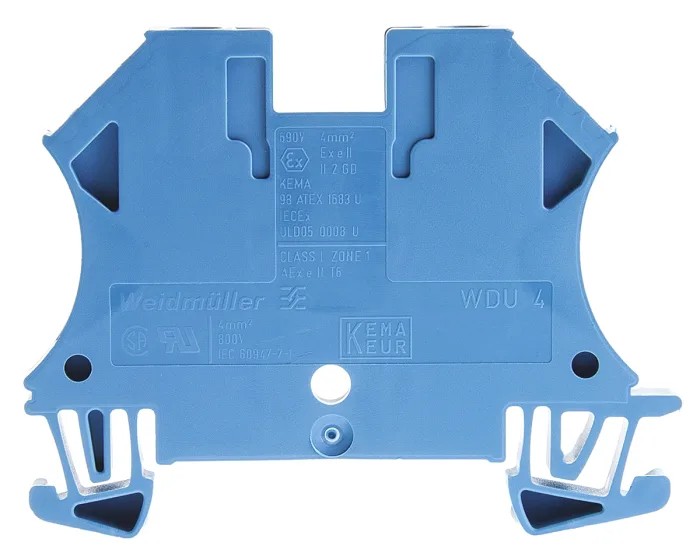

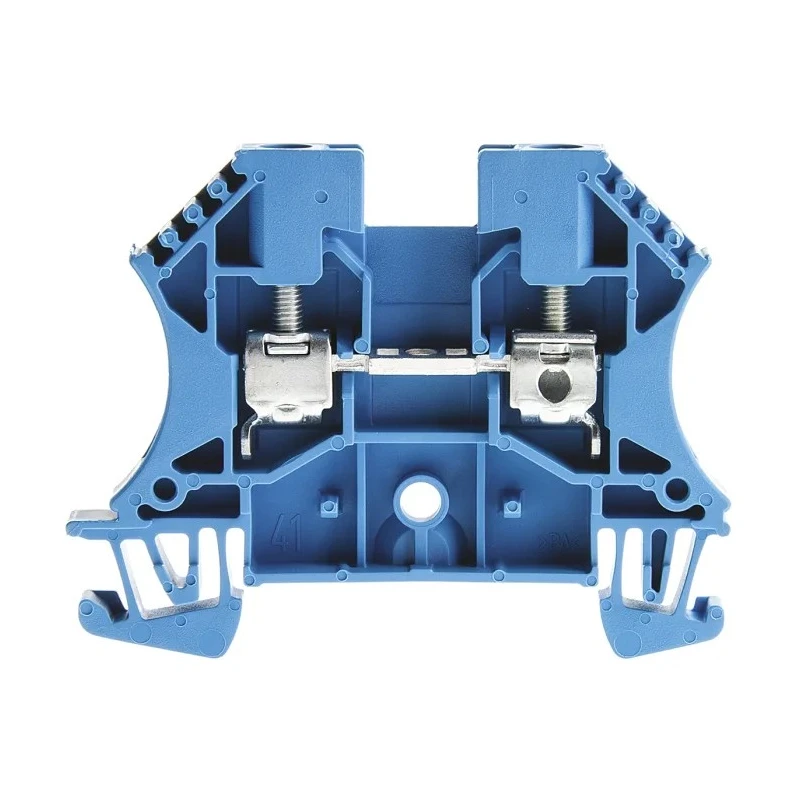

Weidmüller WDU Series Feed Through Terminal Block Blue 4mm² 1-Level Screw ATEX 1020180000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | Blue |
| Series | WDU |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Sub Type | Snap-On |
| Minimum Operating Temperature | -50°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | IEC 60947-7-1 |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 10AWG |
| Cable CSA | 4mm² |
| Terminal Block Current | 41A |
| RS PRO DIN Rail Terminal Block Blue, 4mm², ScrewBrand | RS PRO |
Key Features
- Designed for snap-on DIN rail mounting for easy and tool-free installation.
- Supports current rating up to 41A for high power applications.
- Compact size of 60mm (H) x 6.1mm (W) x 46.5mm (D) allows space-efficient panel layouts.
- Operational temperature range from -50°C to +120°C for demanding industrial environments.
- Suitable for machine building, assembly lines, and food processing industries.
- Complies with IEC 60947-7-1 standards ensuring reliable safety and performance.
- Provides 8kV rated impulse withstand voltage for protection against power surges.
- Accepts cable sizes from AWG 26 to AWG 10 for versatile wiring options.
Product Description
Weidmüller 1020180000 WDU Series feed through terminal block features a blue Wemid housing designed to endure wear and impact in harsh industrial conditions. This DIN rail-mountable terminal block supports cable cross-sectional area up to 4mm², making it suitable for various electrical wiring needs.
Its screw clamp termination supports cables ranging from AWG 26 to AWG 10, allowing flexible connectivity options for different wire gauges. The device withstands a current of 41A and operates reliably in extreme temperatures between -50°C and 120°C, catering to demanding industrial, manufacturing, and food production environments.
Equipped with ATEX hazardous area certification and certified to IEC 60947-7-1 standards, this terminal block ensures operational safety and compliance. The compact dimensions of 60mm height, 6.1mm width, and 46.5mm depth enable efficient panel space utilization.
Snap-on DIN rail mounting allows fast and tool-free installation. High current rating of 41A suits power-intensive applications. Compact design maximizes space efficiency. Wide temperature operating range from -50°C to 120°C.
ATEX certification for hazardous area use. Rated impulse withstand voltage of 8kV protects connected equipment. Universal cable compatibility from AWG 26 to AWG 10. Meets IEC 60947-7-1 industry standards.
This terminal block is ideal for applications in machine building, assembly lines, and food production plants needing reliable and robust electrical connections with effective safety standards. The product is manufactured in Germany to high-quality industrial norms.
Explore more Weidmüller Terminal Blocks and related electrical components for industrial automation and power distribution on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block supports a maximum current rating of 41A, making it suitable for high power applications.
It operates reliably within a temperature range of -50°C to 120°C, suitable for demanding industrial environments.
The compact dimensions of the terminal block are 60mm in height, 6.1mm in width, and 46.5mm in depth.
This model features a screw termination type, allowing for secure connections with various wire gauges.
It accepts wire sizes ranging from AWG 26 to AWG 10, providing versatile wiring options.
Yes, it has ATEX hazardous area certification, making it suitable for use in environments with explosive atmospheres.
It complies with IEC 60947-7-1 standards, ensuring reliable safety and performance.
The terminal block is designed for snap-on DIN rail mounting, allowing for easy and tool-free installation.
It has a rated impulse withstand voltage of 8kV, providing protection against power surges.
This model supports a cable cross-sectional area of up to 4mm², suitable for various electrical wiring needs.
The terminal block is manufactured in Germany, adhering to high-quality industrial norms.
It is suitable for applications in machine building, assembly lines, and food processing industries.
