JAE TX25 Series Straight Through Hole PCB Header, 30 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TX25

Free Delivery in India | Lowest Global Shipping Charges

JAE TX25 Series Straight Through Hole PCB Header, 30 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TX25



Category PCB Headers Brand JAE Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	JAE
Orientation	Straight
Current	1A
Model	TX25
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	TX25
Termination Type	Solder
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	30
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features 30 gold-plated copper alloy contacts for reliable conductivity.
The PCB header has 2 rows with a 1.27 mm pitch between contacts.
Constructed with a shrouded polybutylene terephthalate housing for durability.
Supports a maximum voltage rating of 500V and current up to 1A.
Operates reliably in temperatures from -40°C to 80°C.
Designed for solder termination and through hole mounting method.
Offers excellent mating stability with long electrical engagement length.
Polarizing keys in the housing ensure correct rack and panel connector alignment.

Product Description

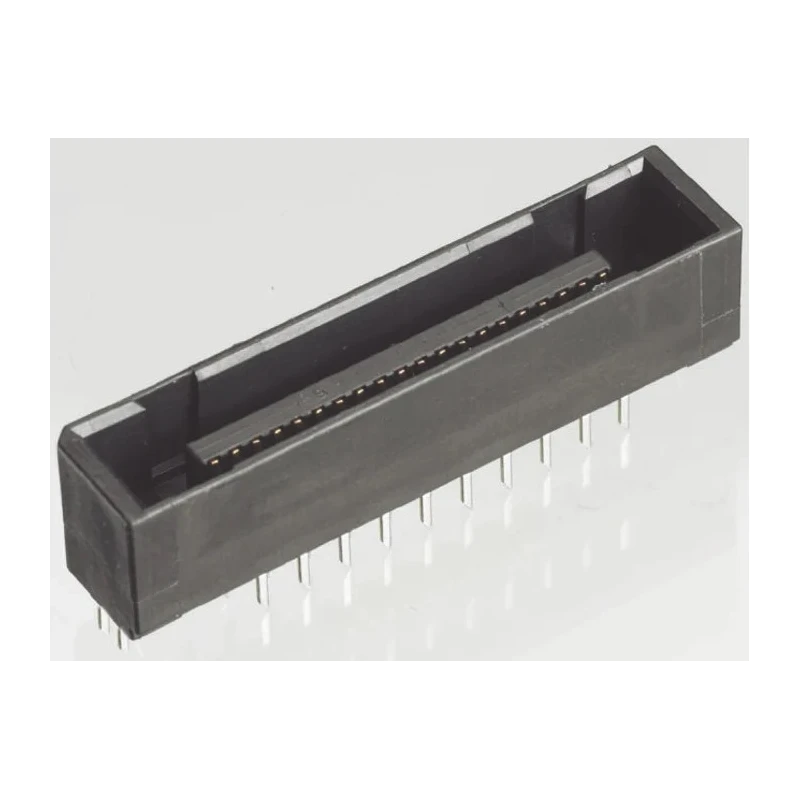

JAE TX25 Series Straight Through Hole PCB Header TX25 is engineered for reliable and stable connections in board-to-board electronic assemblies. It features 30 gold-plated copper alloy contacts arranged in 2 rows with a precise 1.27 mm pitch, providing excellent electrical performance and durability.

The connector housing is made from robust polybutylene terephthalate material and is shrouded to protect contacts and ensure proper connector alignment. With a voltage rating of 500 V and current capacity of 1 A, it is suitable for a broad range of industrial and commercial electronics applications.

Designed for through hole mounting with solder termination, this header ensures a lasting mechanical and electrical bond on printed circuit boards. Its long electrical engagement length and non-pin type contacts allow it to withstand mating and unmating twisting forces, providing a secure and true click-action connection.

The stable housing includes polarizing keys making it ideal for rack and panel connector uses in industrial, manufacturing, and electronics sectors. Operating temperature range from -40°C to 80°C ensures its suitability for diverse environments.

Features 30 gold-plated copper alloy contacts for reliable conductivity. Shrouded housing with polarizing keys prevents misalignment during insertion. 1.27 mm pitch between contacts for precise connections. Supports up to 500 V and 1 A for various circuit requirements.

Through-hole mount and solder termination for secure installation. Durable polybutylene terephthalate housing material for longevity. Temperature range of -40°C to 80°C suitable for harsh conditions. Non-pin contacts provide high mating durability and click action.

Ideal for industrial, manufacturing, and electronic board applications.

This JAE TX25 Series PCB header is a high-quality component designed to improve assembly reliability and electrical performance in electronic devices. Explore more in our PCB Headers category at EnvMart for comprehensive connector solutions.
