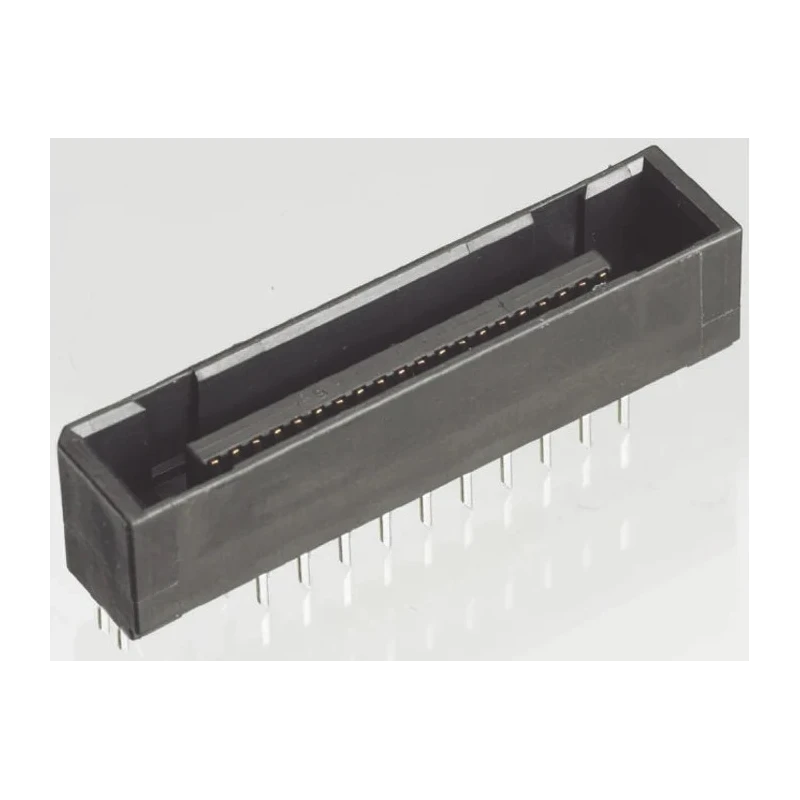

JAE TX25 Series Straight Through Hole PCB Header, 120 Contact, 1.27 mm Pitch, 2 Row, Shrouded

The JAE TX25-120P-6ST-H1E PCB Header is a high-quality straight through-hole connector with 120 contacts configured in 2 rows at a 1.27 mm pitch. It features a shrouded design that provides secure and stable rack and panel connections suitable for industrial electronics assembly.

Its housing is made from polybutylene terephthalate, offering durability and insulation. The contacts are copper alloy with gold plating, ensuring excellent electrical conductivity and resistance to corrosion, supporting 1 amp current and 500 volts.

This PCB header is designed for board-to-board applications, with solder termination for reliable mechanical and electrical bonding. It can operate reliably within a temperature range of -40°C to 80°C, making it suitable for a variety of environments.

The TX25 series connectors have a long electrical engagement length to maintain high connection stability. The non-pin type contacts withstand mating and unmating forces with a tactile "click action" to confirm positive connection. The stable housing includes polarizing keys that prevent incorrect insertion, enhancing operational safety in manufacturing and industrial use.

Features 120 copper alloy contacts with gold plating for reliable conductivity. Constructed with durable polybutylene terephthalate housing material. Supports a rated current of 1 amp at a voltage of 500V. Operates in temperatures ranging from -40° to 80°C for versatile applications.

Designed as a shrouded, straight orientation header for through-hole mounting. Connector system supports board-to-board interfacing with solder termination.

This product is ideal for industrial electronics, manufacturing assembly, and other commercial PCB interconnection applications requiring high reliability and precision. Explore more high-quality PCB Headers and connectors on EnvMart for comprehensive industrial solutions.
