JAE LVDS Connector Receptacle 1.25 mm Pitch 20 Way 20 Row Right Angle Surface Mount FI-S20P-HFE

Free Delivery in India | Lowest Global Shipping Charges

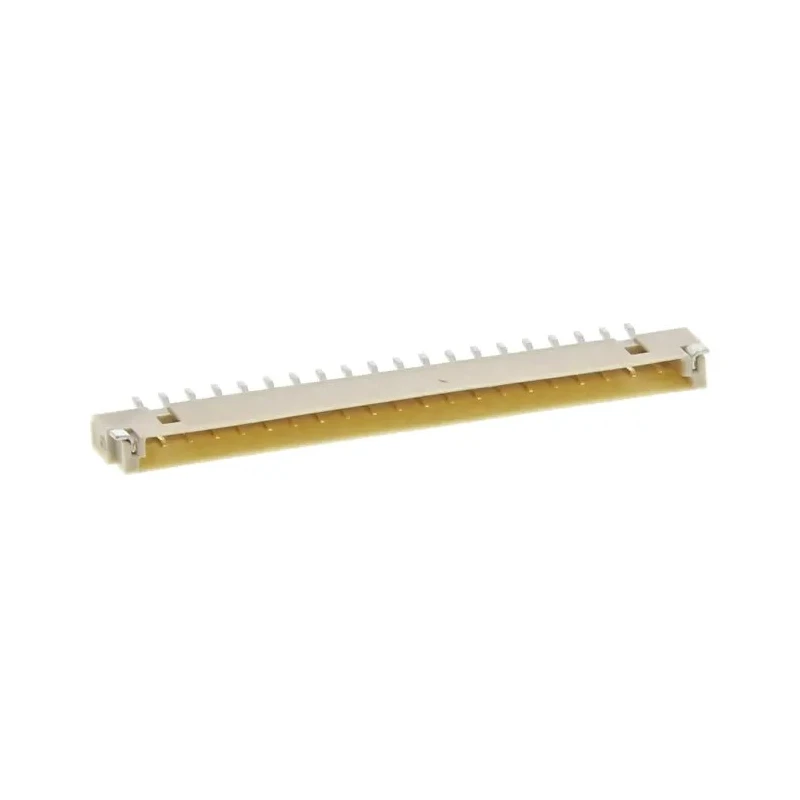

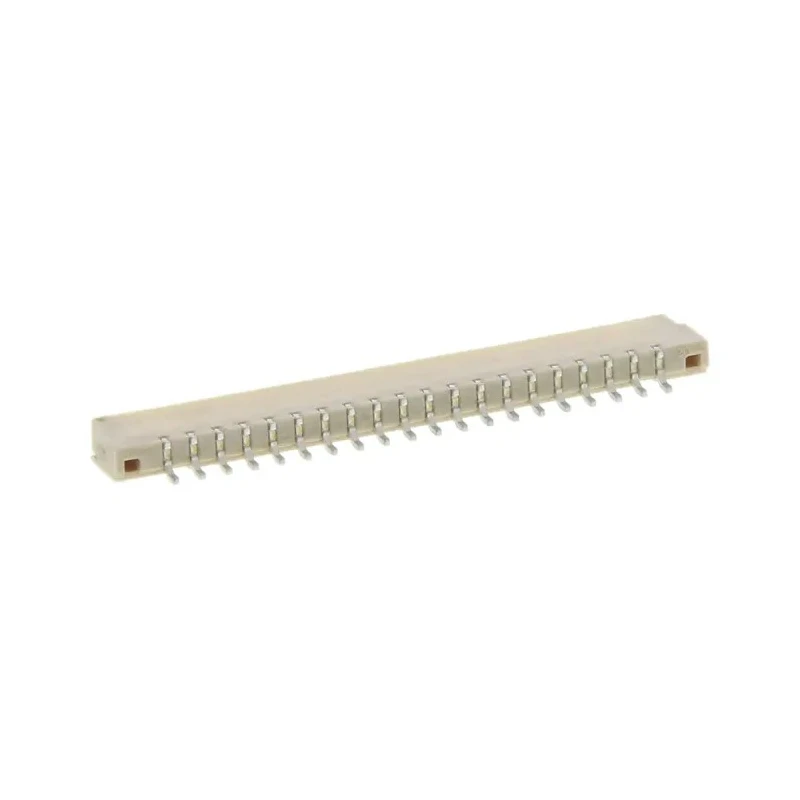

JAE LVDS Connector Receptacle 1.25 mm Pitch 20 Way 20 Row Right Angle Surface Mount FI-S20P-HFE



Category Connectors Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Right Angle
Model	FI-S20P-HFE
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	FI
Termination Type	Solder
Sub Type	Receptacle
Number of Rows	20
Pitch	1.25mm
Standards/Approvals	RoHS
Number of Contacts	20
Housing Colour	Beige

Key Features

This connector offers excellent electrical performance suitable for Low Voltage Differential Signalling (LVDS).
The 90° right angle orientation supports board to cable connections.
Constructed with copper alloy contacts for robust conductivity.
Beige housing made from Liquid Crystal Polymer ensures high durability and heat resistance.
Compatible for high-speed differential transmission with impedance of 90 to 100 Ω.
RoHS compliant ensuring environmental safety and quality standards.
Features mechanical retention with latch to withstand vibration and improve connection reliability.
FI series is chosen by VESA as standard LVDS connector for LCD interfaces.

Product Description

JAE FI-S20P-HFE LVDS Connector Receptacle is engineered for high-performance board to cable interconnections featuring a 1.25 mm pitch with 20 way and 20 row contacts in a right angle surface mount configuration.

Designed to support Low Voltage Differential Signalling (LVDS), this connector ensures signal integrity with optimal electrical performance suitable for modern digital display technologies including LCD, PDP, and rear projection devices.

Constructed with copper alloy contacts and a durable beige Liquid Crystal Polymer housing, the connector offers excellent mechanical and thermal properties for reliable and long-term usage.

The 90° right angle orientation facilitates compact PCB designs while the latch mechanism enhances connection stability and resistance to vibration, critical in industrial and commercial electronic applications.

This FI series connector is recognized by VESA as the standard LVDS connector for LCD interfaces, assuring interoperability and quality compliance. This connector supports high-speed differential transmission with stable impedance between 90 and 100 Ω.

Surface mount technology (SMT) provides streamlined installation in automated manufacturing. RoHS compliance guarantees adherence to environmental regulations. The product is suitable for industrial, commercial, and consumer electronic assemblies.

Connectors accommodate high density connections supporting complex circuitry. Choose JAE FI-S20P-HFE for precision, quality, and reliability in your LVDS connector applications. Explore the Electronics Components category on EnvMart for a wide selection of Connectors and related products.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The pitch of this connector is 1.25 mm.

This model features 20 contacts.

The connector is designed with a right angle orientation.

The housing is constructed from Liquid Crystal Polymer, which provides high durability and heat resistance.

It uses a solder termination type.

It supports high-speed differential transmission with an impedance range of 90 to 100 Ω.

Yes, the connector is RoHS compliant, ensuring it meets environmental safety standards.

This connector is suitable for industrial, commercial, and consumer electronic assemblies, particularly for digital display technologies such as LCD and PDP.

The housing color of this connector is beige.

It is a surface mount connector, designed for streamlined installation in automated manufacturing.

The contacts are made from copper alloy, ensuring robust conductivity.

This connector is part of the FI series, recognized by VESA as the standard LVDS connector for LCD interfaces.
