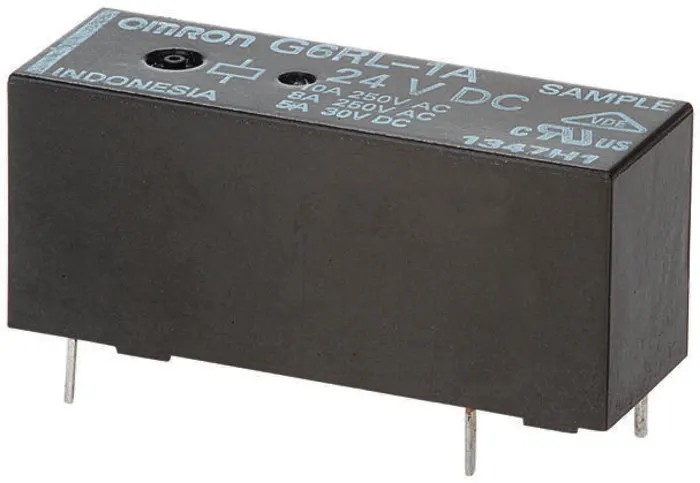

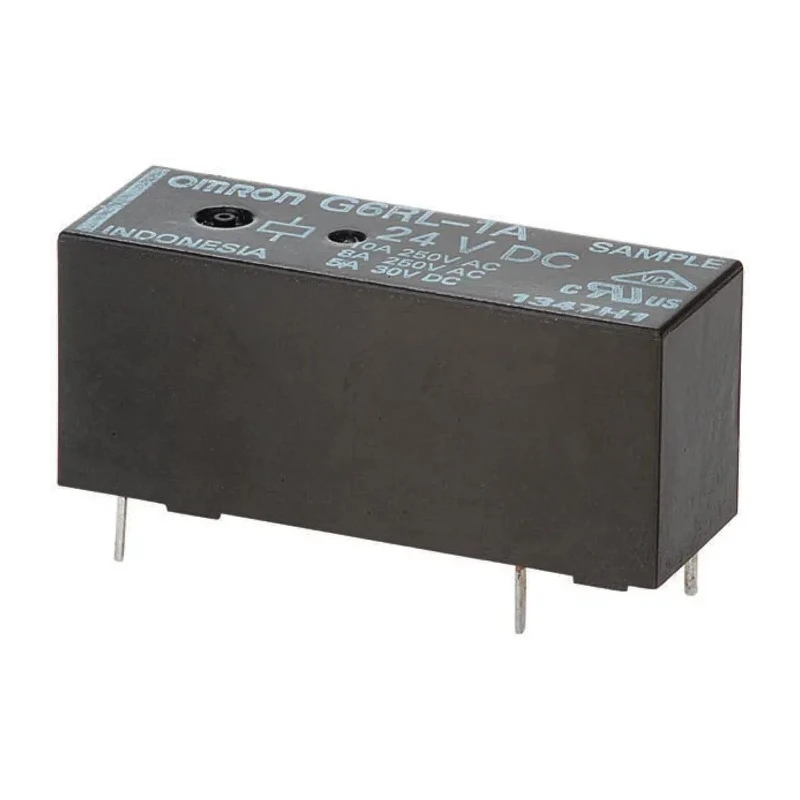

Omron Power Relay PCB Mount SPST 10A Switching Current 24V DC Coil G6RL-1A DC24
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |

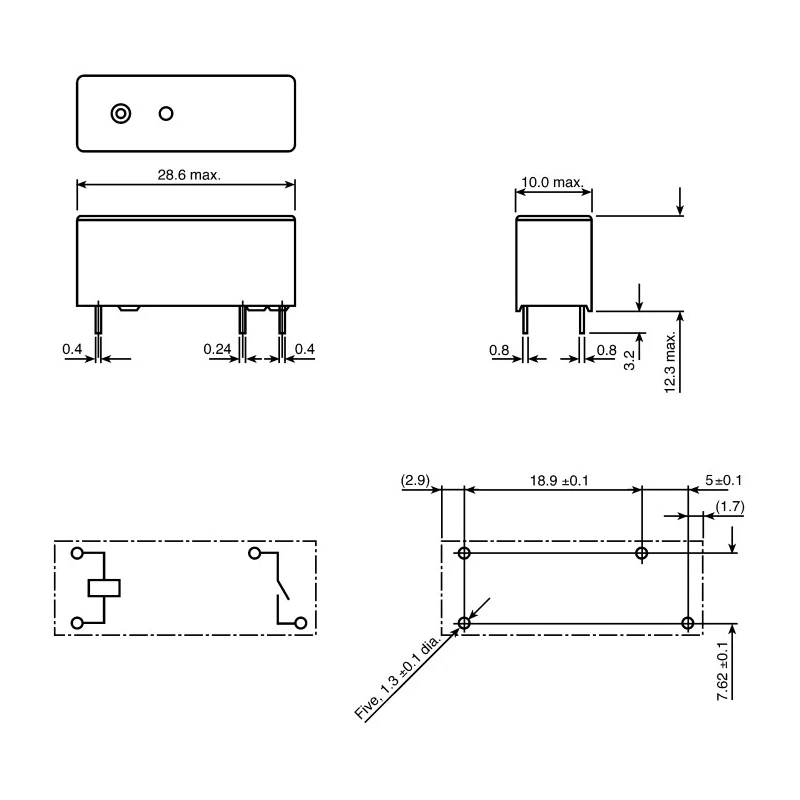

| Height | 12.3mm |
| Length | 28.5mm |
| Model | G6RL-1A DC24 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Low Profile | 12.3mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.6kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 220mW |
| Low coil power consumption | 220mW (typical) |
Key Features
- This power relay features a low profile with a height of 12.3mm for compact PCB design.
- It operates within a temperature range of -40°C to 85°C, suitable for diverse industrial conditions.
- The relay has a switching AC voltage rating of 400V and DC voltage rating of 300V for versatile power control.
- Equipped with silver alloy contacts and a contact resistance of 100mΩ to ensure reliable electrical connections.
- Low coil power consumption of approximately 220mW reduces energy usage during operation.
- Designed with a solder terminal type and flux proof housing for durability and ease of assembly.
- Complies with RoHS standard and is manufactured in Indonesia.
Product Description
Omron G6RL-1A DC24 Power Relay is engineered for PCB mounting with a 24V DC coil and SPST contact configuration rated for 10A switching current. This relay is designed for reliable switching in electrical and automation systems.
Its compact low-profile form factor with a maximum height of 12.3mm allows integration in space-constrained circuit boards. The relay functions efficiently across a broad operating temperature range from -40°C to 85°C, making it suitable for industrial, laboratory, automotive, and manufacturing environments.
It handles switching AC voltages up to 400V and DC voltages up to 300V, providing versatility for a variety of power control applications. The silver alloy contacts and low contact resistance of 100mΩ promote consistent contact performance and durability.
The solder terminal type facilitates straightforward PCB mounting. Furthermore, the relay housing is flux proof to resist contamination during soldering processes, enhancing product reliability.
With a typical coil power consumption of 220mW, this relay offers energy-efficient operation. It adheres to RoHS compliance, supporting environmentally responsible manufacturing. This power relay features a low profile with a height of 12.3mm for compact PCB design.
It operates within a temperature range of -40°C to 85°C, suitable for diverse industrial conditions. The relay has a switching AC voltage rating of 400V and DC voltage rating of 300V for versatile power control. Equipped with silver alloy contacts and a contact resistance of 100mΩ to ensure reliable electrical connections.
Low coil power consumption of approximately 220mW reduces energy usage during operation. Designed with a solder terminal type and flux proof housing for durability and ease of assembly. Complies with RoHS standard and is manufactured in Indonesia.
This Omron power relay is ideal for industrial automation, manufacturing systems, electrical equipment, and other applications requiring compact, reliable PCB-mounted relay solutions. Explore our extensive catalog of Power Relays and related components on EnvMart for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 10A.
The coil voltage for this model is 24V DC.
This relay has a switching AC voltage rating of 400V and a DC voltage rating of 300V.
The height of this power relay is 12.3mm, making it suitable for compact PCB designs.
The relay is equipped with silver alloy contacts, which provide reliable electrical connections.
It operates within a temperature range of -40°C to 85°C.
The contact resistance of this relay is 100mΩ.
This unit features a solder terminal type for easy PCB mounting.
The typical coil power consumption is approximately 220mW.
Yes, this power relay complies with RoHS standards.
This relay is manufactured in Indonesia.
The width of this relay is 10mm and the length is 28.5mm.
