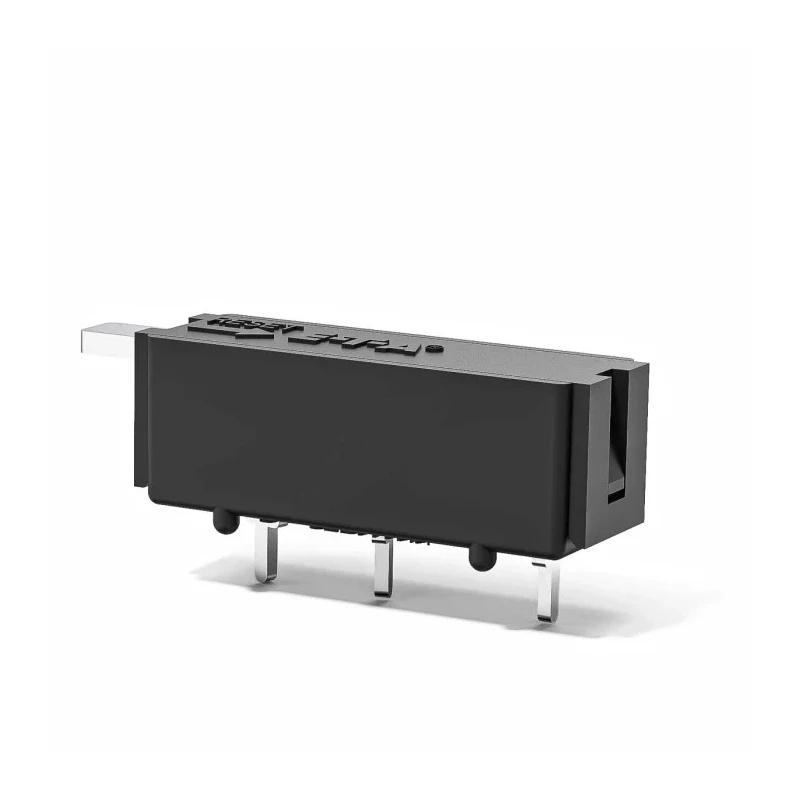

ETA 1410-L Thermal Circuit Breaker 1A Current Rating 1-Pole Base Solder Pin Terminal 250V AC 48V DC 1410-L210-L2F1-S02-1A



Category Circuit Breakers Brand ETA Condition New

Specifications

Country of Origin	India
Brand	ETA
Height	15mm
Model	1410-L210-L2F1-S02-1A
Width	9mm
Mount Type	Base
Current Rating	1A
Series	1410-L
Terminal type	Solder Pin
Breaking Capacity	25A
Number of Poles	1
Standards/Approvals	CE, RoHS
Rated AC Voltage	250V ac
Rated DC Voltage	48V dc
Tripping Characteristics	Type R
Tripping Mechanism	Thermal
Reset Actuator Type	Button
Break Time	Medium

Key Features

Rated AC voltage of 250V and DC voltage of 48V suitable for diverse electrical circuits.
Features thermal tripping mechanism with Type R tripping characteristics for precision safety.
Equipped with a white manual reset button acting as reset actuator for enhanced PCB safety.
Ultra-miniature design with solder pin terminals ensures easy base mounting and compact integration.
Breaking capacity of 25A withstands medium breaking times for reliable circuit protection.
Typical operational life of 300 operations at twice nominal current offers durability in demanding environments.
Complies with IEC classification R/TO and meets CE, RoHS standards ensuring quality and safety.
Ideal for use in PCBs, communications equipment, professional hi-fi, control, and instrumentation devices.

Product Description

ETA 1410-L210-L2F1-S02-1A Thermal Circuit Breaker is a high-speed, ultra-miniature protective device designed for PCB mounting in electronic and electrical applications. This 1-pole circuit breaker features a nominal current rating of 1 ampere and operates at rated AC voltage of 250V and DC voltage of 48V, providing reliable overcurrent protection through its thermal tripping mechanism.

The breaker utilizes a Type R tripping characteristic with a medium break time and includes a white pushbutton manual reset actuator, enhancing safety and ease of use on compact printed circuit boards. Solder pin terminals and base mount type allow secure and straightforward PCB integration while maintaining a small form factor with a width of 9mm and height of 15mm.

Its breaking capacity of 25 amperes ensures durability in protecting circuits, and the device is rated for approximately 300 operations at twice the nominal current, making it suitable for repeated use in industrial and commercial environments.

Conforming to IEC classification R/TO and certified to CE and RoHS standards, this thermal breaker is suitable for applications in communications equipment, professional audio devices, instrumentation, and control systems where compact, reliable circuit protection is essential.

Rated for 1 ampere current and single pole configuration. Thermal tripping mechanism with Type R characteristics and medium break time. Manual reset button actuator enhances safety and usability. Compact ultra-miniature design fits PCB layouts efficiently.

High breaking capacity ensures circuit protection reliability. Complies with CE and RoHS standards ensuring environmental and operational safety. Ideal for industrial, instrumentation, electronics, and communication systems.
