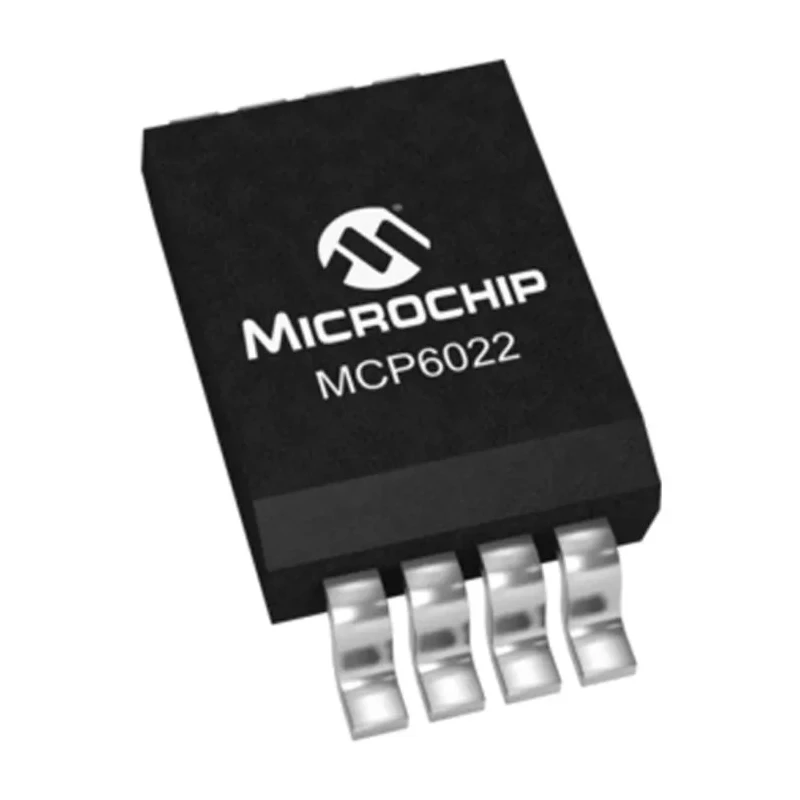

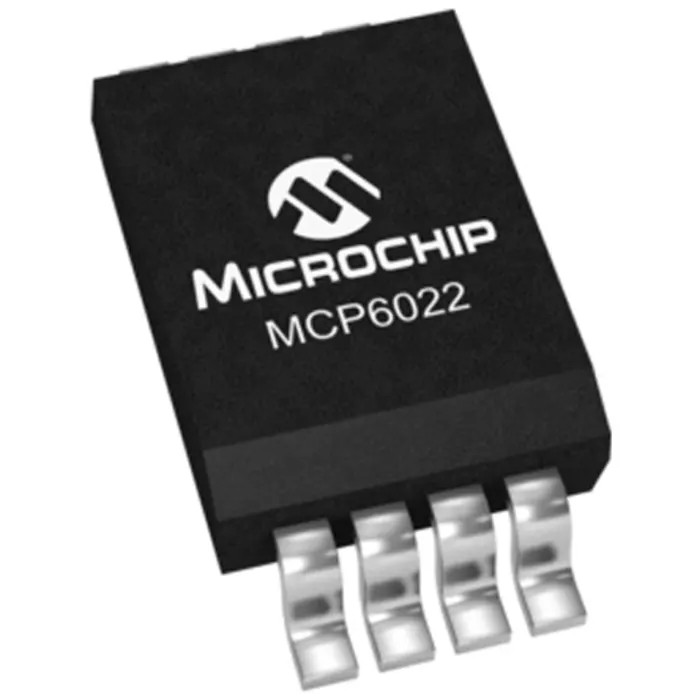

Microchip Operational Amplifier 10 MHz, 8-Pin SOIC, 5.5V Maximum Supply Voltage MCP6022-I/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | MCP6022-I/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6022 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Slew Rate | 7V/μs |
| MCP6022-E/SN Microchip, Operational Amplifier, 10 MHz, 8-Pin 5.5V SOICBrand | Microchip |
Key Features
- Surface mount SOIC package for ease of integration into PCB designs.
- Dual channel operational amplifier with 2 channels in one package.
- Wide operating voltage range from 3V to 5.5V ensuring compatibility with various circuits.
- High slew rate of 7 V/μs enables fast signal response.
- Very low input bias current of 1 pA suitable for sensitive analog applications.
- Wide temperature operating range from -40°C to 85°C for industrial applications.
- Output current capability up to 30 mA for driving loads directly.
- RoHS compliant and no automotive standard certification.
Product Description
Microchip MCP6022-I/SN is a high-performance operational amplifier designed for reliable and precise analog signal processing in industrial and electronic applications. This dual channel amplifier operates with a gain bandwidth of 10 MHz, suitable for audio, instrumentation, and control circuits.
The device comes in an 8-pin SOIC surface mount package with compact dimensions (4.9 mm length × 3.9 mm width × 1.5 mm height), making it appropriate for densely packed circuit boards. It supports a supply voltage range from 3V to 5.5V, accommodating low-voltage systems.
The MCP6022-I/SN offers a very low input bias current of 1 picoampere and an input offset voltage of ±500 μV, ensuring accurate amplification and minimizing error. Its fast slew rate of 7 V/μs enables it to handle rapid changes in input signals efficiently, making it well-suited for fast analog signal chains.
Operating temperature spans from -40°C to 85°C, allowing it to function reliably across a variety of environments including harsh industrial conditions. The output current capability of 30 mA allows direct drive of moderate loads.
The amplifier is RoHS compliant, ensuring environmental safety and regulatory conformance. It is not certified for automotive standards, thus better suited for general industrial or commercial electronics.
Surface mount SOIC package supports compact board layouts. Dual operational amplifiers integrated in a single 8-pin device. Wide supply voltage range from 3 to 5.5 volts. Low input bias current and offset voltage improve signal integrity.
Fast slew rate enables efficient handling of dynamic signals. Operating temperature range fits industrial applications. Robust output current supports direct load driving. RoHS compliant for environmentally conscious design.
Compact package dimensions optimize PCB space.
This Microchip Operational Amplifier series is suitable for use in industrial control systems, precision instrumentation, audio processing, and other electronic applications requiring reliable analog signal amplification. Explore other amplifiers within the Microchip amplifier range at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 10 MHz, suitable for various analog applications.
The maximum supply voltage for the MCP6022-I/SN is 5.5V, allowing it to operate within low-voltage systems.
This operational amplifier can provide an output current of up to 30 mA, enabling it to drive moderate loads directly.
The MCP6022-I/SN operates within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
The input bias current for the MCP6022-I/SN is very low at 1 picoampere, which is ideal for sensitive analog applications.
This operational amplifier comes in an 8-pin SOIC surface mount package, which facilitates integration into PCB designs.
The MCP6022-I/SN features a slew rate of 7 V/μs, allowing it to efficiently handle rapid changes in input signals.
The dimensions of this operational amplifier are 4.9 mm in length, 3.9 mm in width, and 1.5 mm in height.
Yes, the MCP6022-I/SN is RoHS compliant, ensuring it meets environmental safety standards.
This operational amplifier has 2 channels integrated into a single package, providing dual functionality.
