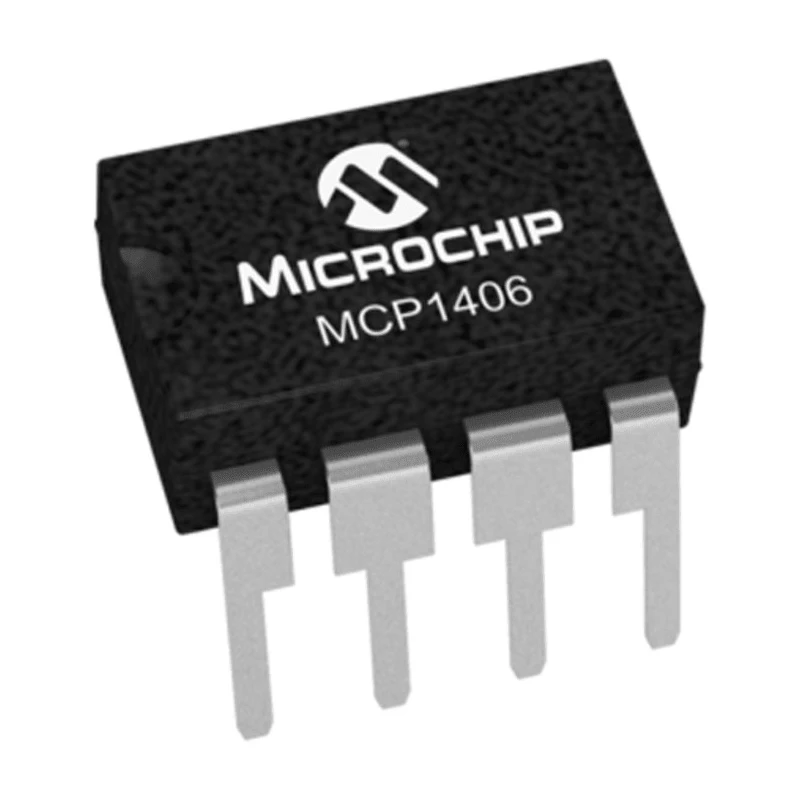

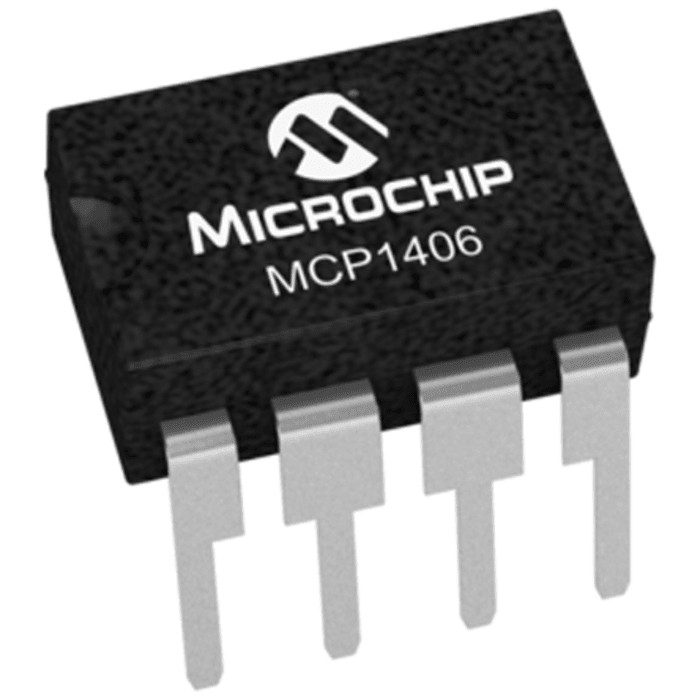

Microchip MOSFET Gate Driver 6A Output Current 8-Pin PDIP 18V MCP1406-E/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.3mm |
| Length | 9.27mm |
| Model | MCP1406-E/P |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | MCP1406 |
| Output Current | 6A |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 20ns |
| Pin Count | 8 |
| Minimum Supply Voltage | 18V |
| Number of Drivers | 1 |
| Fall Time | 20ns |
| Driver Type | MOSFET |
| Microchip TC4429CPA MOSFET Gate Driver 1, 6 A 8-Pin 20V, PDIPBrand | Microchip |
Key Features
- Provides a maximum output current of 6 amperes for effective MOSFET switching.
- Supports a supply voltage of 18 volts, with a single MOSFET driver output.
- Operating temperature range from -40°C to 125°C for reliable industrial use.
- Fast switching performance with rise and fall times of 20 nanoseconds each.
- Through-hole mount type suitable for robust PCB assembly.
- Complies with standard non-automotive usage; no automotive standard applied.
- Designed specifically for power management IC applications in electronics.
Product Description
Microchip MCP1406-E/P is a high-performance MOSFET gate driver designed to drive power MOSFET and IGBT gates in electronic circuits. Operating at a supply voltage of 18 volts, this device delivers a peak output current of 6A, which ensures rapid charging and discharging of gate capacitance, enabling efficient switching and minimal power loss.
The device is housed in a compact 8-pin PDIP package with dimensions of 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height. Its through-hole mount type facilitates easy integration into printed circuit boards for reliable mechanical and electrical connection.
Operating temperature ranges between -40°C and 125°C make it suitable for demanding industrial and commercial applications, ensuring consistent performance under harsh conditions. Featuring fast rise and fall times of 20 ns, the MCP1406-E/P enables high-speed switching, reducing switching losses and electromagnetic interference in power electronic systems.
This MOSFET Gate Driver is ideal for use in power management IC circuits, motor control, power supply modules, and other electronics where efficient power switching is critical. It provides a single driver output with 5 individual outputs internally configured for MOSFET gate drive.
Maximum output current: 6A. Package type: 8-pin PDIP. Single MOSFET driver with 5 outputs. Operation voltage up to 18V supply. Temperature range: -40°C to 125°C. Rise and fall time: 20 ns. Through-hole mount for sturdy PCB assembly.
Non-automotive standard compliant.
This product supports various industrial electronics applications requiring precise and rapid MOSFET gate driving capabilities. Its robust design complements projects in manufacturing, industrial automation, and laboratory equipment power management.
Discover more Microchip semiconductor products on EnvMart for efficient and reliable power electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 6 amperes, which allows for effective MOSFET switching.
It operates within a temperature range of -40°C to 125°C, making it suitable for industrial applications.
The MCP1406-E/P is housed in an 8-pin PDIP package, which is designed for through-hole mounting.
This model features rise and fall times of 20 nanoseconds each, enabling fast switching performance.
It provides a single MOSFET driver output with 5 individual outputs internally configured for gate driving.
The device supports a supply voltage of up to 18 volts, suitable for various power management applications.
It is specifically designed for power management IC applications, motor control, and power supply modules in electronics.
The dimensions are 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height.
This model complies with standard non-automotive usage; no automotive standard is applied.
It is a MOSFET driver designed to drive power MOSFET and IGBT gates in electronic circuits.
The country of origin for this product is India.
This model has a pin count of 8, which corresponds to its 8-pin PDIP package.
