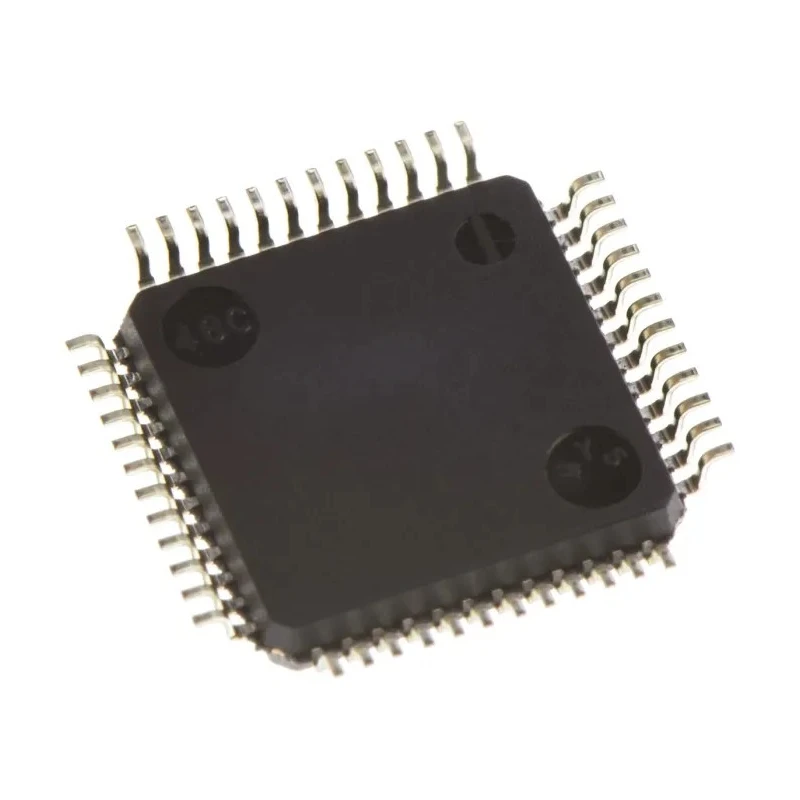

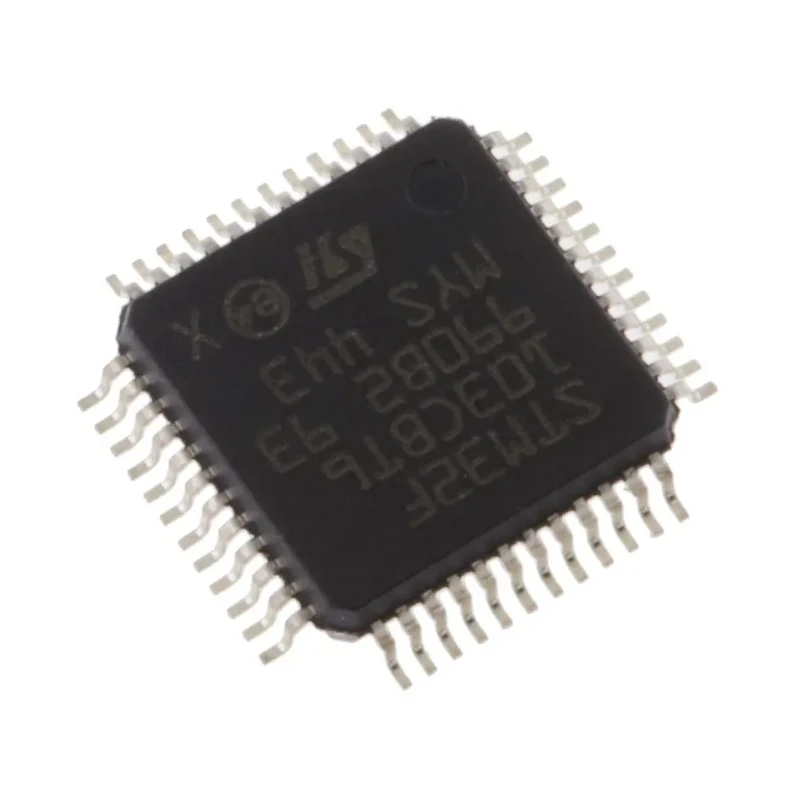

STMicroelectronics 32 bit ARM Cortex M3 Microcontroller STM32F103CBT6, 72 MHz, 128kB FLASH, 48-Pin LQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 7.2mm |
| Model | STM32F103CBT6 |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | STM32F1 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 20kB |
| Standards/Approvals | FBI |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 363mW |
| Minimum Supply Voltage | 2V |
| Device Core | ARM Cortex M3 |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 72MHz |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 12 Bit |
| Program Memory Type | FLASH |
| Temperature ranges | -40 to +85 °C or -40 to +105 °C |
Key Features
- Operates at a maximum clock frequency of 72 MHz.
- Integrated 128kB FLASH memory for program storage.
- Includes 20kB RAM for data processing.
- Features ARM Cortex M3 core architecture with 32-bit data bus width.
- Provides 10 channels of 12-bit ADCs for analog signal processing.
- Supports multiple timers with 3 available timers for control functions.
- Operates within a supply voltage range of 2V to 3.6V.
- Suitable for applications requiring operating temperatures from -40°C to 85°C.
Product Description
STMicroelectronics STM32F103CBT6 is a high-performance 32-bit ARM Cortex M3 microcontroller running at 72 MHz, featuring 128kB FLASH program memory and 20kB RAM. Its 48-pin LQFP surface mount package has compact dimensions of 7.2 mm length and width, with a height of 1.45 mm. The microcontroller operates on a supply voltage from 2V up to 3.6V and supports operating temperatures ranging from -40°C to 85°C, making it suitable for a wide range of industrial and embedded applications.
This device integrates 10 channels of 12-bit analog-to-digital converters (ADCs) and 3 timers, ideal for motor control peripherals and real-time processing tasks. The RISC-based ARM Cortex M3 core delivers excellent real-time behavior with a 32-bit data bus width, facilitating efficient handling of complex embedded software. Applications include motor drives, PC gaming accessories, HVAC control systems, and various industrial embedded systems requiring reliable, low power consumption microcontrollers.
The STM32F103 series offers software and pin-to-pin compatibility, enabling streamlined development and deployment within embedded product suites. The device features FLASH program memory with type FLASH, adding durability and reprogrammability to embedded designs.
Operates at a maximum clock frequency of 72 MHz. 128kB FLASH memory and 20kB SRAM for processing and storage. ARM Cortex M3 32-bit RISC core architecture. 10 x 12-bit ADC channels integrated for analog inputs. Three timers for precision time control and event handling.
Wide supply voltage range from 2V to 3.6V supports versatility. Extended operating temperature range (-40°C to 85°C) for industrial use. Compact 48-pin Low-profile Quad Flat Package (LQFP) suitable for surface mount. Ideal for embedded applications in automotive, industrial, HVAC, and consumer electronics.
Explore the STM32F103CBT6 and other STM32F1 Microcontrollers for robust embedded solutions on EnvMart. Discover comprehensive Microcontroller components, development tools, and technical resources for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F103CBT6 operates at a maximum clock frequency of 72 MHz.
It features 128kB of FLASH memory for program storage.
This microcontroller integrates 10 channels of 12-bit ADCs for analog signal processing.
The STM32F103CBT6 operates within a temperature range of -40°C to 85°C.
It operates within a supply voltage range of 2V to 3.6V.
The STM32F103CBT6 comes in a 48-pin Low-profile Quad Flat Package (LQFP).
This model includes 20kB of RAM for data processing.
It features three timers for control functions.
The height of this microcontroller is 1.45 mm.
It is based on the ARM Cortex M3 core architecture with a 32-bit data bus width.
The microcontroller is compliant with FBI standards/approvals.
It is suitable for applications such as motor drives, PC gaming accessories, and HVAC control systems.
