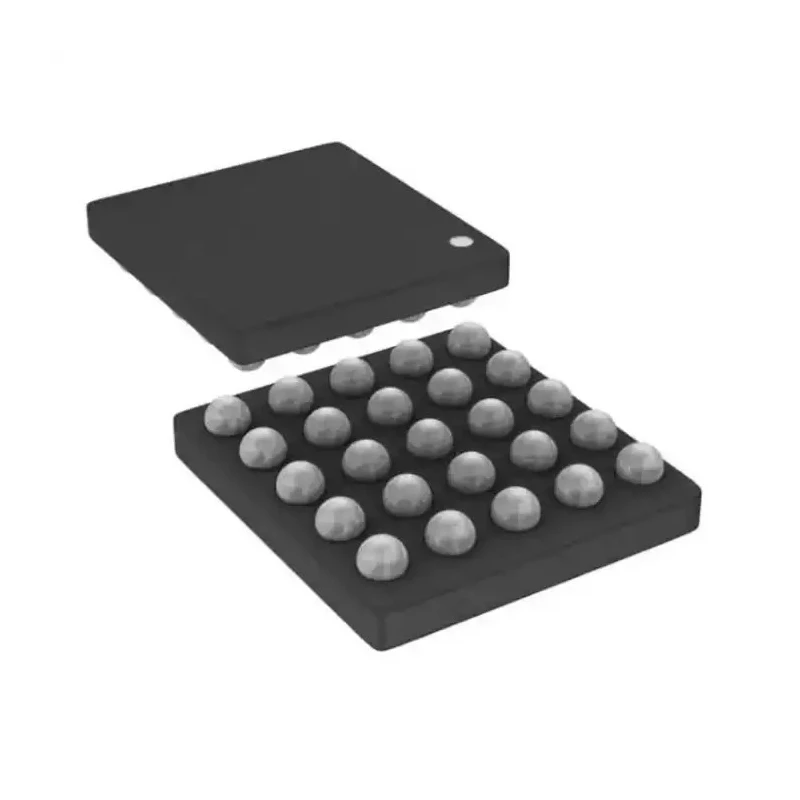

STMicroelectronics 32 bit ARM Cortex M0+ Microcontroller 32 MHz 32kB FLASH 25-Pin WLCSP STM32L0
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Length | 2.49mm |
| Model | STM32L0 |
| Width | 2.1mm |
| Mount Type | Surface |
| Series | STM32L0 |
| Maximum Operating Temperature | 175°C |
| Package Type | WLCSP |
| Minimum Operating Temperature | -55°C |
| Ram size | 8kB |
| Interface Type | I2C/SPI |
| Standards/Approvals | RoHS3, REACH |
| Pin Count | 25 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.65V |
| Device Core | ARM Cortex M0+ |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 20 |
| Instruction Set Architecture | ARM Cortex M0 |
| ADCs | 12 bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 32 MHz.
- Features 32kB of FLASH program memory with ECC protection.
- Includes 8kB RAM and 1kB data EEPROM for data storage.
- Equipped with 20 programmable I/Os and supports I2C and SPI interfaces.
- Small 25-pin WLCSP package type designed for surface mount.
- Operates within a supply voltage range of 1.65V to 3.6V.
- Temperature range from -55°C up to 175°C for industrial applications.
- Ultra-low power consumption with standby and stop modes.
Product Description
The STMicroelectronics STM32L031E6Y6TR is a 32-bit microcontroller featuring an ARM Cortex M0+ core operating at a clock speed of 32 MHz. Designed for ultra-low power consumption, this microcontroller integrates 32kB of FLASH memory with ECC for reliable program storage, 1kB of data EEPROM, and 8kB of RAM, providing ample memory for embedded applications.
This device comes in a compact 25-pin WLCSP surface-mount package with dimensions of 2.49mm length and 2.1mm width, making it ideal for space-constrained designs. The microcontroller operates over a wide supply voltage range from 1.65V to 3.6V and supports operating temperatures between -55°C and 175°C, suitable for demanding industrial and automotive environments.
The STM32L031E6Y6TR features 20 programmable input/output pins and supports communication interfaces such as I2C and SPI. Its architecture includes an ultra-low power standby mode with 0.23 μA consumption and a stop mode with 0.35 μA, alongside multiple wakeup pins and lines to optimize energy efficiency.
It incorporates a 12-bit ADC and additional peripherals for flexible analog and digital interfacing. Safety features include an ultra-safe brownout reset with selectable thresholds and programmable voltage detector. The integrated flash memory sectors have protection against unauthorized read/write operations to safeguard data integrity.
This microcontroller complies with RoHS3 and REACH environmental standards, making it suitable for use in electronic, automotive, industrial, and IoT applications requiring reliable low-power processing power in a compact form factor.
Operates at a maximum clock frequency of 32 MHz. Features 32kB of FLASH program memory with ECC protection. Includes 8kB RAM and 1kB data EEPROM for data storage. Equipped with 20 programmable I/Os and supports I2C and SPI interfaces.
Small 25-pin WLCSP package type designed for surface mount. Operates within a supply voltage range of 1.65V to 3.6V. Temperature range from -55°C up to 175°C for industrial applications. Ultra-low power consumption with standby and stop modes.
Integrated 12-bit ADC for analog signal processing. RoHS3 and REACH compliant, ensuring environmental safety standards. Explore a wide range of Microcontrollers and embedded solutions on EnvMart for your industrial, laboratory, and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features 32kB of FLASH program memory with ECC protection.
This model operates within a supply voltage range of 1.65V to 3.6V.
The operating temperature range is from -55°C to 175°C.
It is equipped with 20 programmable input/output pins.
This model supports I2C and SPI communication interfaces.
It comes in a compact 25-pin WLCSP surface-mount package, measuring 2.49mm in length and 2.1mm in width.
It includes 8kB of RAM for data storage.
Yes, it incorporates an ultra-safe brownout reset with selectable thresholds and a programmable voltage detector.
It features a 12-bit ADC for analog signal processing.
This microcontroller complies with RoHS3 and REACH environmental standards.
The core architecture is based on the ARM Cortex M0+ design.
