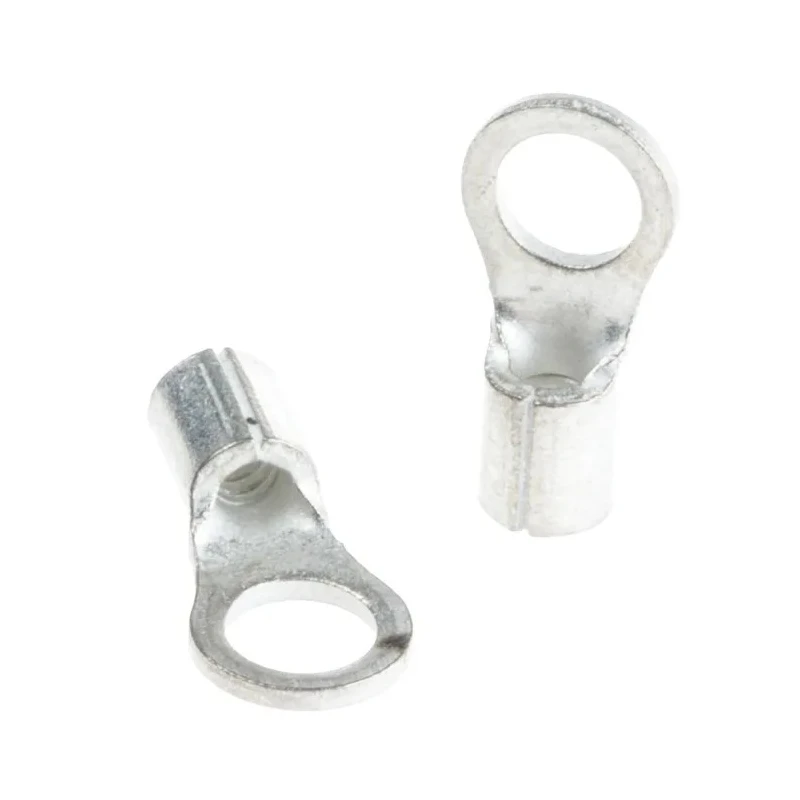

RS PRO Solistrand Uninsulated Crimp Ring Terminal M3.5 Stud Size 22 AWG to 16 AWG Wire Size 34105
Specifications
| Country of Origin | United States |
|---|---|
| Brand | RS PRO |
| Model | 34105 |
| Insulation | Uninsulated |
| Overall Length | 11.4mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.54mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
| Standards/Approvals ANSI/ESD S20.20 | 2021 Electrostatic Control Standard, RoHS |
Key Features
- Constructed from fine grade high conductivity copper for optimal electrical performance.
- Electro tin plating improves resistance to corrosion.
- Brazed seams enhance barrel strength for harsh environments.
- Dimpled and serrated barrel increases electrical contact and tensile strength.
- Bell-shaped barrel entrance facilitates quick and easy wire insertion.
- Maximum operating temperature of 170°C suitable for standard industrial applications.
- Compatible with associated Solistrand crimping tools for optimal mechanical and electrical results.
Product Description
TE Connectivity 34105 Solistrand uninsulated crimp ring terminal is engineered to provide reliable and durable wire termination for solid, stranded, and irregular shaped conductors. Rated for use with wire sizes from 22 AWG to 16 AWG and featuring a 3.5 mm stud size, these ring terminals deliver high conductivity and robust mechanical strength. They are manufactured from fine grade copper with electro tin plating that offers superior corrosion resistance and excellent electrical contact.
The closed barrel design with brazed seams enhances the metal strength around the barrel, making these terminals ideal for harsh industrial and commercial environments. The serrated inner surface increases tensile strength and maximizes electrical contact area after crimping. Their bell-shaped barrel entrance reduces installation time by enabling easy wire insertion.
These terminals are suitable for a wide range of industrial applications including motors, materials handling equipment, heavy equipment, switchgear, telecommunications, appliances, panel boxes, power supplies, and control instruments. They comply with the ANSI/ESD S20.20:2021 electrostatic control standard and are RoHS compliant, ensuring reliability and environmental safety.
Constructed of fine grade high conductivity copper for optimal electrical performance. Electro tin plating for improved corrosion resistance. Brazed seams increase barrel strength providing enhanced durability. Serrated barrel interior enhances electrical and mechanical contact performance.
Bell-shaped barrel mouth for quick wire insertion and reduced installation time. Rated for maximum operating temperature of 170°C for reliable performance in standard applications. Designed for use with 22 AWG to 16 AWG wires and M3.5 stud size.
Compliant with ANSI/ESD S20.20:2021 and RoHS directives.
This Solistrand crimp ring terminal supports industrial, electrical, telecommunications, and manufacturing applications requiring effective wire termination solutions. It is a trusted component for systems demanding high electrical conductivity and mechanical robustness.
Explore more premium Electronics Components and Ring Terminals at EnvMart for your industrial and commercial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this crimp ring terminal is 170°C, making it suitable for standard industrial applications.
This terminal is designed for use with wire sizes ranging from 22 AWG to 16 AWG.
The stud size for this crimp ring terminal is M3.5.
It is constructed from fine grade high conductivity copper and features electro tin plating for improved corrosion resistance.
The barrel features brazed seams for enhanced strength and a serrated interior that increases electrical contact and tensile strength after crimping.
This terminal complies with the ANSI/ESD S20.20:2021 electrostatic control standard and is RoHS compliant.
The overall length of this crimp ring terminal is 11.4mm.
The outer ring diameter is 5.54mm and the inner ring diameter is 3.68mm.
It is suitable for a wide range of industrial applications including motors, telecommunications, and control instruments.
The bell-shaped barrel entrance of this terminal facilitates quick and easy wire insertion, reducing installation time.
Yes, the design and materials used in this terminal make it suitable for harsh industrial and commercial environments.
The minimum wire size is 0.26mm² and the maximum wire size is 1.65mm².
