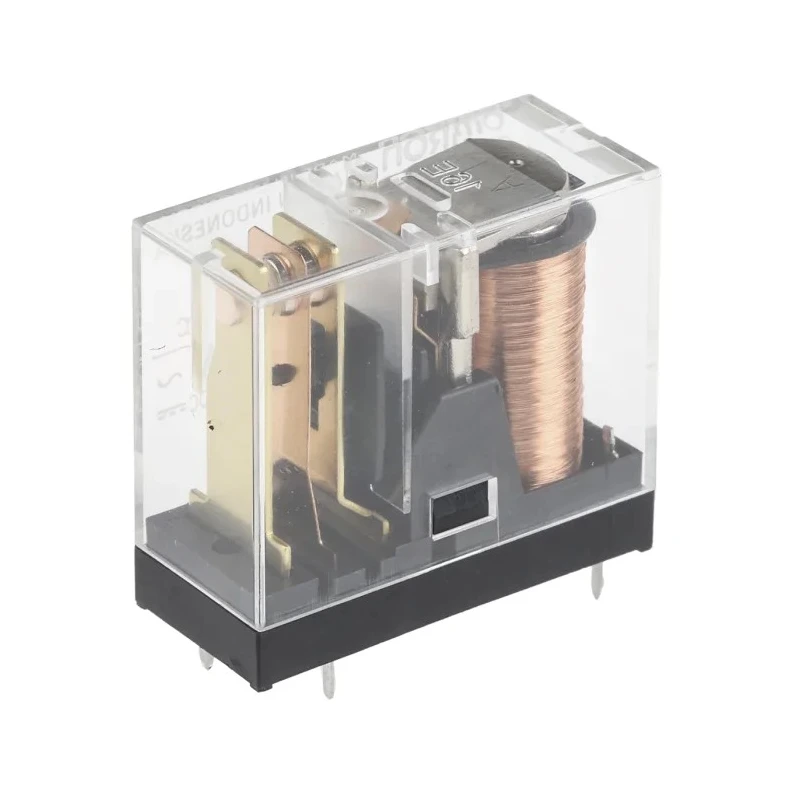

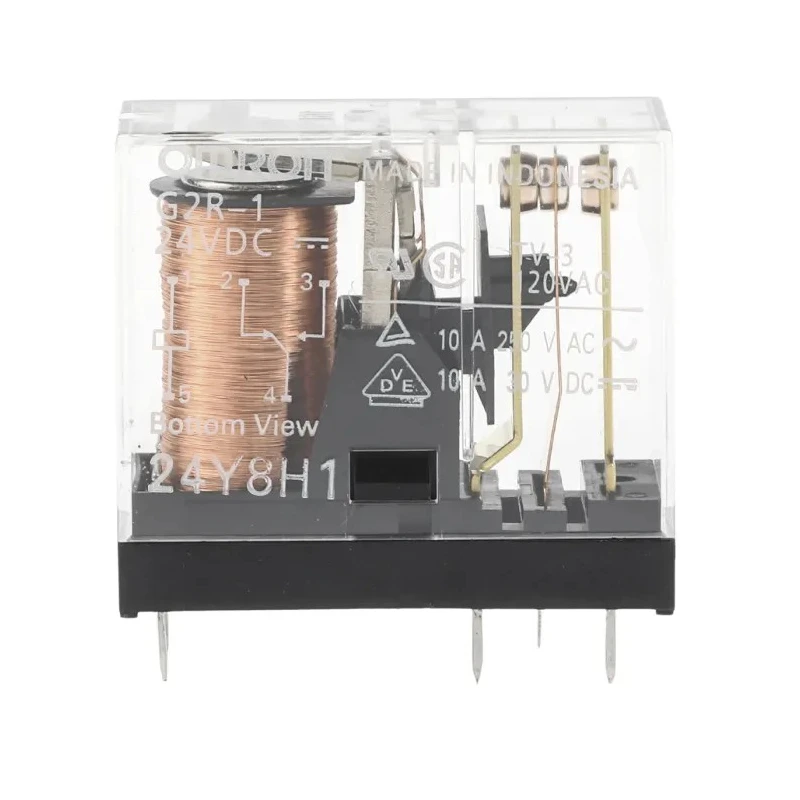

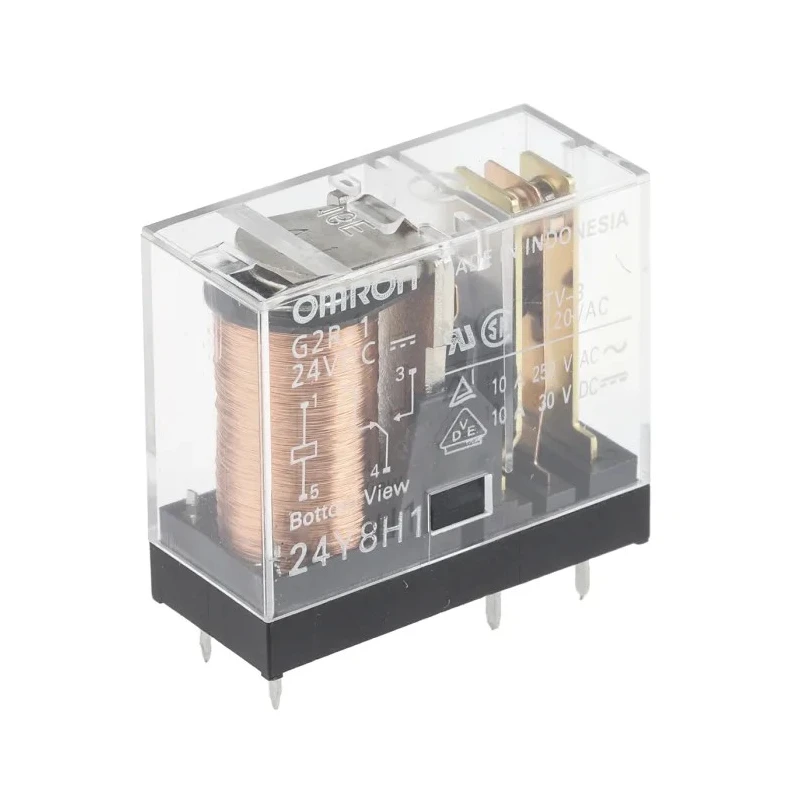

Omron PCB Power Relay, 24V dc Coil, 10A Switching Current, SPDT G2R-1 DC24
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-1 DC24 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R-1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Through Hole |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 440V ac |
Key Features
- This power relay operates with a coil voltage of 24V dc and a coil resistance of 1.1kΩ.
- It has a single pole double throw (SPDT) contact configuration suitable for PCB mounting with through hole terminals.
- The relay supports switching currents up to 10A and can handle switching voltages of 125V dc and 440V ac.
- Designed to operate in harsh conditions with a temperature range from -40°C to 70°C.
- The contact material consists of a silver alloy ensuring low contact resistance of 30mΩ max.

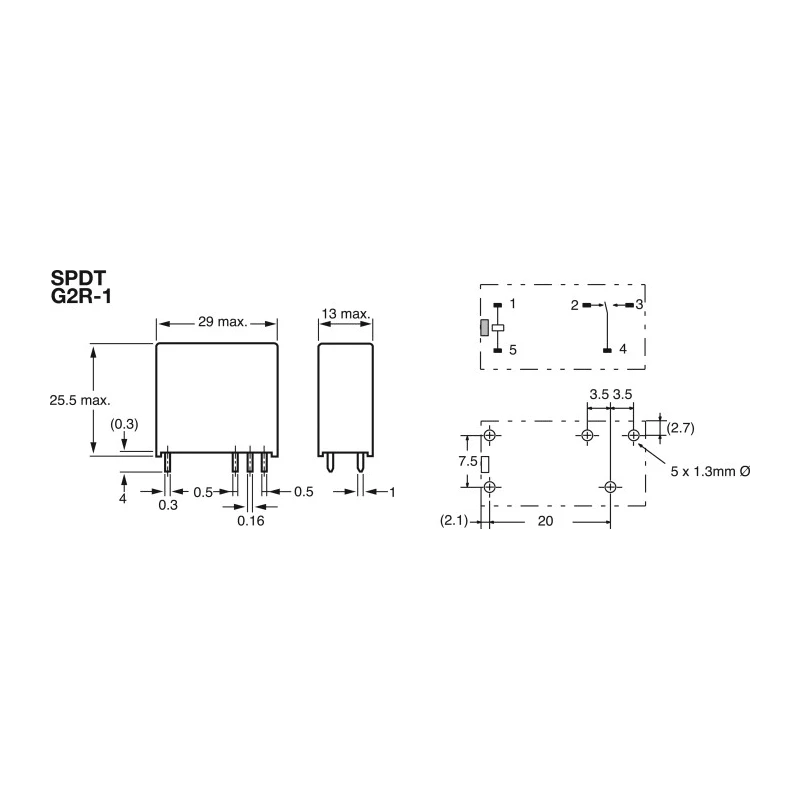

- It has a compact form factor with dimensions 29mm (L) x 25.5mm (H) x 13mm (W) for easy PCB integration.
- This standard non-latching relay provides high dielectric strength of 5000 V between coil and contacts.
- It features excellent surge resistance up to 10000 V and complies with RoHS standards.
Product Description
Omron G2R-1 DC24 PCB Power Relay is a general-purpose, non-latching power relay designed for reliable switching with a 24V dc coil and a switching current capacity of 10A. Its SPDT (single pole double throw) contact configuration facilitates versatile control in electrical and automation circuits. The relay is configured for printed circuit board (PCB) mounting with through hole terminals, making it suitable for compact electronic assemblies.
Featuring a silver alloy contact material, the relay ensures low contact resistance with a maximum of 30 milliohms, combined with a high dielectric strength of 5000 V between the coil and contacts, enhancing electrical isolation and safety. It operates efficiently within a wide ambient temperature range from -40°C up to 70°C, enabling deployment in harsh industrial environments.
The relay supports switching of both DC and AC voltages - up to 125V dc and 440V ac respectively - meeting diverse application requirements. It demonstrates robust mechanical resilience with resistance to vibration and shock, including vibration tolerance of up to 0.75 mm single amplitude at frequencies between 10 to 55 Hz and shock resistance up to 1000 m/s².
The coil characteristics include a rated voltage of 24V dc, coil resistance of 1100 ohms, operate time of 15 milliseconds maximum, and rapid release time of 5 milliseconds maximum. This enables precise and fast switching control for demanding electrical systems.
Compliant with RoHS directives, this relay provides environmentally conscious and reliable performance. The compact dimensions of 29 mm length, 25.5 mm height, and 13 mm width allow easy integration into PCB layouts for automation, industrial control, HVAC systems, and electrical equipment.
This relay is ideal for use in industrial automation, signal conditioning, and control systems where durable, reliable switching is required. Package includes a standard non-latching G2R-1 series relay configured for PCB mounting with through hole terminals.
Explore the EnvMart catalog for a wide range of electrical and automation components to meet your industrial and commercial system requirements.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V dc.
It supports a maximum switching current of 10A.
The dimensions are 29mm in length, 25.5mm in height, and 13mm in width.
It features a single pole double throw (SPDT) contact configuration.
The contact material consists of a silver alloy, ensuring low contact resistance.
It can handle switching voltages of up to 125V dc and 440V ac.
The relay operates efficiently within a temperature range from -40°C to 70°C.
It is designed for PCB mounting with through hole terminals.
The coil resistance is 1.1kΩ.
It has a high dielectric strength of 5000 V between the coil and contacts.
This relay complies with RoHS standards.
The maximum operate time is 15 milliseconds, and the rapid release time is 5 milliseconds.
