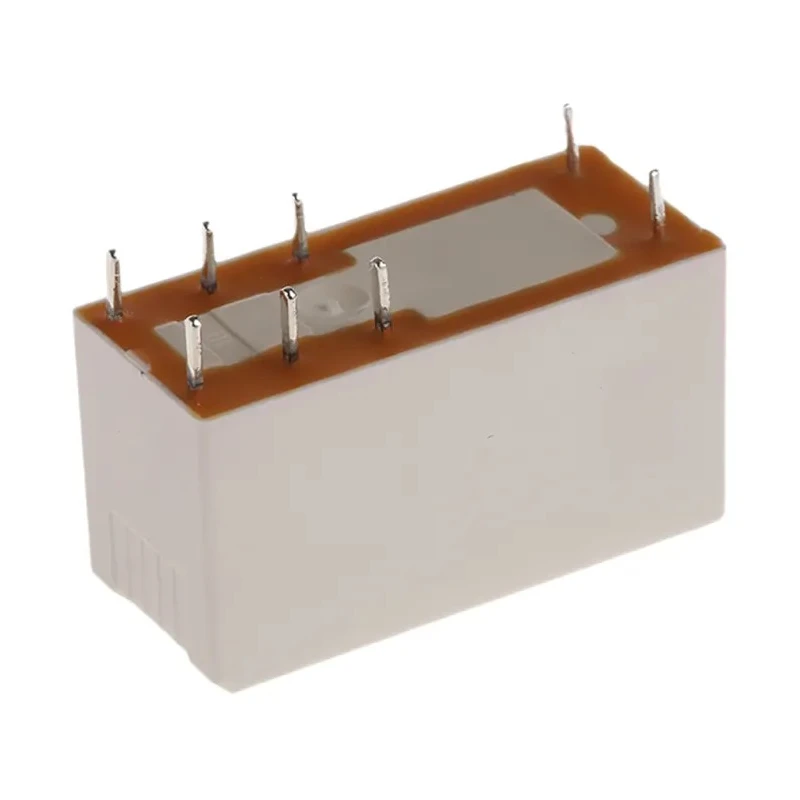

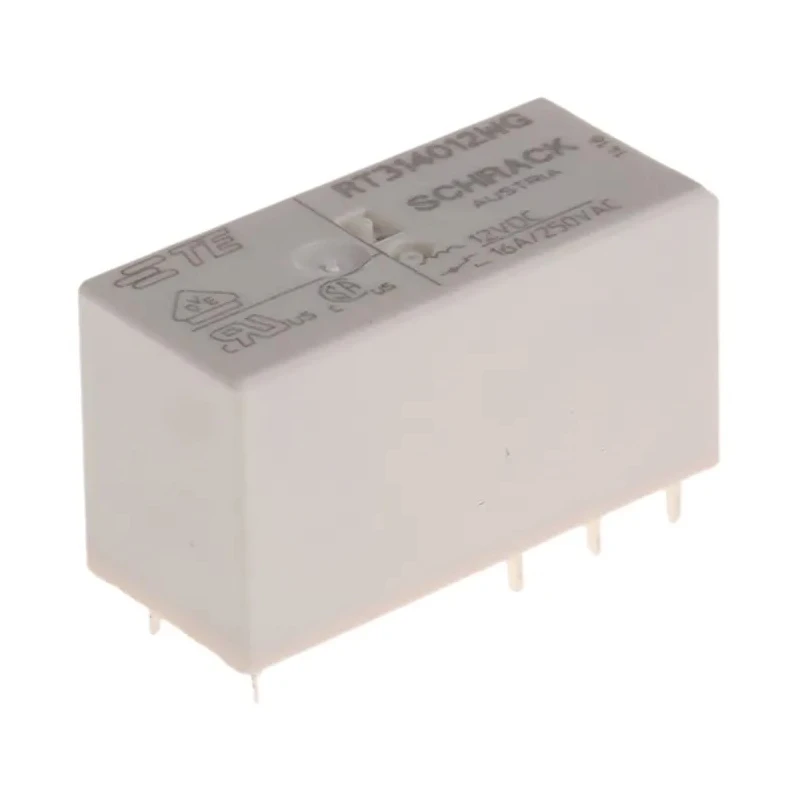

TE Connectivity PCB Power Relay 12V DC Coil 16A Switching Current SPDT 8-1415535-6

TE Connectivity 8-1415535-6 is a PCB Power Relay designed for reliable switching operations in electrical and automation systems. Featuring a 12V DC coil voltage, this RT1 series relay delivers a switching current capacity of 16A, making it suitable for a wide range of industrial and domestic applications. Its SPDT contact configuration allows flexible circuit control on printed circuit boards via through-hole mounting.

The relay dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height facilitate compact PCB integration. Silver alloy contacts provide excellent electrical conductivity and resistance to wear and corrosion for long-term reliability. The coil resistance is precisely 360 ohms with a coil power consumption of just 400mW, offering energy-efficient operation.

Designed for robust performance, this relay operates reliably between minimum temperatures of -40°C and maximum temperatures of 85°C. It meets strict industry standards including IEC, REACH, RoHS, UL, and VDE for safety and environmental compliance. The RT1 series is flux proof with a 3.5mm pinning design, ensuring durability against soldering processes.

Common use cases for the TE Connectivity 8-1415535-6 relay include interface control, industrial automation tasks, home domestic applications, security lighting systems, and various heating controls. It enables efficient power switching and control in demanding electrical circuits.

The relay features a 12V DC coil voltage ensuring compatibility with common control circuits. It supports a switching current of 16 amperes, suitable for high power switching. SPDT (Single Pole Double Throw) contact configuration offers flexible switching options.

Through-hole terminal type ensures strong mechanical and electrical connection. Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height allow easy integration on PCBs. Built with silver alloy contacts for enhanced conductivity and durability.

Coil resistance measures 360 ohms with coil power at 400 milliwatts for efficient operation. Operating temperature range from -40°C to 85°C supports harsh environments. Complies with IEC, REACH, RoHS, UL, and VDE standards ensuring safety and environmental compliance.

Intended for use in interface, automation, domestic applications, security lighting, and heating systems.
