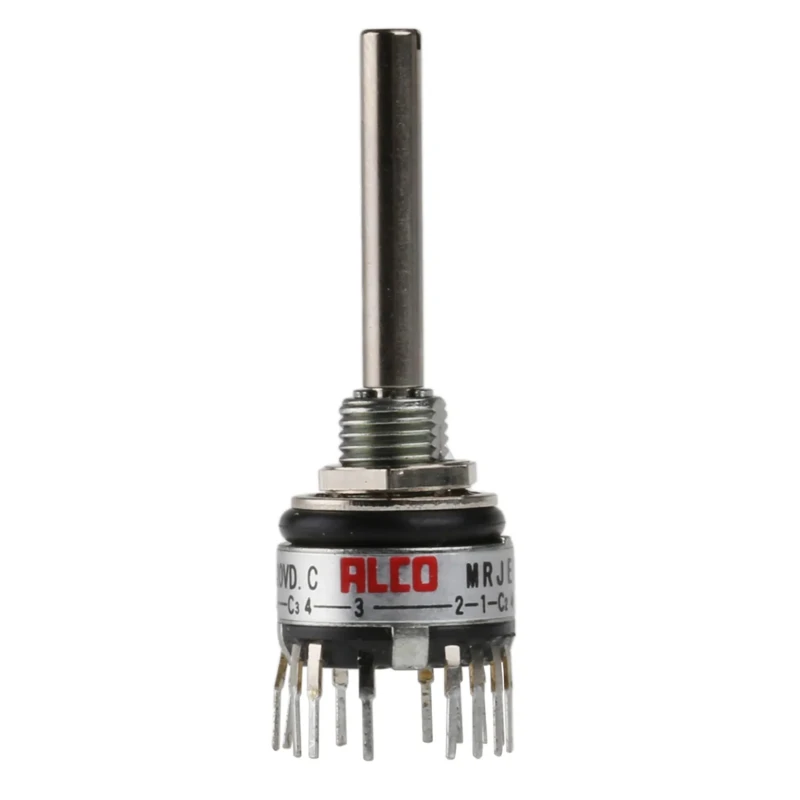

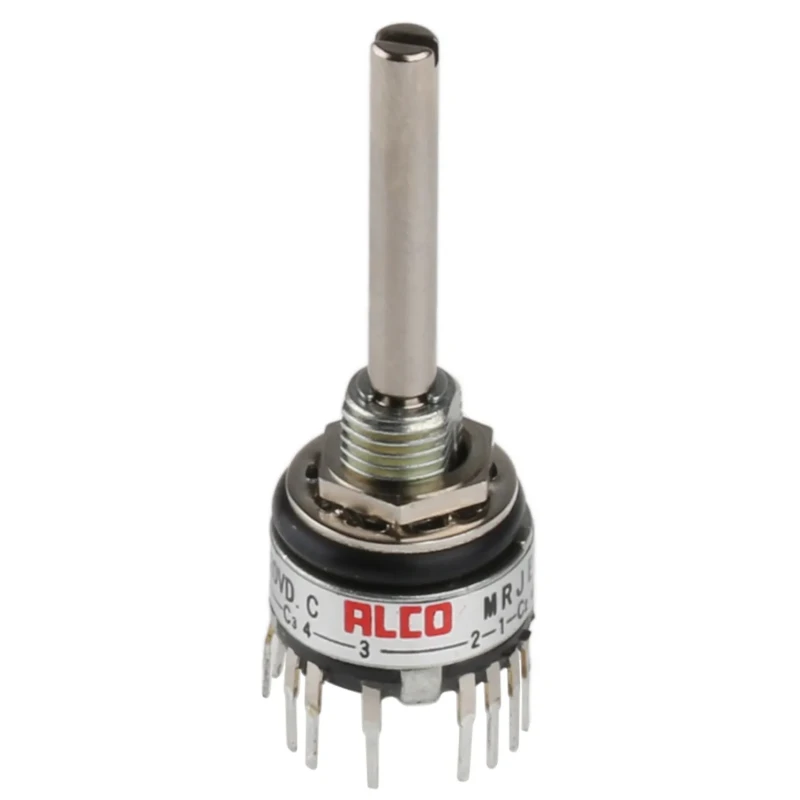

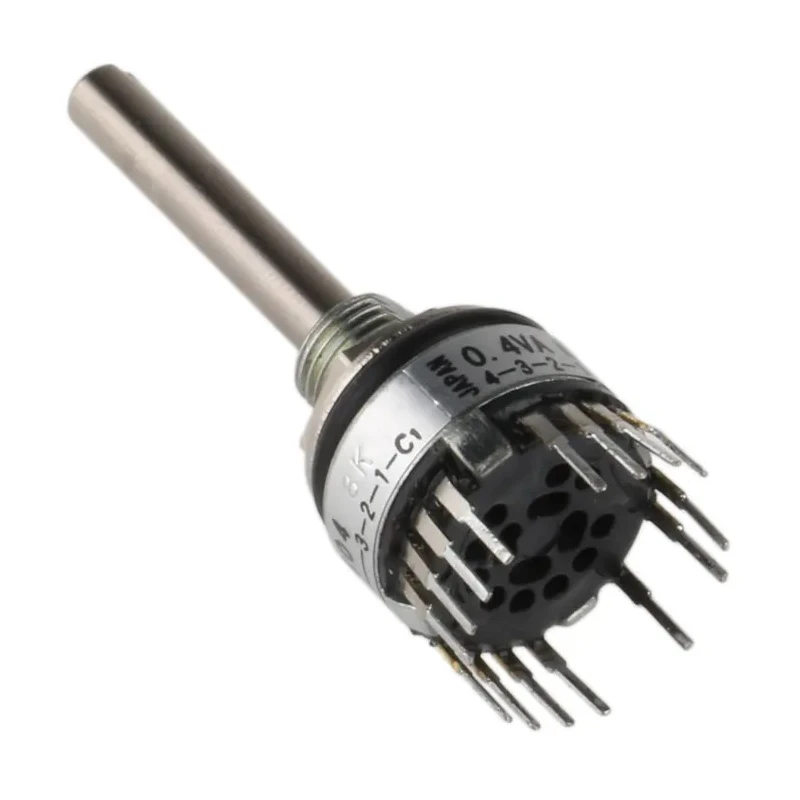

TE Connectivity MRJ 4 Position 3P Rotary Switch 400mA Panel Mount Solder Terminals MRJE3-404
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Height | 34.04mm |
| Model | MRJE3-404 |
| Depth | 11.94mm |
| IP Rating | IP67 |
| Width | 11.94mm |
| Mount Type | Panel |
| Housing Material | Epoxy |
| Series | MRJ |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 3P |
| Number of Positions | 4 |
| Switch Configuration | Breakaway Header |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder |
| Maximum dc Voltage | 20V dc |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Switch Operation | Latching, Momentary |
| Switch Contact Current | 400mA |
| Mechanical Life | 30000Cycles |
| Maximum AC Voltage | 20V ac |
| Angle of Throw | 30 ° |
| Panel cut-out | Ø6.4mm |
| Lorlin CK, 4 Position 3PST Rotary Switch, 150mA, SolderBrand | Lorlin |
| TE Connectivity Rotary Switch, 400 mA @ 20 V, PCBBrand | TE Connectivity |
Key Features
- Compact miniature rotary switch with IP67 rated enclosure.
- Housing made of durable epoxy for robust performance.
- Gold-plated nickel break-before-make contacts ensure reliable operation.
- Suitable for panel mounting with a panel cut-out diameter of 6.4mm.
- Operates within temperature range of -20°C to 70°C for varied applications.
- Mechanical life of 30000 cycles guarantees long usage.
- Non-illuminated rotary switch with a 30° angle of throw.
- Designed for dry circuit switching in communication and portable test equipment.
Product Description
TE Connectivity MRJE3-404 is a miniature 4 Position 3P rotary switch engineered for industrial electrical and automation applications. Its robust epoxy housing delivers excellent durability, while the IP67 rating guarantees protection against dust and water ingress, making it ideal for harsh environments.
The rotary switch supports a current rating of 400mA and maximum AC/DC voltages of 20V, suitable for low voltage control circuits. Its latching and momentary switch operations provide flexibility for various switching needs. Gold-plated nickel break-before-make contacts offer a wiping action ensuring reliable long-term connectivity and minimizing contact wear.
This switch is panel mounted with a 6.4mm diameter cutout and features solder terminal type connections. It operates efficiently across a temperature range from -20°C to 70°C and has a mechanical endurance of 30000 cycles, supporting sustained industrial usage.
Commonly applied in communication devices, portable test and monitoring equipment, and other dry circuit switching scenarios, this compact switch has a shaft measuring 3.30mm in diameter and 19mm length, equipped with a screwdriver slot for knob-less operation.
Durable epoxy housing with IP67 protection suitable for industrial and harsh environments. Gold-plated nickel contacts provide reliable switching with break-before-make action. Panel mount type with precise cutout and solder terminal connections for secure installation.
Temperature range of -20°C to 70°C supports versatility in various climates. Compact size with a 30° angle of throw and designed for 4 position and 3 poles operation. Ideal for use in communication, test, monitoring equipment, and other low voltage applications.
Manufactured in Japan ensuring high-quality standards and product reliability.
This TE Connectivity rotary switch MRJE3-404 integrates seamlessly into electrical and automation solutions, enhancing system control and operation. For further technical documents and compliance certificates, refer to the product datasheet from TE Connectivity. Buyers seeking high reliability, compact design, and IP67 protection will find this switch an excellent choice.
Explore our range of Rotary Switches by TE Connectivity and related electrical components for comprehensive industrial and electronics solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a contact current rating of 400mA, suitable for low voltage control circuits.
The rotary switch has an IP67 rating, providing protection against dust and water ingress, making it suitable for harsh environments.
It operates efficiently within a temperature range of -20°C to 70°C, allowing for versatility in various climates.
This unit is designed for panel mounting, requiring a panel cut-out diameter of 6.4mm for installation.
The switch has a height of 34.04mm, a width of 11.94mm, and a depth of 11.94mm.
It has a mechanical life of 30,000 cycles, ensuring long-term usability in applications.
This rotary switch supports both latching and momentary switch operations, providing flexibility for various applications.
The switch features a 3P (three-pole) contact configuration with four positions.
The housing is made of durable epoxy, which contributes to its robustness and suitability for industrial applications.
The maximum operating voltage for both AC and DC is 20V, making it suitable for low voltage applications.
It features solder terminals, providing secure connections for installation.
The switch complies with RoHS standards, ensuring it meets environmental regulations.
