NEUTRAL Inductive Proximity Sensor Threaded Barrel M18 PNP 36 V DC 5 mm Detection Range NBB5-18GM50-E2
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | NEUTRAL |
| Length | 50mm |
| Model | NBB5-18GM50-E2 |
| Depth | 18mm |
| IP Rating | IP68 |
| Width | 18mm |
| Mount Type | Flush |
| Housing Material | Brass White Bronze Coated |
| Output type | PNP |
| Series | NBB |
| Maximum Operating Temperature | 85°C |
| Thread Size | M18 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1.95kHz |
| Standards/Approvals | DNV GL rules for classification - Ships |
| Maximum Supply Voltage | 36V |
| Maximum Detection | 5mm |
| M18 PNP PROX. SWITCHBrand | NEUTRAL |
| IND.PROX. SWITCH M18 PNPBrand | NEUTRAL |
Key Features
- Constructed with nickel-plated brass housing with PBT face for durability.
- Equipped with LED indication for operational status monitoring.
- Flush or embeddable installation providing versatile mounting options.
- Rated IP68 protection for reliable performance in harsh environments.
- Operates within a temperature range from -40°C to 85°C.
- Maximum switching frequency of 1.95 kHz suitable for fast switching applications.

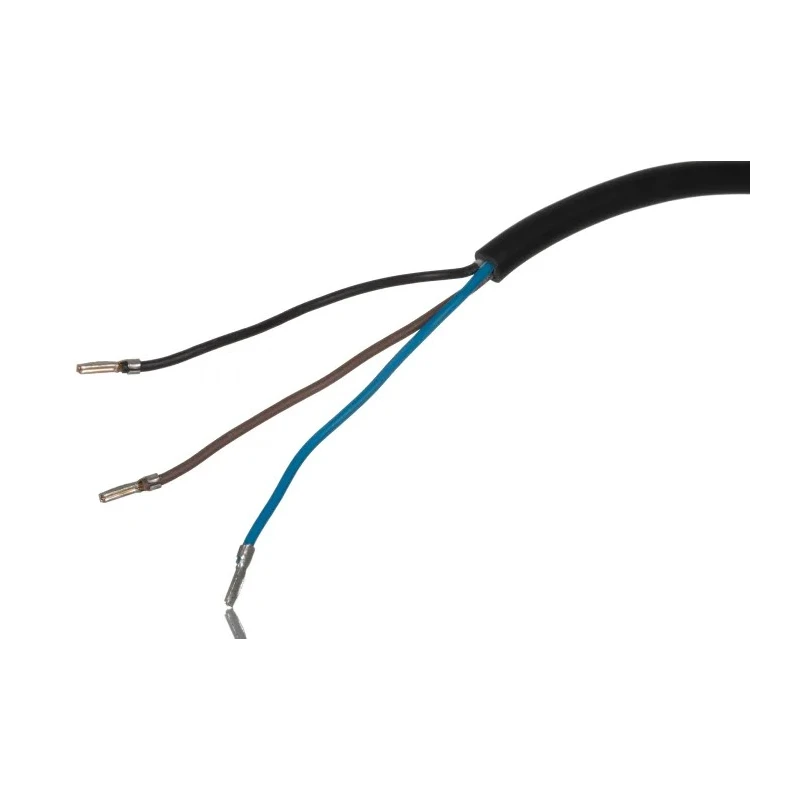

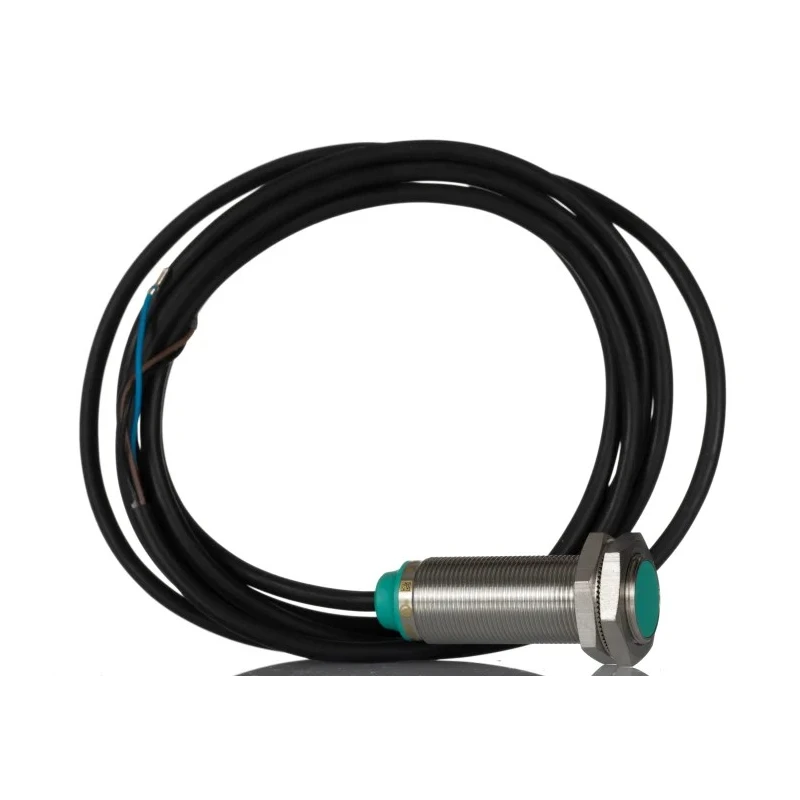

- Pre-cabled with a 2-meter PVC cable for convenient connection.
- Provides short circuit and reverse polarity protection to ensure device safety.
Product Description
Pepperl + Fuchs NBB5-18GM50-E2 is a high-quality inductive Proximity Sensor featuring a threaded barrel design with M18 thread size, designed for flush mounting in industrial automation and control systems. Powered by 36 V DC, this sensor offers a switching range of 5 mm and a robust nickel-plated brass body with a PBT face that ensures longevity and resistance against mechanical and environmental stresses.
The sensor includes LED indication for real-time status feedback, aiding in maintenance and troubleshooting within machinery. It operates reliably in extreme temperatures ranging from -40°C up to 85°C, making it suitable for harsh industrial environments.
Its IP68 rated enclosure provides superior protection against dust and water ingress, allowing it to be used in demanding applications including marine and ship classification systems compliant with DNV GL standards.
The NBB5-18GM50-E2 supports a maximum switching frequency of 1.95 kHz and a switching current of 200 mA with PNP output, suitable for high-speed sensor applications. Connection is simplified by a pre-cabled 2-meter PVC cable and the sensor boasts short circuit and reverse polarity protection to enhance operational safety.
This Pepperl + Fuchs sensor is ideal for use in industrial automation, factory assembly lines, robotics, and process control where reliable non-contact detection of metal objects is critical. The robust build and international certification make it an excellent choice for integration into industrial control panels and automated machinery.
Constructed of nickel plated brass housing with PBT face for durability. 6 mm thick sensor housing rated IP68 for harsh environments. Flush mountable design for embedded installation. LED indicator provides immediate operational feedback.
Pre-cabled with 2 m PVC cable for easy installation. Suitable for industrial automation, manufacturing, and maritime applications. Short circuit and reverse polarity protection to safeguard sensor electronics. Compatible with supply voltages from 10 V to 36 V DC.
Output: PNP, switching current up to 200 mA. For more sensors and automation products, explore the Pepperl + Fuchs range on EnvMart for reliable industrial sensors and proximity detection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is 5 mm.
It provides a PNP output type.
The maximum switching frequency is 1.95 kHz, suitable for fast switching applications.
It operates with a supply voltage range from 10 V to 36 V DC.
The sensor has a length of 50 mm, a width of 18 mm, and a depth of 18 mm.
The maximum operating temperature is 85°C.
Yes, it includes short circuit and reverse polarity protection to ensure device safety.
It has an IP68 rating, providing protection against dust and water ingress.
It features a nickel-plated brass housing with a PBT face for durability.
It comes pre-cabled with a 2-meter PVC cable for convenient connection.
It supports flush or embeddable installation, providing versatile mounting options.
It complies with DNV GL rules for classification of ships.
