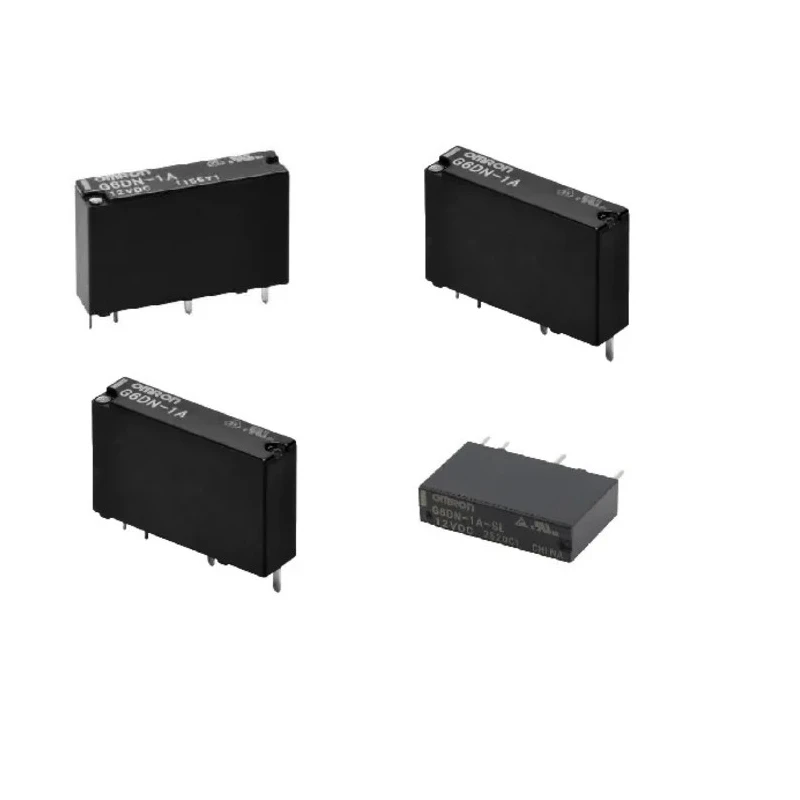

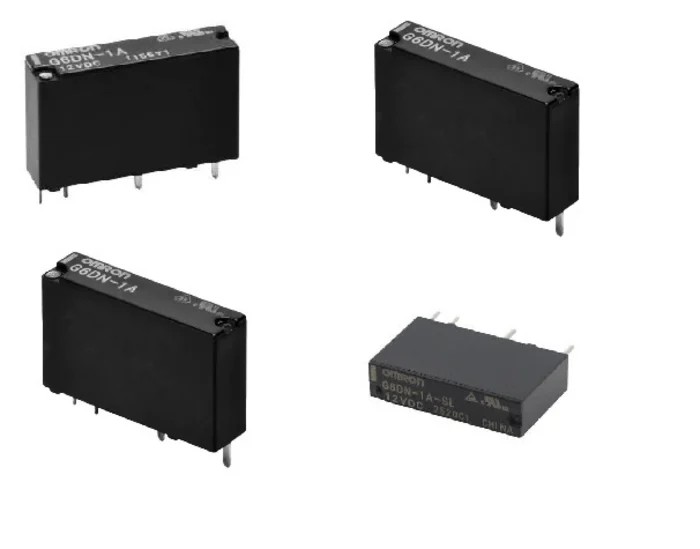

Omron PCB Relay 5V DC Coil 5A Switching Current SPST G6DN-1A-SL DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15mm |
| Length | 50mm |
| Model | G6DN-1A-SL DC5 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6DN |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 227Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 110mW |
Key Features
- The coil voltage is 5V DC with a coil resistance of 227 ohms.
- Switching current capacity reaches up to 5 amperes for effective circuit control.
- Single pole single throw (SPST) contact configuration ensures precise switching.
- Compact dimensions of 50mm length, 10mm width, and 15mm height.
- Silver alloy contact material provides high contact reliability and low resistance.
- Suitable for operating temperature range from -40°C to 70°C.
- Equipped with screw terminal type for secure mounting on PCBs.
- Low coil power consumption of 110mW supports energy efficiency.
Product Description
Omron G6DN-1A-SL DC5 PCB Relay features a 5V DC coil voltage and supports a switching current of 5A with SPST (Single Pole Single Throw) contact configuration. This slim power relay series offers high switching capacity combined with high contact reliability designed for low power consumption applications.
The relay has a coil resistance of 227 ohms and coil power rating of 110mW which makes it energy-efficient and ideal for PCB mount installations with screw terminals. The silver alloy contact material ensures excellent electrical performance and durability. It operates reliably within a temperature range of -40°C to 70°C.
Its compact size of 50mm length, 10mm width, and 15mm height makes it well-suited for constrained electronic equipment layouts. The device is fully RoHS compliant, supporting environmentally responsible manufacturing standards.
Typical applications include industrial automation controls, electrical circuits requiring reliable switching, signal conditioning, and various power relay usages in manufacturing and commercial equipment.
The relay employs a single-pole single-throw contact system for straightforward switching. Coil power consumption is minimized to 110 milliwatts driving improved energy efficiency. Contact material of silver alloy improves longevity and ensures low contact resistance of 100 milliohms.
Mounting on printed circuit boards is facilitated by screw terminal connection for secure installation. Suitable for both AC voltage up to 240V and DC voltage up to 60V switching applications.
Omron's G6DN series power relay is a versatile and reliable component recommended for demanding industrial, water treatment, manufacturing, and control system environments. It can be integrated into a wide range of electronic equipment requiring dependable relay switching functionality.
Explore a broad range of industrial electrical components at EnvMart to enhance your automation and control system designs with precision and quality assured parts.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
It supports a maximum switching current of 5A.
This relay features a single pole single throw (SPST) contact configuration.
The dimensions are 50mm in length, 10mm in width, and 15mm in height.
The coil resistance is 227 ohms.
It operates within a temperature range of -40°C to 70°C.
It is equipped with screw terminals for secure mounting on PCBs.
The contact material is silver alloy, which provides high contact reliability.
The contact resistance is 100 milliohms (100mΩ).
The coil power consumption is 110 milliwatts (110mW).
It can switch AC voltage up to 240V and DC voltage up to 60V.
Yes, it is fully RoHS compliant, supporting environmentally responsible manufacturing standards.
