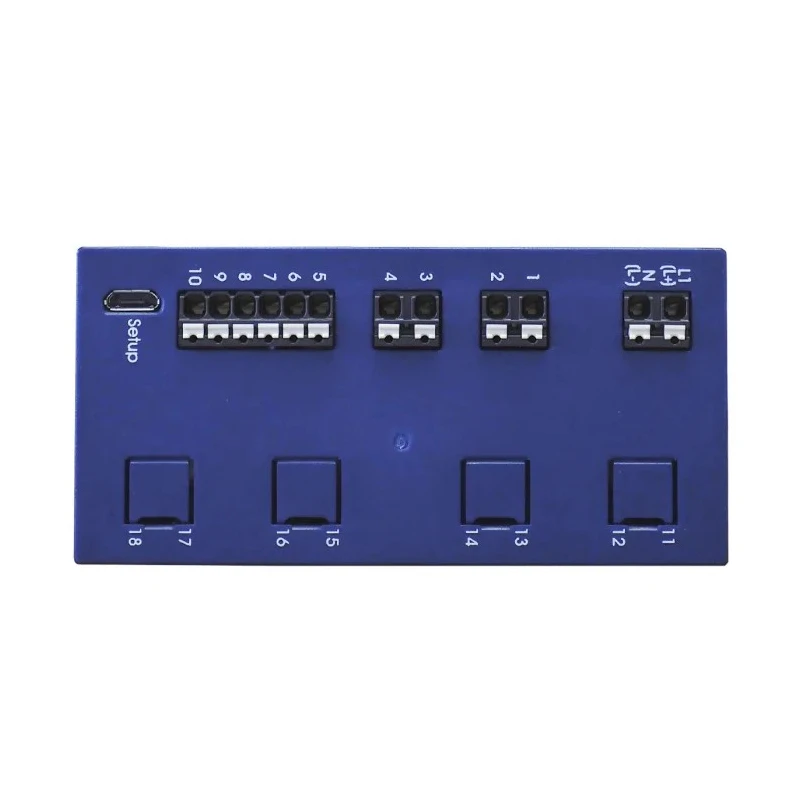

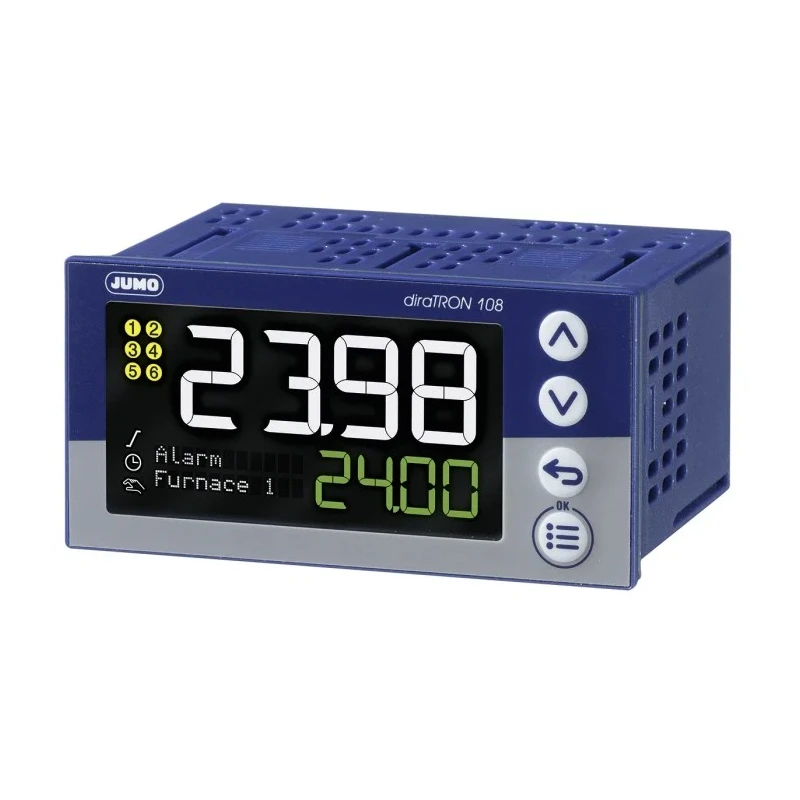

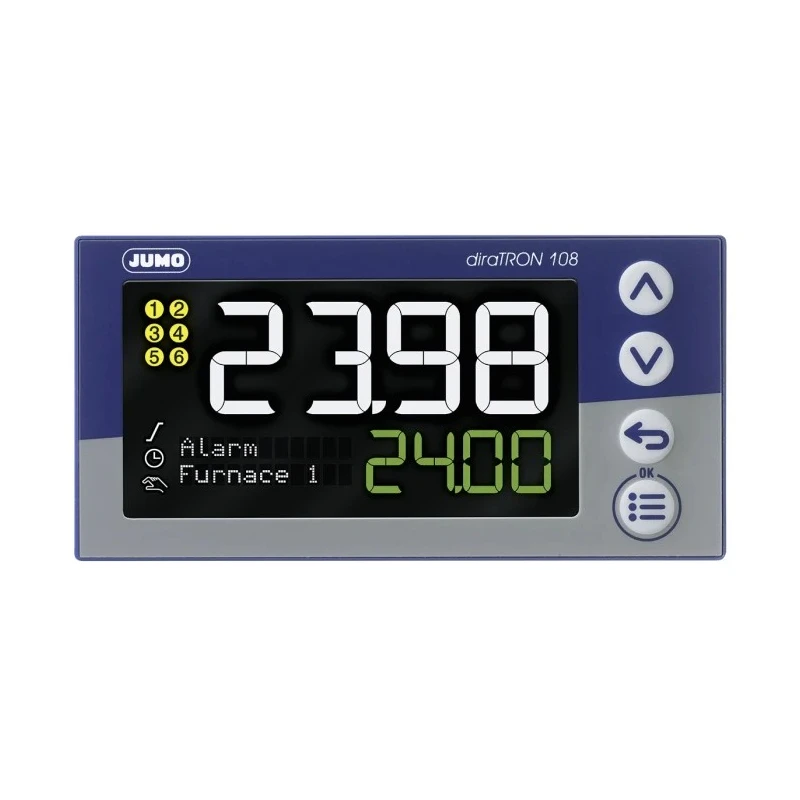

Jumo diraTRON Panel Mount PID Temperature Controller 3 Input 3 Output 2 Relay 240V ac 702113/8-0300-23/000
Specifications
| Country of Origin | Germany |
|---|---|
| Display Type | Segment |
| Brand | Jumo |
| Length | 96mm |
| Model | 702113/8-0300-23/000 |
| IP Rating | IP65, IP20 |
| Mount Type | Panel Mount |
| Number of inputs | 3 |
| Output type | 2 Relay |
| Series | diraTRON |
| Input Type | Analogue, Digital |
| Maximum Operating Temperature | 55°C |
| Control Type | PID Controller |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 3 |
| Terminal type | Spring Cage Terminal |
| Maximum Voltage | 230V |
| Maximum Supply Voltage | 240V ac |
| Digital Comms | RS485 (Modbus RTU as slave) |
| Panel Depth | 65mm |
Key Features
- Equipped with PID control type for precise temperature management.
- Supports analogue and digital inputs with spring cage terminal connections.
- Includes digital communication support with RS485 (Modbus RTU as slave).
- Operating temperature range from -10°C to 55°C with IP65 and IP20 rating.
- Panel mount design with 96mm length and 65mm panel depth.
- Features segment display type for clear parameter visualization.
- Built-in advanced functions such as autotuning, ramp, timer, and setpoint changeover.
- Suitable for industrial control of temperatures, pressures, and other process variables.
Product Description
Jumo 702113/8-0300-23/000 is a high-precision diraTRON series panel mount PID temperature controller designed for industrial and process control applications. It supports 3 inputs and 3 outputs with 2 relay outputs, operating on a 240V AC supply voltage, suitable for controlling temperature, pressure, and other process variables with high accuracy.
This controller includes advanced features such as autotuning, setpoint changeover with 4 setpoints, ramp and timer functions, as well as 4 limit value monitoring options, providing versatile control solutions. Connectivity is enhanced through RS485 communication supporting Modbus RTU as a slave device, allowing integration into automation systems.
The device is constructed with spring cage terminal types ensuring secure and reliable wiring, and features a segment display for straightforward reading of status and measurement parameters. It is panel-mountable with a length of 96mm and a panel depth of 65mm. The controller is rated with IP65 for panel front protection and IP20 for rear, enabling use in challenging industrial environments.
Designed to meet various standards including c UL US, CAN/CSA-22.2 No. 61010-1, EN 61010-1, EN 61326-1 (EMC), UL 61010-1, and DIN EN 60529, this controller ensures compliance and safety for demanding applications. Manufactured in Germany, this product guarantees top-quality performance and durability suited for laboratory, manufacturing, HVAC, water treatment, and other industrial sectors.
Equipped with PID control for precise temperature management. Supports both analogue and digital inputs with spring cage terminals. Digital communication via RS485 with Modbus RTU slave functionality. Wide operating temperature range and robust IP65/IP20 protection.
Advanced control features including autotuning, ramp, timer, and multiple setpoints. Compact panel mount design with standard industry dimensions. Suitable for rigorous industrial applications in process control. Explore more reliable Temperature Controllers and industrial automation products at EnvMart for your process control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 55°C.
This unit supports 3 inputs and 3 outputs, including 2 relay outputs.
It features a segment display type for clear visualization of parameters.
The controller has an IP65 rating for the front panel and IP20 for the rear, providing protection suitable for industrial environments.
It operates on a maximum supply voltage of 240V AC.
Yes, it supports digital communication via RS485 with Modbus RTU as a slave device.
The panel mount dimensions are 96mm in length and 65mm in depth.
It accepts both analogue and digital inputs.
It includes advanced functions such as autotuning, ramp, timer, and setpoint changeover with 4 setpoints.
The minimum operating temperature is -10°C.
This product is manufactured in Germany.
It uses spring cage terminal connections for secure wiring.
