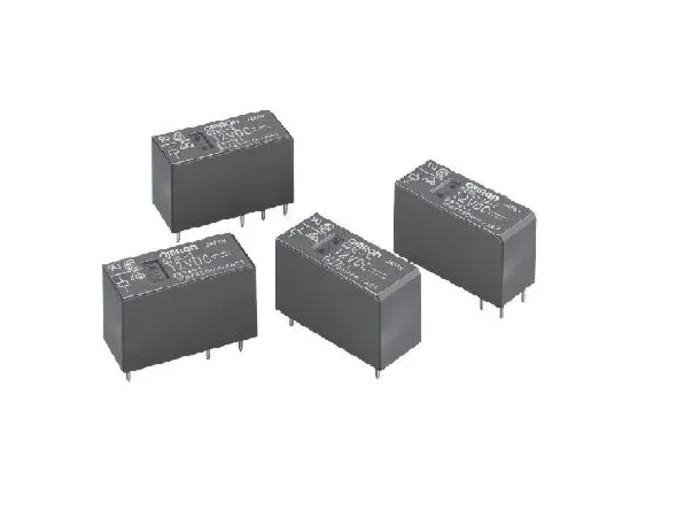

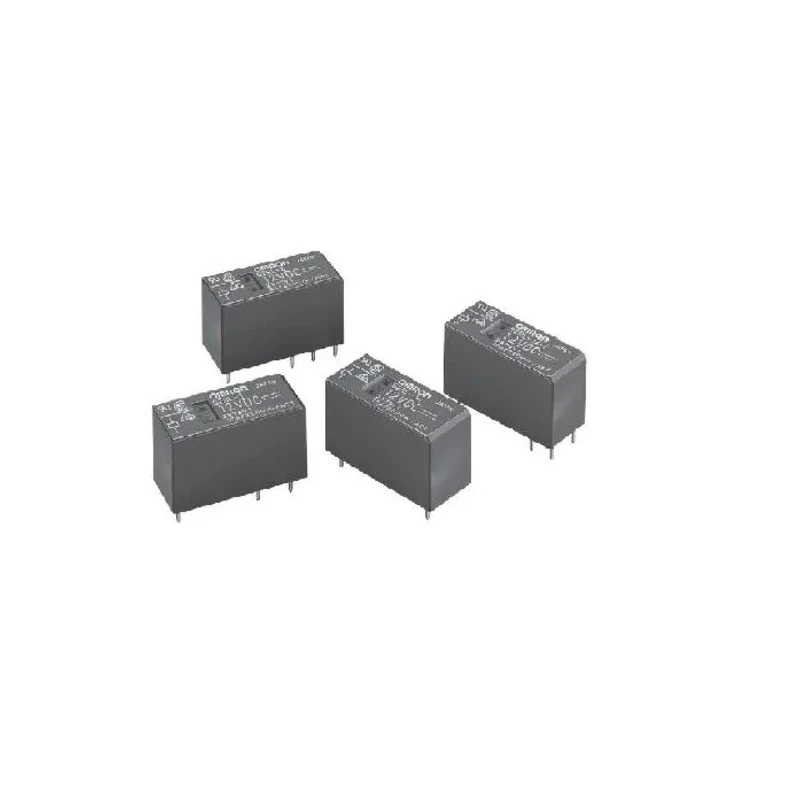

Omron PCB Power Relay 5V DC Coil 1A Switching Current SPST Screw Terminal G2RL-2A DC5
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 15mm |
| Length | 50mm |
| Model | G2RL-2A DC5 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2RL |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 62.5Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 400mW |
Key Features
- Compact design suitable for PCB mounting with screw terminals.
- Coil resistance is 62.5 ohms with coil power consumption of 400mW.
- Operates reliably between -40°C and 70°C ambient temperature.
- Switching voltage supports up to 60V DC and 240V AC.
- Contact material is silver alloy ensuring low contact resistance of 100mΩ.
- Complies with RoHS standards for environmental safety.
- Designed for high ambient temperature environments and high current switching applications.
Product Description
Omron G2RL-2A DC5 PCB Power Relay is a compact, high performance power relay designed for efficient high current load switching in industrial and electrical applications. It features a 5V DC coil voltage and a 1A switching current capability with SPST (Single Pole Single Throw) contact configuration mounted on PCB with screw terminals for secure connection.
The relay coil has a resistance of 62.5 ohms and consumes 400mW power, optimized with voltage holding and pulse width modulation control to reduce power consumption. Its operational temperature range from -40°C to 70°C suits harsh environments requiring reliable switching performance.
Supporting switching voltages up to 60V DC and 240V AC, the relay contacts are composed of silver alloy material, providing excellent conductivity and a low contact resistance of 100mΩ to minimize energy loss. Its compact footprint measures 50mm in length, 10mm in width, and 15mm in height, making it ideal for PCB mounting in constrained spaces.
RoHS compliant, the product aligns with environmental and safety standards. Its robust design enables use in industrial, automation, electrical control systems, and other manufacturing equipment requiring dependable power relay functions.
Compact PCB mount power relay with screw terminal connections. 5V DC coil voltage with low power consumption of 400mW. SPST contact configuration with 1A switching current capacity. Operational temperature range from -40°C to 70°C.
Switching voltage up to 60V DC and 240V AC. Silver alloy contacts ensure low contact resistance of 100mΩ. Complies with RoHS environmental standards. Ideal for industrial, automation, and electrical applications. Explore high quality Power Relays and related electrical components in the Electronics & Electricals category at EnvMart for your automation and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 5V DC.
It supports a maximum switching voltage of 60V DC and 240V AC.
This relay has a switching current capacity of 1A.
It uses a Single Pole Single Throw (SPST) contact configuration.
The operational temperature range is from -40°C to 70°C.
The contacts are made of silver alloy, which ensures low contact resistance.
The relay measures 15mm in height, 10mm in width, and 50mm in length.
The coil resistance is 62.5 ohms.
The relay coil consumes 400mW of power.
Yes, it complies with RoHS standards for environmental safety.
It features screw terminals for secure connections.
The relay is manufactured in Malaysia.
