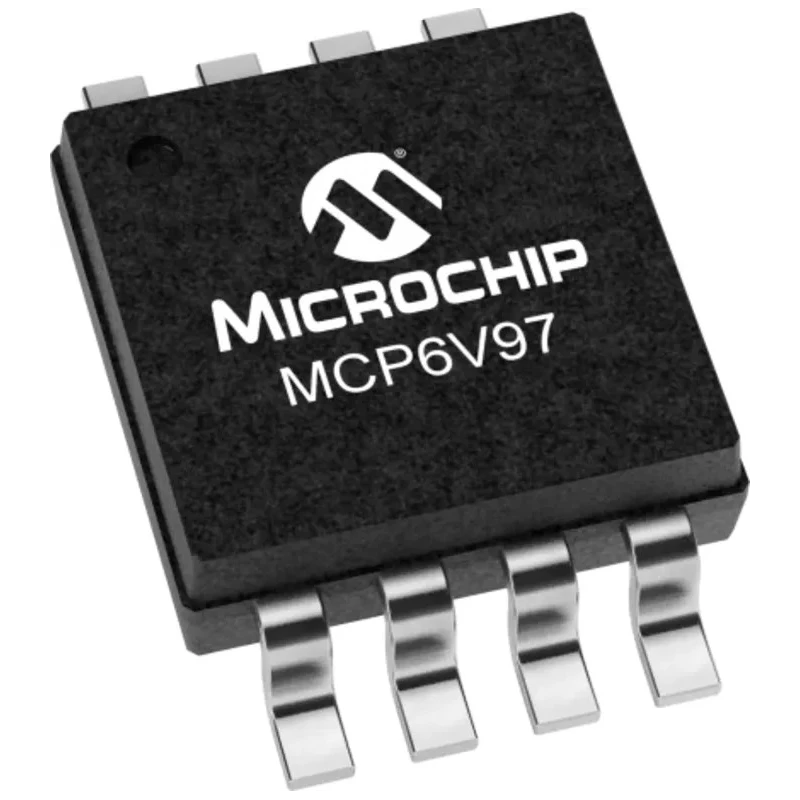

Microchip Operational Amplifier 10 MHz 8-Pin MSOP MCP6V97-E/MS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.1mm |
| Length | 3mm |
| Model | MCP6V97-E/MS |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP6V97 |
| Output Current | 30mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Minimum Supply Voltage | 5.5V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | ±2 pA |
| Slew Rate | 9.5V/μs |
| Input Offset Current | ±100 pA |
Key Features
- The device is dual-channel with a pin count of 8.
- It operates at a fixed supply voltage of 5.5V.
- The input bias current is ultra-low at ±2 pA.
- It has a low input offset voltage of 25 μV and offset drift of 150 nV/°C.
- The amplifier provides a slew rate of 9.5 V/μs for fast response.
- It supports an output current of up to 30 mA.
- The device is RoHS compliant and operates from -40°C to 125°C.
- Compact MSOP package measures 3 mm x 3 mm x 1.1 mm.
Product Description
Microchip MCP6V97-E/MS operational amplifier is a highly precise dual-channel op amp designed for demanding industrial and electronic applications. Featuring a gain bandwidth product of 10 MHz, this device offers excellent frequency response and stability in a compact 8-pin MSOP surface-mount package.
Operating at a fixed 5.5V supply voltage, the amplifier ensures low quiescent current operation, making it suitable for power-sensitive designs. Its zero-drift architectural design corrects input offset voltage and drift, providing an extraordinarily low input offset voltage of 25 μV and very low offset drift of 150 nV per degree Celsius, which is critical for precision measurement and control systems.
The input bias current is exceptionally low at ±2 pA, reducing errors in high-impedance sensor circuits. The device also achieves a high slew rate of 9.5 V/μs, enabling rapid signal changes without distortion, and supports output currents up to 30 mA, enough for driving moderate loads directly.
The small footprint MSOP package (3 mm length, 3 mm width, and 1.1 mm height) allows dense PCB layouts in compact electronic assemblies. The device covers a wide operating temperature range from -40°C to 125°C, suitable for industrial and automotive environments, although it is not automotive standard certified.
This operational amplifier is RoHS compliant, meeting environmental safety criteria for global markets. The MCP6V97 series is widely used in instrumentation, sensor interfaces, industrial automation, and precision analog signal conditioning applications.
The dual-channel capability enables simultaneous processing of two independent signals. Low offset and drift enhances measurement accuracy in sensor and instrumentation circuits. Superior common-mode rejection ratio (CMRR) and power supply rejection ratio (PSRR) improve noise immunity.
Compact MSOP packaging is ideal for space-constrained devices. Wide temperature and supply voltage tolerance increase design flexibility. Explore our comprehensive range of semiconductors and Operational Amplifiers to find solutions tailored to your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the MCP6V97-E/MS is 10 MHz, providing excellent frequency response and stability for various applications.
This operational amplifier features an ultra-low input bias current of ±2 pA, which minimizes errors in high-impedance sensor circuits.
It supports an output current of up to 30 mA, allowing it to drive moderate loads directly.
The MSOP package measures 3 mm in length, 3 mm in width, and 1.1 mm in height, making it suitable for compact PCB layouts.
It operates within a wide temperature range from -40°C to 125°C, suitable for industrial and automotive environments.
The MCP6V97-E/MS has a slew rate of 9.5 V/μs, enabling rapid signal changes without distortion.
Yes, the operational amplifier is RoHS compliant, meeting environmental safety criteria for global markets.
This model is a dual-channel operational amplifier, allowing for the simultaneous processing of two independent signals.
The input offset voltage is exceptionally low at 25 μV, which is critical for precision measurement applications.
This operational amplifier has a pin count of 8, suitable for various electronic designs.
It features a surface mount type, which is ideal for space-constrained applications.
The input offset drift is 150 nV/°C, enhancing measurement accuracy in sensor and instrumentation circuits.
